ซีรีส์ GOT2000
Human-Machine Interfaces (HMIs)
GOT2000 SERIES

The GOT continues to impress with solutions that fulfill all demands.

The GOT2000 boasts advanced functionality, acts as a seamless gateway to other industrial automation devices, all while increasing productivity and efficiency.


ข้อมูลทั่วไป

About GOT

GOT is the abbreviation of "Graphic Operation Terminal".
Switches and lamps had been conventionally attached to an operation panel as hardware. However, by using the screen design software, those can be created, and displayed and operated on the monitor screen of the GOT, the touch-panel HMI.


Designed to meet your industrial automation needs


·         Innovative display features in simply designed body

·         Enhanced lineup with open frame models

·         GOT Mobile & GOT Drive expand possibilities of factory systems

Advantages of the GOT

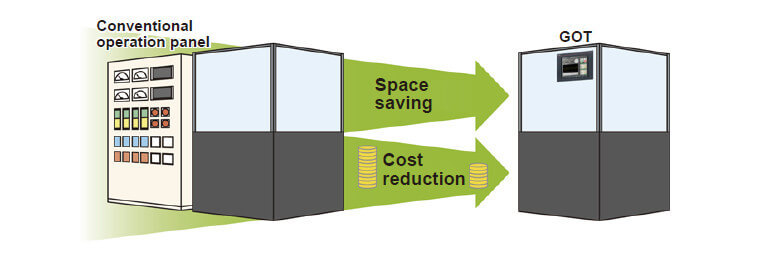

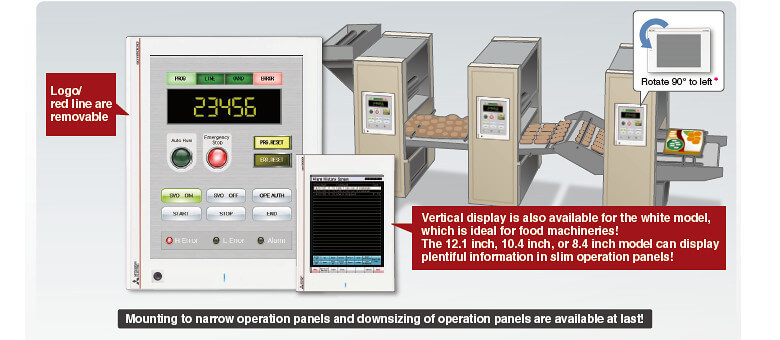

Downsizing the operation panel

Since switches and lamps are created using software, the number of components attached to the operation panel as hardware can be reduced and the panel itself can be downsized.

Cutting costs for wiring

Wiring between components inside the operation panel is replaced with screen design by software, eliminating the need for the wiring, which requires a large amount of time and cost.

Standardizing operation panels

Even though required specifications changes, you just need to change settings using software. Therefore, operation panels can be standardized.

Adding extra values as an HMI (Human Machine Interface)

The GOT can easily display graphics, text, and alarms in addition to switches and lamps. Therefore, the extra value of your entire equipment can be improved.

High-speed processing

Easily operate the screens even during high-load processing, such as logging, script, alarm or device data transfer. (GT16 -> GT27: monitor performance is 2-foldor higher)



Increased memory capacity

Design screens without worrying about the data capacity. The product data compression technology allows up to 128MB*2 of actual space to be used without an SD card*1. (GT27)

*1 An SD card may be required depending on the project.

*2 80MB on GT2705.


Enhanced lineup

The new GOT2000 is suitable for applications in any industry. The GT27, GT25 white model provides an additional color option, and the flush frame without the USB port can be cleaned very easily. The GOT can be installed vertically for extra flexibility when installed in confined spaces.


* GT21 models should be rotated by 90 degrees to the right.



Intuitive user experience

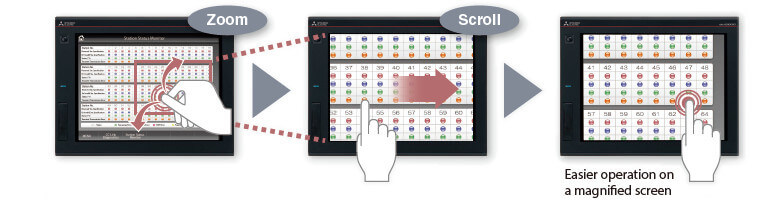

Screen gestures  * GT27 only

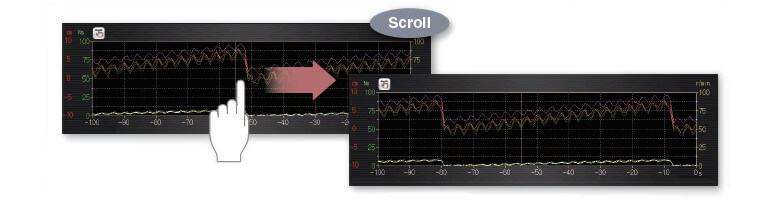

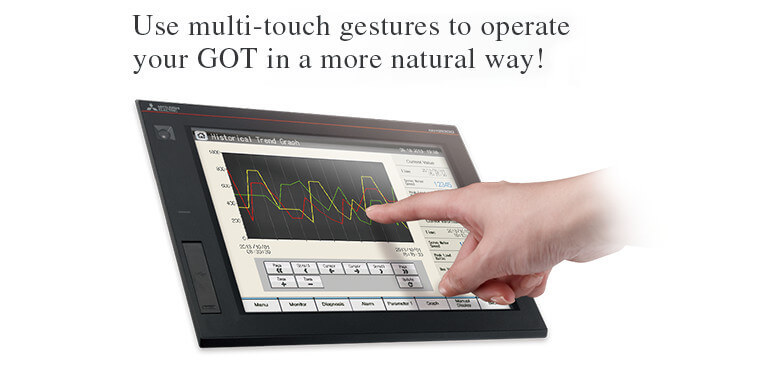

Zoom in to easily operate small and hard to reach switches. After zooming in, scroll the display to show the area you want to operate.


Object gestures  * GT27 only

Specify an object to be enlarged, scrolled or flicked.
< Target objects >
• Historical data list display    • Alarm display (user)    • Alarm display (system)
• Simple alarm display    • Historical trend graph    • Document display



2-point press operation prevents incorrect operations  * GT27 only

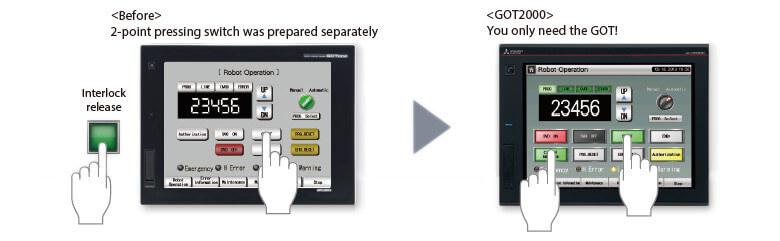

Prevent accidental operations by designating two pressing points for critical operations.


* Cautions apply to the arrangement of the 2-point pressing switch.




รายการผลิตภัณฑ์

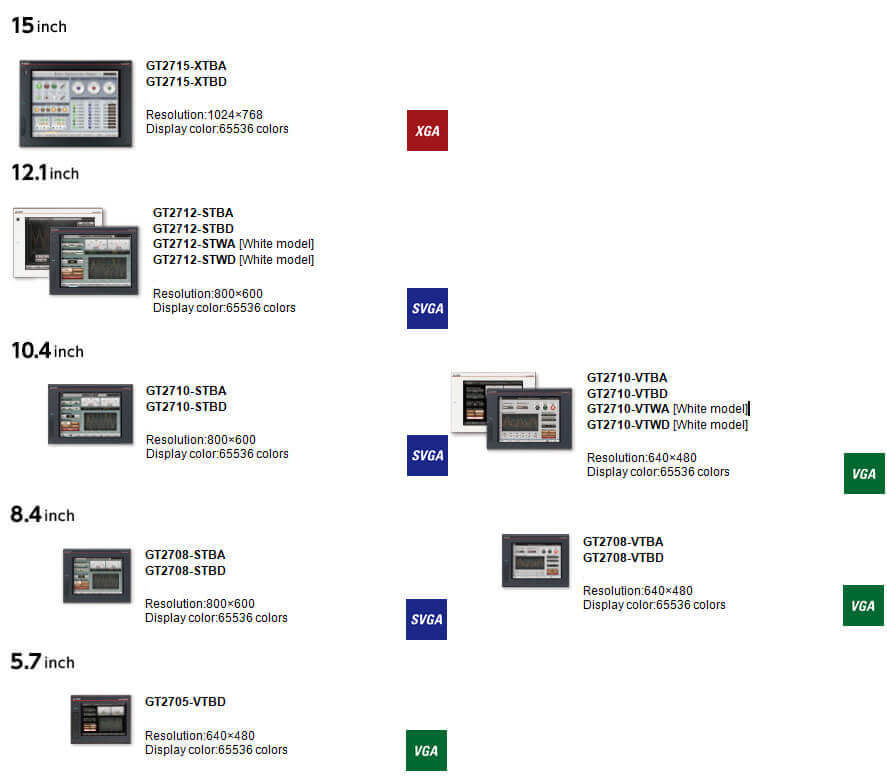

GT27 Model

Top performance model with gesture screen operation and options for multimedia, network, and I/O connectivity.
User memory capacity: 57MB (Actual storage data size: 128MB)
Ethernet, Serial, USB host, and USB device ports



*1 The CC-Link IE Field Network communication unit and GOT set is also available.

*2 Not supported by 5.7 inch model.







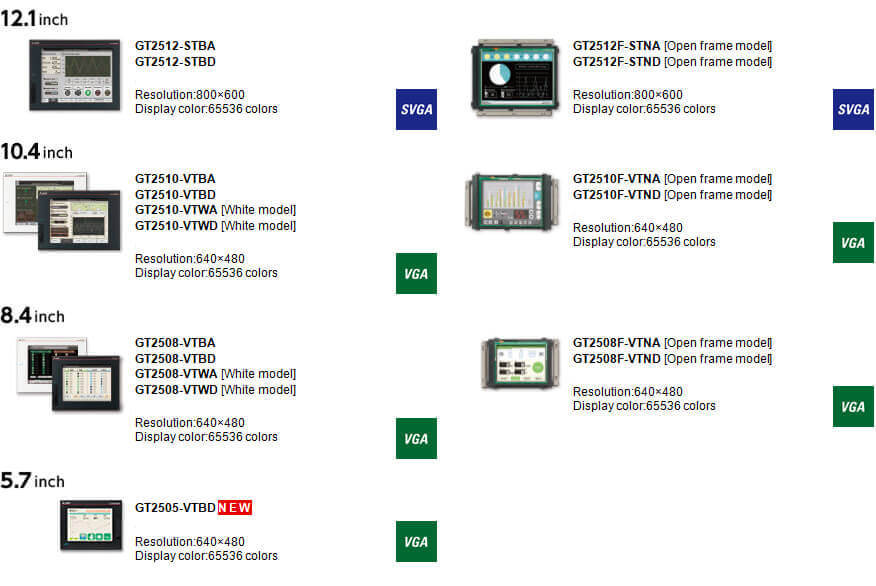

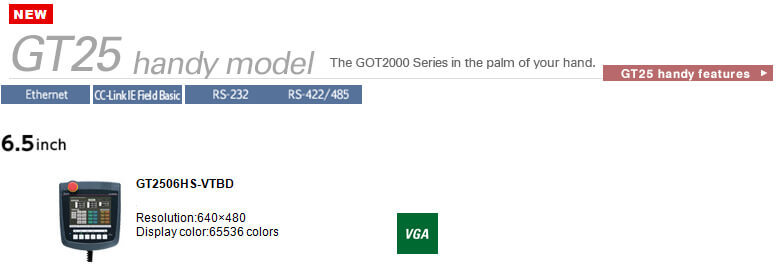

Balanced performance and cost-effective models with expansion capability for network communications.
User memory capacity: 32MB (Actual storage data size: 80MB)
Ethernet, Serial, USB host, and USB device ports



*1 The CC-Link IE Field Network communication unit and GOT set is also available.

*2 Not supported by 5.7 inch model.

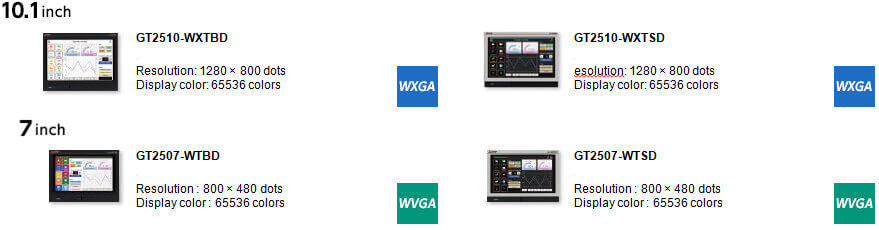

Advanced, cost efficient 7” and 10.1” widescreen models with high connectivity and visibility.
User Memory capacity: 32MB (Actual storage data size: 128MB)
2 Ethernet ports, Serial, USB host, and USB device ports










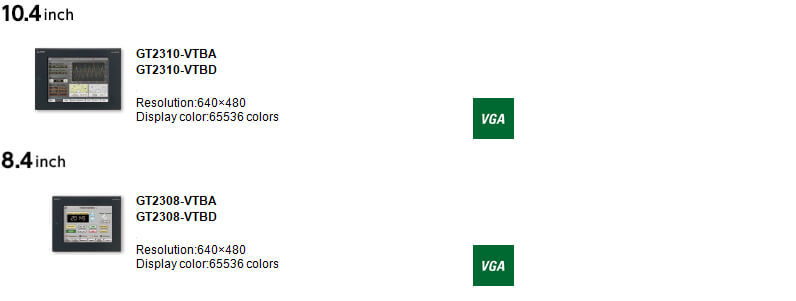

Basic, cost-effective models for virtually any application.
User memory capacity: 9MB
Ethernet, Serial, USB host, and USB device ports

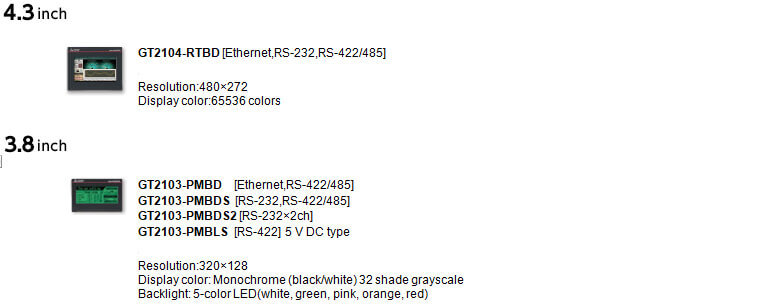

Compact type HMIs with small screen size and TFT monochrome display fit a variety of industries and applications.
User memory capacity: 3MB
Ethernet, Serial, USB device ports and SD card option

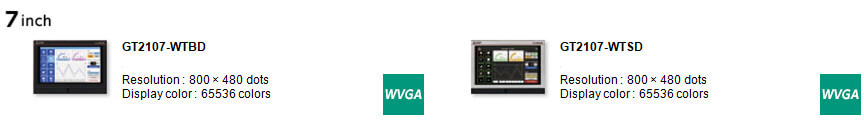

Compact and cost effective industrial 7" wide HMIs with enhanced functionality, improved visualization graphics for mid-size and small applications.
User memory capacity: 15MB
Ethernet, Serial, USB host and device ports and a built-in SD card option

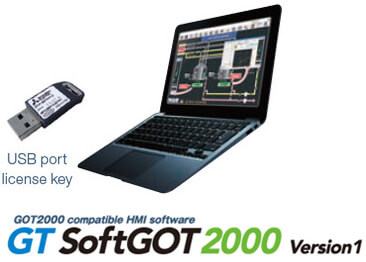

GT SoftGOT2000: Turn your personal computer into a GOT!


GT SoftGOT2000 is an HMI software that allows GOT2000 functions to operate on a personal computer or panel computer. Various industrial devices can be connected and monitored.

Resolution: 640 to 1920 × 480 to 1200
Display color: 65536 colors

* GT SoftGOT2000 Version1 is included with GT Works3.
A separate license key must be mounted during use.

*  For the details of GT SoftGOT2000 functions, please refer to "GT SoftGOT2000".



MELSOFT GTWorks3: Professional Designs in Just a Few Clicks




You can design GOT widescreens with GT Works3, familiar software that can be commonly used for the GOT2000 Series.

* For the details of GT Works3 functions, please refer to "GT Works3".http://www.mitsubishielectric.com/fa/products/hmi/got/pmerit/sgt/index.html





ข้อมูลจำเพาะ

GOT2000 Series General Specifications

Model Number

GT27, GT25, GT23

GT21

Operating Ambient Temp. (*1)

0 to 55°C (*2)

0 to 55°C (horizontal installation), 0 to 50°C (vertical installation)

Storage Ambient Temperature

-20°C to 60°C

Operating Ambient Humidity

10 to 90%RH, no condensation

10 to 90%RH, no condensation (*2)

Storage Ambient Humidity

10 to 90%RH, no condensation

10 to 90%RH, no condensation (*2)

Vibration Resistance

Conforming to JIS B 3502 and IEC 61131-2

Frequency

Acceleration

Half Amplitude

Sweep Count

Under intermittent vibration

5 to 8.4Hz

-

3.5mm

10 times each in X, Y and Z directions

8.4 to 150Hz

9.8m/s²

-

Under continuous vibration

5 to 8.4Hz

-

1.75mm

-

8.4 to 150Hz

4.9m/s²

-

Impact Resistance

Compliant with JIS B 3502, IEC 61131-2 (147 m/s² (15G), 3 times each in X, Y and Z directions)

Operating Atmosphere (*6)

No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)

Operating Altitude (*3)

2000m (6562 ft) or less

Installation Location

Inside control panel

Overvoltage Category (*4)

II or less

Pollution Degree (*5)

2 or less

Cooling Method

Self-cooling

Grounding

Grounding with a ground resistance of 100Ω or less.
If impossible, connect the ground cable to the control panel.

Grounding with a ground resistance of 100Ω or less by using
a ground cable that has a cross-sectional area of 0.14 to
1.5 mm² (single wire), 0.14 to 1.0 mm² (stranded wire), or 0.25 to 0.5 mm² (rod terminal with an insulation sleeve). If impossible, connect the ground cable to the control panel. (*7)

Notes:

1. The operating ambient temperature includes the temperature inside the enclosure of the control panel to which the GOT is installed.

2. (GT27, GT25) When any of the following units is mounted, the maximum operating ambient temperature must be 5 °C lower than the one described in the general specifications: multimedia unit
(GT27-MMR-Z), MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13), CC-Link communication unit (GT15-J61BT13);(GT23, GT21) If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40 °C.

3. Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.

4. This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.

5. This indicates the occurrence rate of conductive material in an environment where a device is used. Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.

6. (GT25, GT27 only) Some models have ANSI/ISA 12.12.01 approval for use in Class I, Division 2 (ANSI/ISA 12.12.01, C22.2 No.213-M1987) hazardous locations. For the details, please contact your local sales office.
5 VDC type does not require grounding.



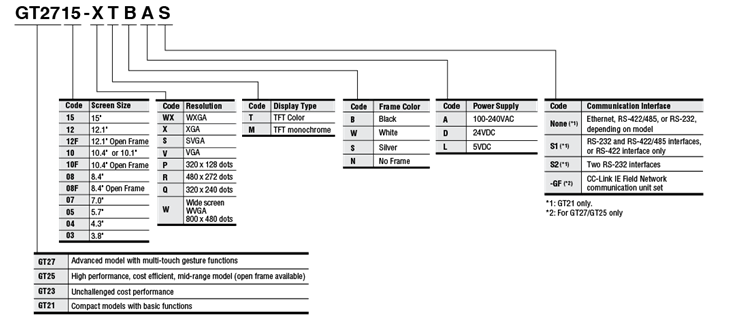

GT27 Base Units

Category

Model Number

Screen Size

Resolution

Display Type

Frame Color

Power Supply

GT2715

GT2715-XTBA

15"

XGA (1024 x 768)

TFT Color

Black

100-240VAC

GT2715-XTBD

24VDC

GT2712

GT2712-STBA

12.1"

SVGA (800 x 600)

Black

100-240VAC

GT2712-STBD

24VDC

GT2712-STWA

White

100-240VAC

GT2712-STWD

24VDC

GT2710

GT2710-STBA

10.4"

SVGA (800 x 600)

Black

100-240VAC

GT2710-STBD

24VDC

GT2710-VTBA

VGA (640 x 480)

100-240VAC

GT2710-VTBD

24VDC

GT2710-VTWA

White

100-240VAC

GT2710-VTWD

24VDC

GT2708

GT2708-STBA

8.4"

SVGA (800 x 600)

Black

100-240VAC

GT2708-STBD

24VDC

GT2708-VTBA

VGA (640 x 480)

100-240VAC

GT2708-VTBD

24VDC

GT2705

GT2705-VTBD

5.7"

VGA (640 x 480)

24VDC









GT27 GOT + CC-Link IE Field Network Communication Unit Sets

Category

Model Number

Screen Size

Resolution

Display Type

Frame Color

Power Supply

GT2715

GT2715-XTBA-GF

15"

XGA (1024 x 768)

TFT Color
65536 colors

Black

100-240VAC

GT2715-XTBD-GF

24VDC

GT2712

GT2712-STBA-GF

12.1"

SVGA (800 x 600)

Black

100-240VAC

GT2712-STBD-GF

24VDC

GT2712-STWA-GF

White

100-240VAC

GT2712-STWD-GF

24VDC

GT2710

GT2710-STBA-GF

10.4"

SVGA (800 x 600)

Black

100-240VAC

GT2710-STBD-GF

24VDC

GT2710-VTBA-GF

VGA (640 x 480)

100-240VAC

GT2710-VTBD-GF

24VDC

GT2710-VTWA-GF

White

100-240VAC

GT2710-VTWD-GF

24VDC

GT2708

GT2708-STBA-GF

8.4"

SVGA (800 x 600)

Black

100-240VAC

GT2708-STBD-GF

24VDC

GT2708-VTBA-GF

VGA (640 x 480)

100-240VAC

GT2708-VTBD-GF

24VDC

GT2705

GT2705-VTBD-GF

5.7"

VGA (640 x 480)

24VDC




 GT27 Power Supply Specifications





Model Number

GT2715-XTBA

GT2712-STBAGT2712-STWA

GT2710-STBAGT2710-VTBAGT2710-VTWA

GT2708-STBAGT2708-VTBA

GT2715-XTBD

GT2712-STBDGT2712-STWD

GT2710-STBDGT2710-VTBDGT2710-VTWD

GT2708-STBDGT2708-VTBD

GT2705-VTBD

Input Power Supply Voltage

100 to 240VAC (+10%, -15%)

24VDC (+25%, -20%)

Input Power Supply Frequency

50/60Hz ±5%

-

-

Power Consumption

Maximum Load

51W or less

44W or less

41W or less

41W or less

48W or less

45W or less

42W or less

39W or less

30W or less

Stand Alone

25W

19W

17W

15W

23W

15W

15W

13W

7W

Stand Alone w/ Backlight Off

10W

10W

10W

10W

8W

8W

8W

8W

5W

Inrush Current

40A or less (3ms, ambient temperature 25°C, maximum load)

60A or less (2ms, ambient temperature 25°C, maximum load)

5A or less (20ms, ambient temperature 25°C, maximum load)

69A or less
(1 ms, ambient temperature: 25°C, under the maximum load)

Permissible Instantaneous Failure Time

Within 20ms (100VAC or more)

Within 10ms

Noise Resistance

Noise voltage 1500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz

Noise voltage 500Vp-p, noise width 1μs by noise simulator with noise frequency 25 to 60Hz

Withstand Voltage

1500VAC for 1 minute between power supply terminal and ground

350VAC for 1 minute between power supply terminal and ground

Insulation Resistance

10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground)

Applicable Wire Size

0.75 to 2 [mm²]

Clamp Terminal

Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A

Tightening Torque (Terminal Block’s Terminal Screws)

0.5 to 0.8 [N·m]

Screen Size

Model

A

B

Remarks

15"

GT2715

383.5 (15.10)

282.5 (11.12)

Same dimensions as GT1695, GT1595

12.1"

GT2712

302 (11.89)

228 (8.98)

Same dimensions as GT1685, GT1585, A985GOT

10.4"

GT2710

289 (11.38)

200 (7.87)

Same dimensions as GT167_M, GT157_M, A97_MGOT

8.4"

GT2708

227 (8.94)

176 (6.93)

Same dimensions as GT1665, GT1565

5.7"

GT2705

153 (6.02)

121 (4.76)

Same dimensions as GT1655, GT155_, GT145_, GT115_, GT105_, F940GOT



GT27 Performance Specifications

Model Number

GT2715-XTBAGT2715-XTBD

GT2712-STBAGT2712-STBD

GT2712-STWAGT2712-STWD

GT2710-STBAGT2710-STBD

GT2710-VTBAGT2710-VTBD

GT2710-VTWAGT2710-VTWD

GT2708-STBAGT2708-STBD

GT2708-VTBAGT2708-VTBD

GT2705-VTBD

Display Section
(*1, *2)

Type

TFT color LCD

Screen Size

15"

12.1"

10.4"

8.4"

5.7"

Resolution (Dots)

1024 x 768 XGA

800 x 600 SVGA

640 x 480 VGA

800 x 600 SVGA

640 x 480 VGA

Display Size
(W x H) mm

304.1 x 228.1

246.0 x 184.5

211.2 x 158.4

170.9 x 128.2

115.2 x 86.4

Number of Characters

16-dot standard font: 64 chars. x 48 lines (2-byte) 12-dot standard font: 85 chars. x 64 lines (2-byte)

16-dot standard font: 50 chars. x 37 lines (2-byte)
12-dot standard font: 66 chars. x 50 lines (2-byte)

16-dot standard font: 40 chars. x 30 lines (2-byte) 12-dot standard font: 53 chars. x 40 lines (2-byte)

16-dot standard font:



50 chars. x 37 lines (2-byte) 12-dot standard font:



66 chars. x 50 lines (2-byte

16-dot standard font:



40 chars. x 30 lines (2-byte)

12-dot standard font:



53 chars. x 40 lines (2-byte)

Display Colors

65536 colors

Intensity Adjustment

32-level adjustment

Backlight

Type

LED (not replaceable)

Life

Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) (*4)

Touch Panel (*3)

Type

Analog resistive film

Key Size (Dots)

Minimum 2 x 2 dots (per key) (*7)

Simultaneous Press

Maximum 2 points

Life

1 million times or more (operating force 0.98N or less)

Panel Color

Black

White

Black

White

Black

Human Sensor

Detection Distance (m)

1m

-

Detection Temperature

Temperature difference between human body and ambient air: 4°C or higher

-

Memory

User Memory Capacity

Memory for storage (ROM): 57MB, Memory for operation (RAM): 128MB

Memory for storage (ROM): 32MB, Memory for operation (RAM): 80MB

Life (No. of Writings)

100000 times

Internal Clock Accuracy

±90 sec/month (ambient temperature 25°C)

Battery

Type

GT11-50BAT lithium battery

Life

Approx. 5 years (ambient temperature 25°C)

Built-in Interface

RS-232

1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male)

RS-422/485

1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female)

Ethernet

1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack)

USB (Host)

2ch (front face/rear face)

1ch (rear face)

2ch (front face/rear face)

1ch (rear face)

2ch (front face/rear face)

Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A

USB (Device)

1ch (front face)

1ch (rear face)

1ch (front face)

1ch (rear face)

1ch (front face)

Maximum transfer speed: High-Speed 480Mbps Connector shape: USB Mini-B

SD Card

1ch SDHC compliant (maximum 32GB)

Extension Interface (*6)

For communication unit/option unit mounting

Auxiliary Extension I/F

For option unit mounting

-

Side Interface

For communication unit mounting

Buzzer Output

Single tone (tone, tone length adjustable)

Power LED

Emission color: 2 colors (blue, orange)

Protective Construction

Front: IP67F (*5,*8) In control panel: IP2X

External Dimensions
(W x H x D) mm

397 x 300 x 60

316 x 246 x 52

303 x 218 x 52

241 x 194 x 52

167 x 139 x 60

Panel Cutout (W x H) mm

383.5 x 282.5

302 x 228

289 x 200

227 x 176

153 x 121

Weight (kg)
Excludes Mounting Brackets

4.5

2.4

2.1

1.5

1.0

Applicable Software Package

GT Works3 Version1.112S or later

GT Works3 Version1.100E or later

GT Works3 Version1.130L or later

Notes:

1. As a characteristic of liquid crystal display panels, bright dots (always lit) and dark dots (never lit) may appear on the panel. Since liquid crystal display panels comprise a great number of display elements, the appearance of bright and dark dots cannot be reduced to zero. Individual differences in liquid crystal display panels may cause differences in color, uneven brightness and flickering. Note that these phenomena are characteristics of liquid crystal display panels and it does not mean the products are defective or damaged.

2. Flickering may occur due to vibration, shock, or the display colors.

3. When a stylus is used, the touch panel has a life of 100 thousand touches. The stylus must satisfy the following specifications: • Material: polyacetal resin • Tip radius: 0.8 mm or more

4. To prevent the display section from burning in and lengthen the backlight life, enable the screen save function and turn off the backlight.

5. To conform to IP67F, close the USB environmental protection cover by pushing the [PUSH] mark firmly. (To conform to IP2X, open the USB environmental protection cover.) Note that the structure does not guarantee protection in all users’ environments. The GOT may not be used in certain environments where it is subjected to splashing oil or chemicals for a long period of time or soaked in oil mist.

6. When using a GT2705 with multiple devices such as extension units, a barcode reader, and an RFID controller, the total amount of current must be within the maximum amount of current supplied by the GT2705. For the details, please refer to an appropriate GOT2000 Series manual.

7. The minimum size of a key that can be arranged. To ensure safe use of the product, the following settings are recommended. • Key size: 16 x 16 dots or larger • Distance between keys: 16 dots or more

8. The suffix “F” of IP67F is a symbol that indicates protection rate against oil. It is described in the Appendix of Japanese Industrial Standard JIS C 0920.

โปรแกรมเลือกรุ่น

GOT2000 series comparison


More Details

เพิ่มเติม

iQ Monozukuri ANDON





More Details



GOT2000 series comparison


More Details

โซลูชั่นที่เกี่ยวข้อง
Page Top
