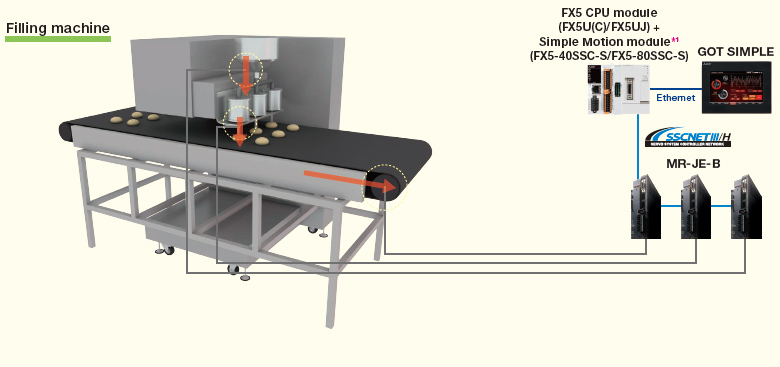

Point Use cam control to adjust speed for raising nozzle according to height of the work piece being filled.
Point Compatible with fiber optic network “SSCNET III/H”, which accelerates system responsiveness.
*1 Connection with FX5UC requires FX5-CNV-IFC or FX5-C1PS-5V.
*1 Connection with FX5UC requires FX5-CNV-IFC or FX5-C1PS-5V.

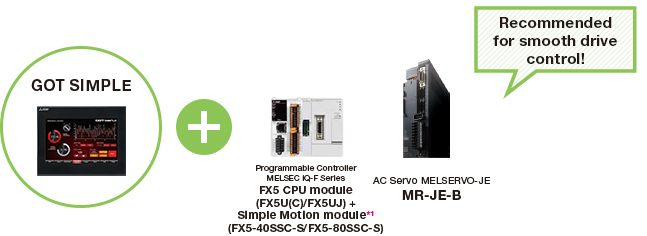

Recommended functions for each application
FX5 CPU module
plus
Simple Motion module
plus
MR-JE-B
Position, speed, torque control
Smoothly change to torque control mode from position/speed control mode without a stop or a sudden change in speed and torque, and thus reduce load to a machine. This function is ideal for applications where control switches from position to torque such as tightening and press-fit control or insertion of a work piece, and cap or screw tightening.
Deterministic and synchronized communication

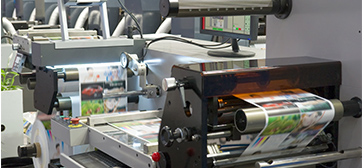

Complete deterministic and synchronized communication is achieved with SSCNET III/H, offering technical advantages in machines such as printing and food processing machines that require synchronous accuracy.

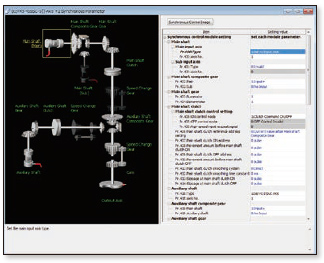

Synchronous control without program
Just set parameters using software to easily realize synchronous control instead of controlling mechanically with physical gears, shafts, speed change gears or cams.
SSCNET III/H allows configuration of a multi-axis synchronous control system even for unwinders and rewinders with multiple axes. For machines with a machining axis, further high-level synchronous control system is possible by using cam control and advanced synchronous control.

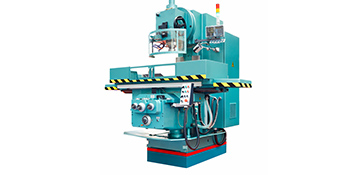

Simplified machine tools
In positioning operation of XY table, the workpiece can be processed with high quality by using machine resonance suppression filter that suppresses machine vibration and lost motion compensation function that suppresses quadrant protrusion.
