Concept Features Configuration tool Application examples System configuration Working distance External dimensions
External dimensions

External dimensions

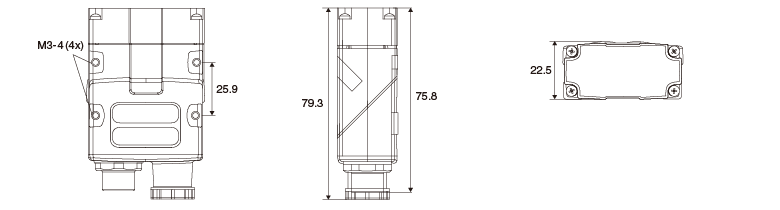

CF26-SR

(Unit: mm)

Straight-configuration

CF26-SR

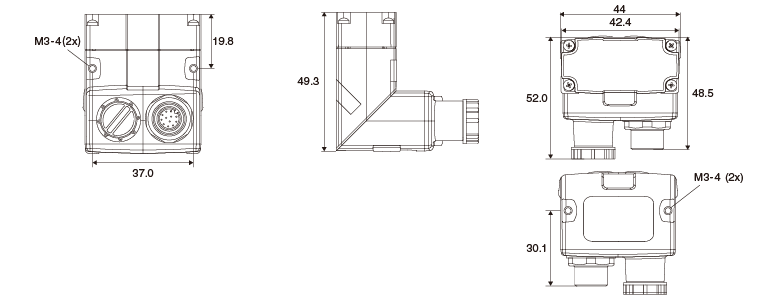

Right-angle configuration

CF26-SR

page top

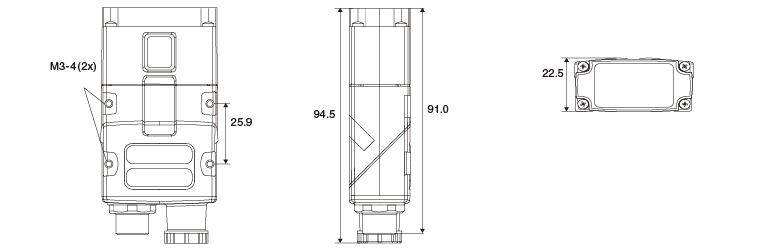

CF26-LR

(Unit: mm)

Straight-configuration

CF26-LR

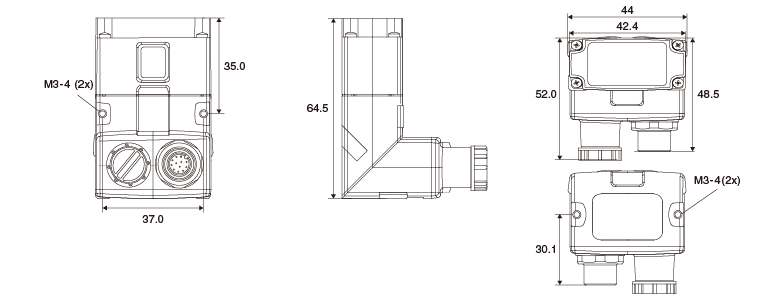

Right-angle configuration

CF26-LR

page top

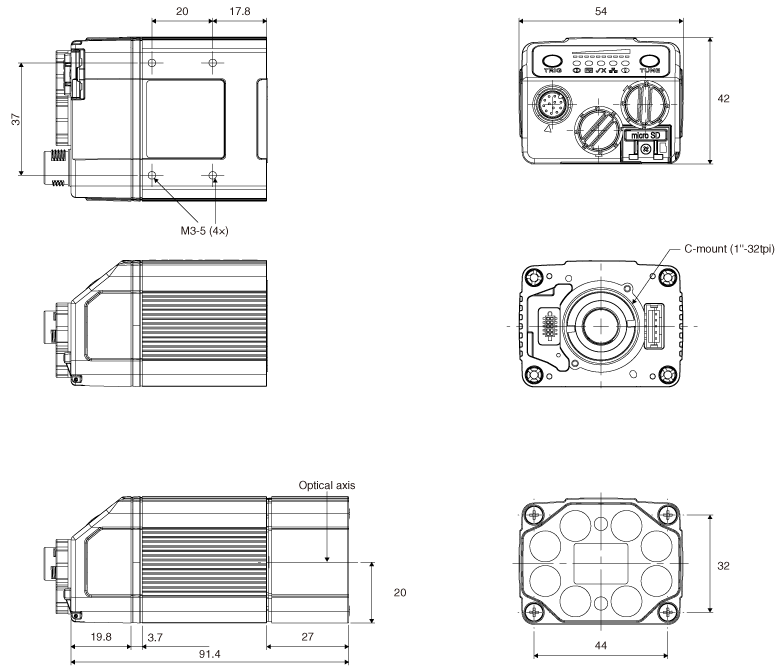

CF37-SR, CF37-LR

(Unit: mm)

CF37-SR, CF37-LR
