GOT2000 GT27 model GT25 model GT25 rugged model GT25 open frame model GT23 model GT21 model Wide model Handy GOT

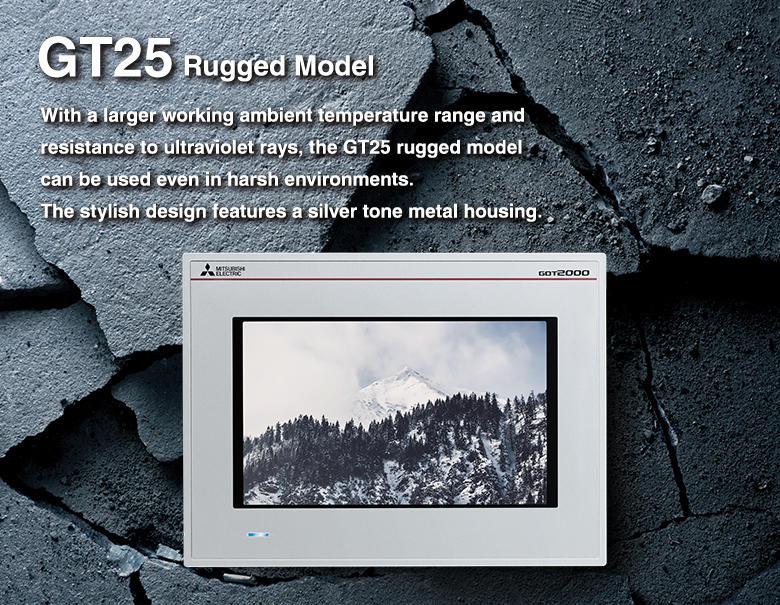

Rugged model

GT25 Rugged model Remarkable! Robust features 1.Wide operating temperature range 2.High brightness, clear under daylight 3.UV resistant 4.Vibration and shock resistant 5.Water jet resistant 6.Compliant with standards
  • Ethernet (2ports)
  • RS-232
  • RS-422/485
  • CC-Link IE Field Basic
  • Sound output(built-in)
7inch
GT2507T-WTSD NEW
SVGA 800×600TFT 65536 colorsDC

page top

Hardware features

Hardware Features
ItemSpecifications
Display7" widescreen, TFT color LCD, 65536 colors
ResolutionWVGA 800 × 480 dots
BacklightWhite LED
Panel colorSilver
Panel materialAluminum
User memoryMemory for storage (ROM): 32 MB
Memory for operation (RAM): 128 MB
Standard interfaceEthernet (2 ports), RS-232, RS-422/485
USB host (USB-A):
  1 channel (USB 2.0 (High-Speed 480 Mbps))
USB device (USB Mini-B):
  1 channel (USB 2.0 (High-Speed 480 Mbps))
Sound output interface (φ3.5 minijack)
SD memory card interface
Extension interface-
Wireless LAN communication unit interfaceFor installing a wireless LAN communication unit
Operating ambient temperature-20 ℃ to 65 ℃
Brightness
(LCD panel)		1000 cd/m2 (Typ)
UV cutoffApproximately 95% (370 nm)
Protective structureFront: IP66F, IP67F Inside control panel: IP2X
Vibration resistance19.6 m/s2 (continuous), 19.6 m/s2 (intermittent)
Shock resistance392 m/s2 (40G)
Dedicated optionUV protective sheet, protective cover for oil, stand
page top

External appearance [front face/rear face]

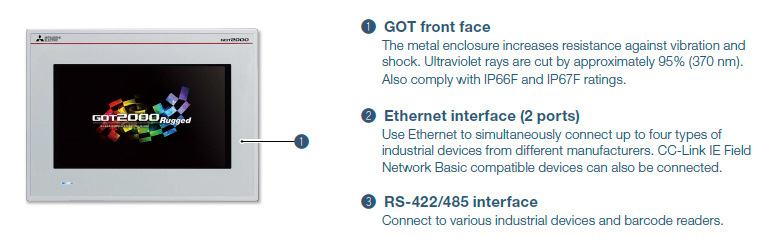

External appearance front face

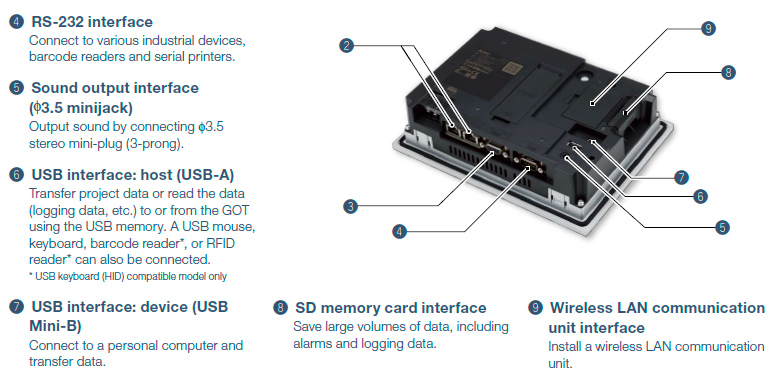

External appearance rear face
page top

Professional designs in just a few clicks

GT Works3 function details

MELSOFT GT Works3

MELSOFT GT Works3

You can effectively use existing screen assets or design aesthetic screens with GT Works3, the software that can be commonly used for the GOT2000 Series.

  • * Use GT Works3 Version 1.195D or later to design screens of GT25 Rugged model.
  • * For the details of GT Works3 functions, please refer to "GT Works3".
