A new style of GOT2000

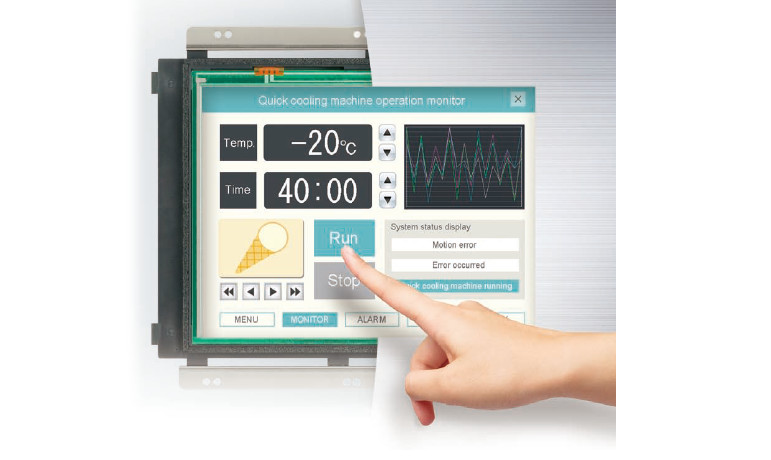

GT25 model Open frame model

Item	Specifications
Display	8.4"/10.4"/12.1", TFT color LCD, 65536 colors
Resolution	SVGA, VGA
Backlight	White LED
User memory	Memory for storage (ROM): 32 MB Memory for operation (RAM): 80 MB

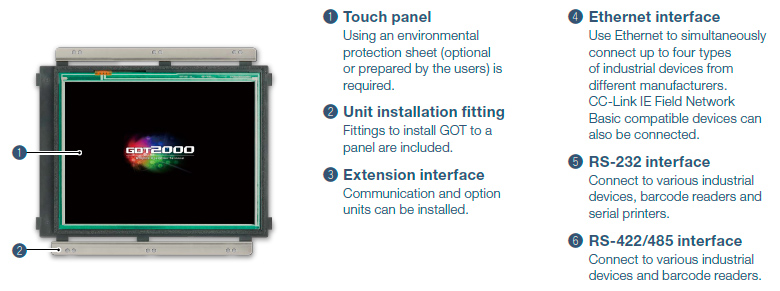

Standard interface	Ethernet, RS-232, RS-422/485 USB host (USB-A): 1 channel (USB 2.0 (High-Speed 480 Mbps)) USB device (USB Mini-B): 1 channel (USB 2.0 (High-Speed 480 Mbps)) SD memory card interface
Extension interface	CC-Link IE TSN [NEW], CC-Link IE Control, CC-Link IE Field, CC-Link, bus, MELSECNET/H

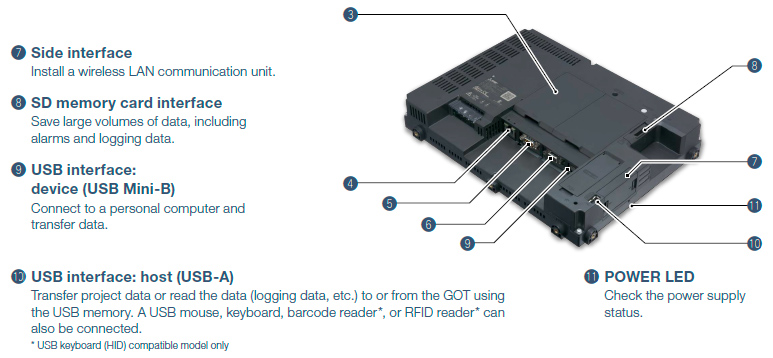

Side interface	For installing a wireless LAN communication unit

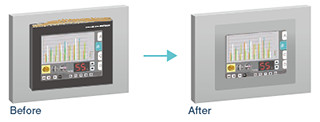

GOT complements machine design

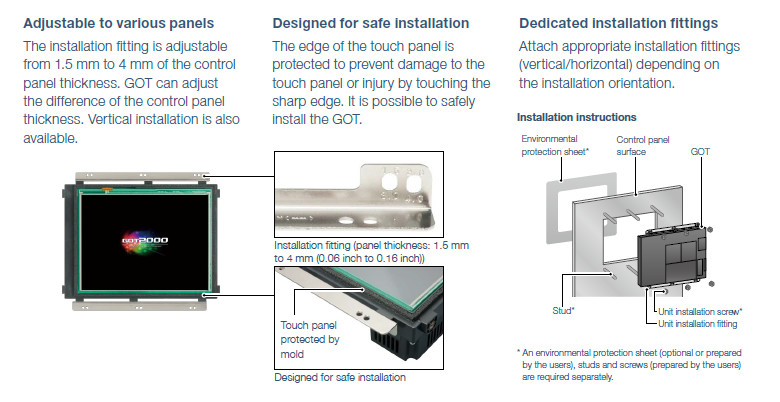

Installing the GOT2000 from the back side of the control panel complements the machine-design surface.

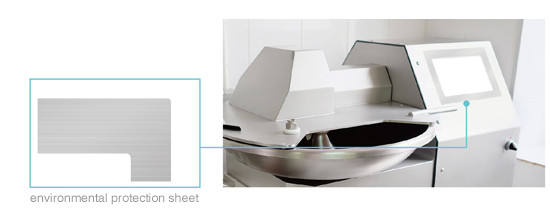

Using a stainless-look environmental protection sheet allows the touch panel to blend into the production machines for the pharmaceutical and food industries.

GOT complements machine design

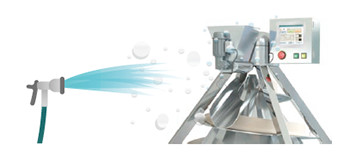

IP67F protection

To conform to IP67F, attach an environmental protection sheet.*
GOT can be operated with wet hands, wiped with a damp cloth, and washed with water.

* Note that the structure does not guarantee protection in all users' environments. The GOT may not be used in certain environments where it is subjected to splashing oil or chemicals for a long period of time or soaked in oil mist.
