Product Features
High performance, cost efficient, mid-range model
A wide variety of specifications suit every system design
Communication interfaces such as Ethernet, RS-232, RS-422/485, USB host/device and SD memory card are standard features. High capacity data processing ensure smooth screen operation even when multiple tasks,such as logging, script, alarm, or device data transfer, are running.
| Item | Specifications |
|---|---|
| Display | 5.7"/8.4"/10.4"/12.1", TFT color LCD, 65536 colors |
| Resolution | SVGA, VGA |
| Backlight | White LED |
| User memory | Memory for storage (ROM): 32 MB Memory for operation (RAM): 80 MB |
| Standard interface | Ethernet, RS-232, RS-422/485 USB host (USB-A): 2 channels*1 (USB 2.0 (High-Speed 480 Mbps)) USB device (USB Mini-B): 1 channel (USB 2.0 (High-Speed 480 Mbps)) SD memory card interface |
| Extension interface*2 | CC-Link IE TSN [NEW], CC-Link IE Control, CC-Link IE Field, CC-Link, bus, MELSECNET/H |
| Side interface*2 | For installing a wireless LAN communication unit |
- *1 GT2505 and white model have 1 channel.
- *2 GT2505 does not have the extension interface and the side interface.

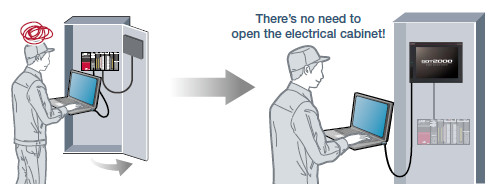

FA Transparent function simplify your debugging work!
By connecting a personal computer to the front USB interface on the GOT, the GOT acts as a transparent gateway to enable startup and adjustment of equipment. Users do not have to bother with opening the electrical cabinet or changing cable connections.

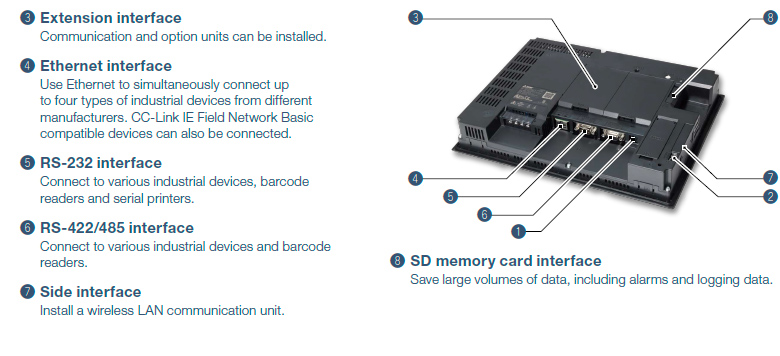

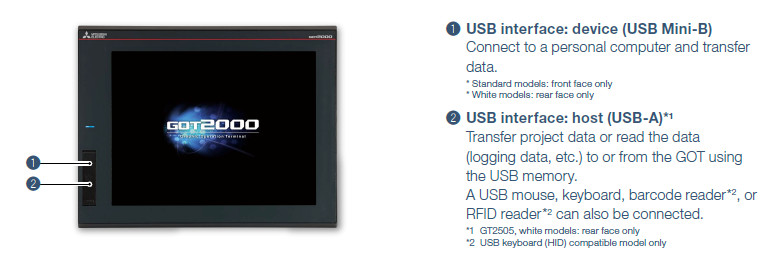

GT25 standard model external appearance [front face/rear face] * Excluding GT2505

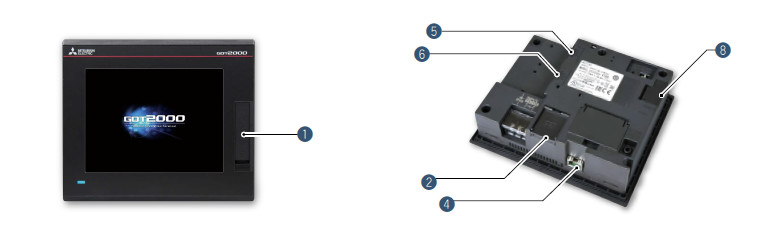

GT2505 external appearance [front face/rear face]

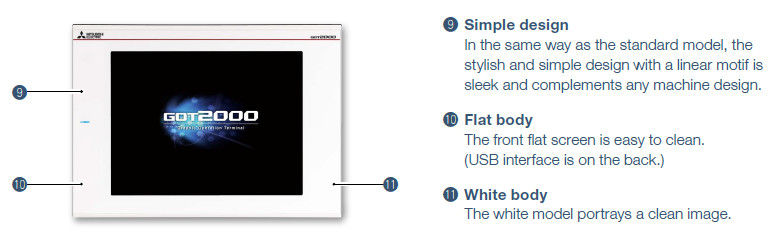

GT25 white model external appearance [front face]
White model features
GOT is acceptable for use in hazardous locations classified by various safety standards (Class I, Division 2 [the United States, Canada], ATEX [Europe], KCs [Korea]).
* Supported standards vary depending on the model. For the details, please refer to the "Support various international standards".

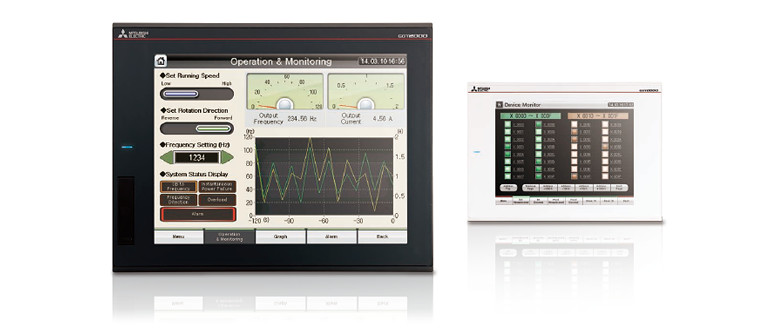

GT25 model product map
