Product Features
Various controllers and connection types
Multi-channel function/Device data transfer function

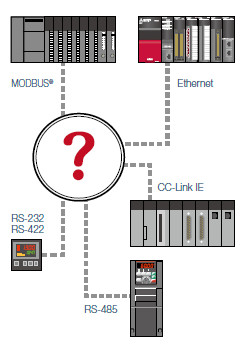

How can I connect various industrial devices in various connection types?
GOT supports various industrial devices and connection types. With the multi-channel function, four channels of industrial devices can be monitored on a single GOT.
Function features

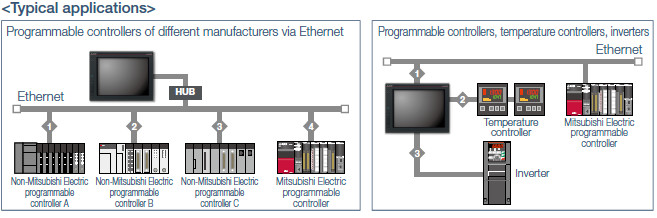

GOT supports various industrial devices and connection types. With the multi-channel function and the device data transfer function, multiple types of industrial devices of different manufacturers can be monitored.
- * Excluding GT2103-PMBLS
Ethernet, RS-232, RS-422/485, CC-Link IE Controller Network, CC-Link IE Field Network, CC-Link, Bus, MELSECNET/H*, MODBUS®
- * Including MELSECNET/10 mode.

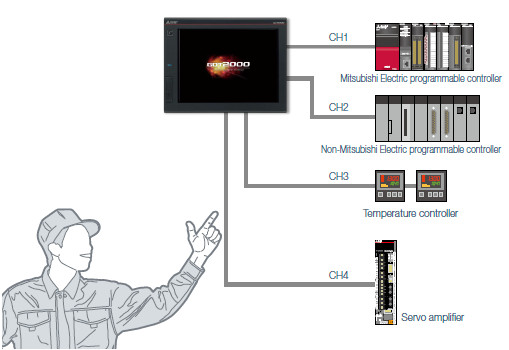

Multi-channel function
Up to four channels* of industrial devices (programmable controller, servo, inverter, temperature controller, etc.) can be monitored with one GOT.
- * Up to 2 channels on GT23, GT21, and GS21.

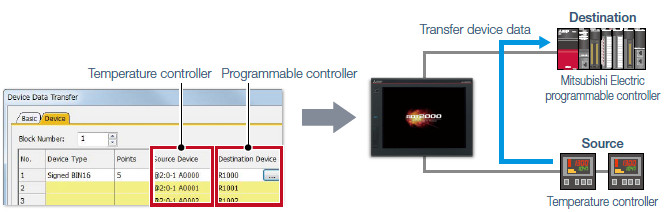

Device data transfer function
Using GT Works3, simply set source devices, destination devices, and triggers and you can transfer devices between industrial devices.
Specification details and restrictions
- ● Various peripherals
- External devices (operation panels, switches, lamps, etc.), two-dimensional code readers, barcode readers, RFID readers, IC card readers, speakers, video cameras, displays (RGB output), personal computers (RGB input), serial printers, PictBridge compatible printers
- ● Multi-channel function
- Supported connection types, channel numbers, and functions vary depending on the GOT type. For the details, please refer to the relevant product manual or the “Connectable model list” (page 152).
