คุณสมบัติของมอเตอร์เกียร์
ภาพรวม
Premium efficiency compliant with IE3
With international initiatives underway aimed at preventing global warming, จำนวนries around the world have been introducing regulations obligating manufacturers to produce and sell high-efficiency motors. In 2015, the ภาษาญี่ปุ่น government put into force the Act on the Rational Use of Energy ("Energy Conservation Act")
กระแสไฟฟ้าly, all products comply with IE3 *1 class of international standard.

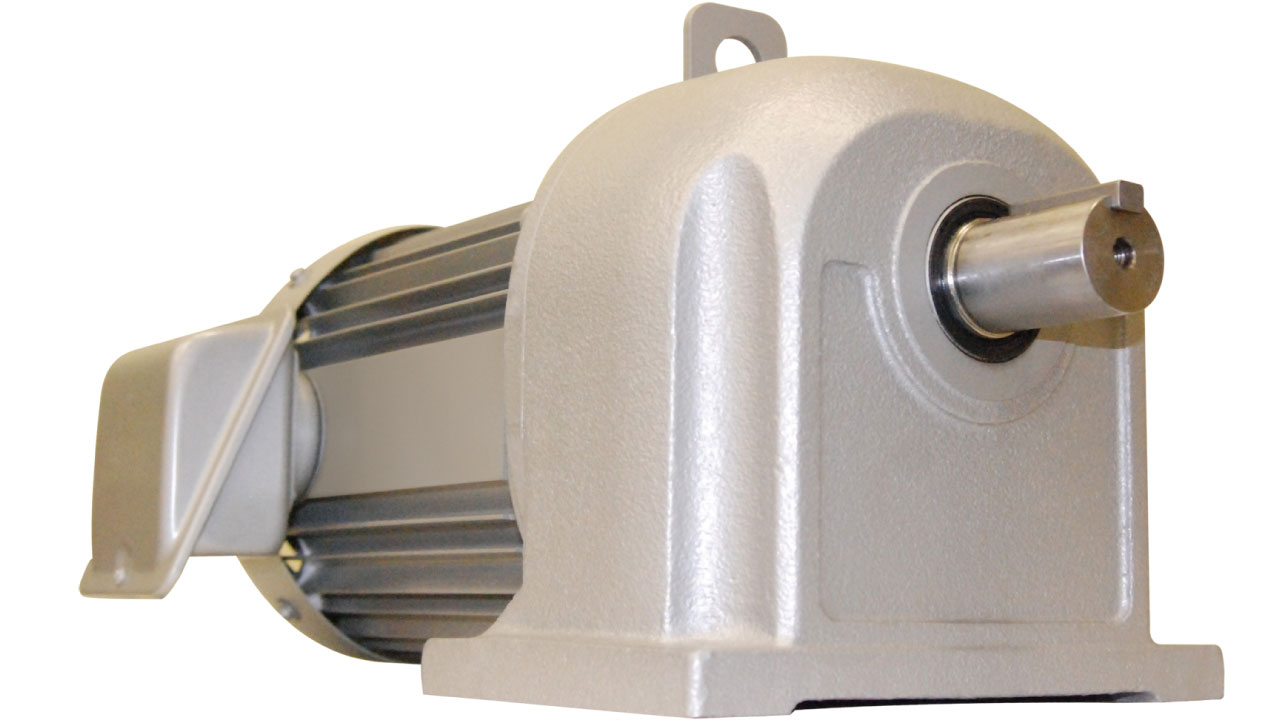

Mitsubishi Electric's premium geared motors are high-performance, energy-saving อุปกรณ์s that reduce loss (primary copper loss, secondary copper loss, iron loss, stray load loss, and mechanical loss) and comply with IE3 *1 standards for high efficiency. As such, they allow for the energy-saving operation of machines and อุปกรณ์s. (0.75 kW or more)

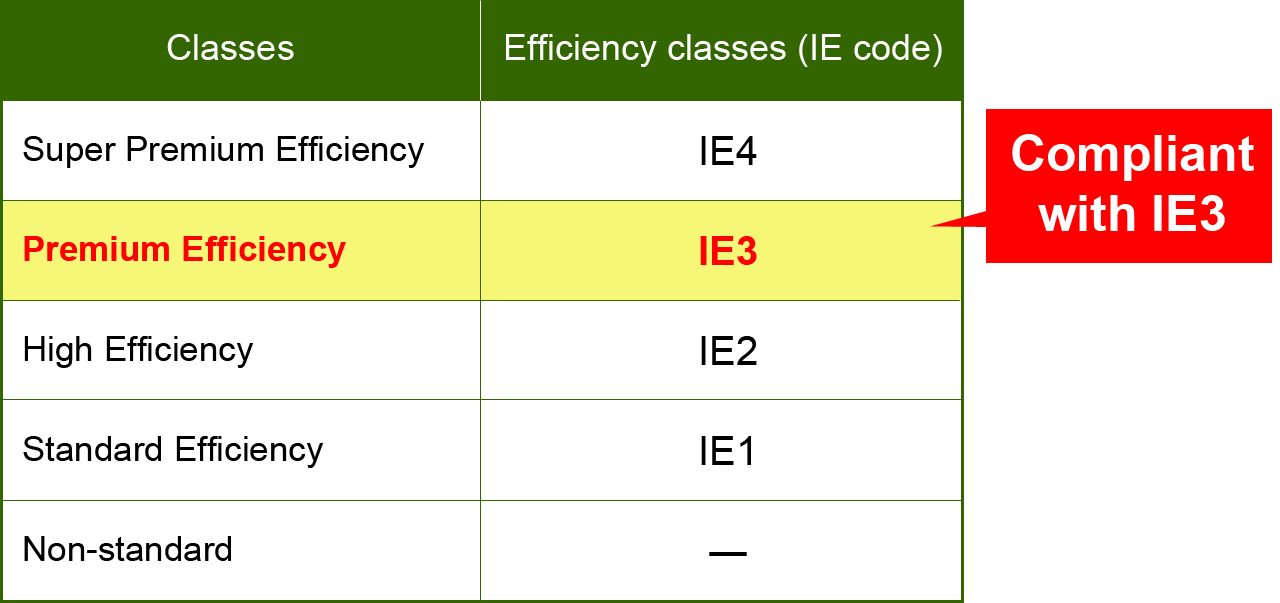

●Efficiency class (IE code)
*1: Motor efficiency classes — The Japan Industrial มาตรฐาน Committee has issued the JISC4034-30, which is based on the International Electrotechnical Commission's IEC60034-30 standard that specifies energy-efficiency classes for single-ความเร็ว, three-phase, cage-induction motors. (see table at left for categories)
Sensorless servo

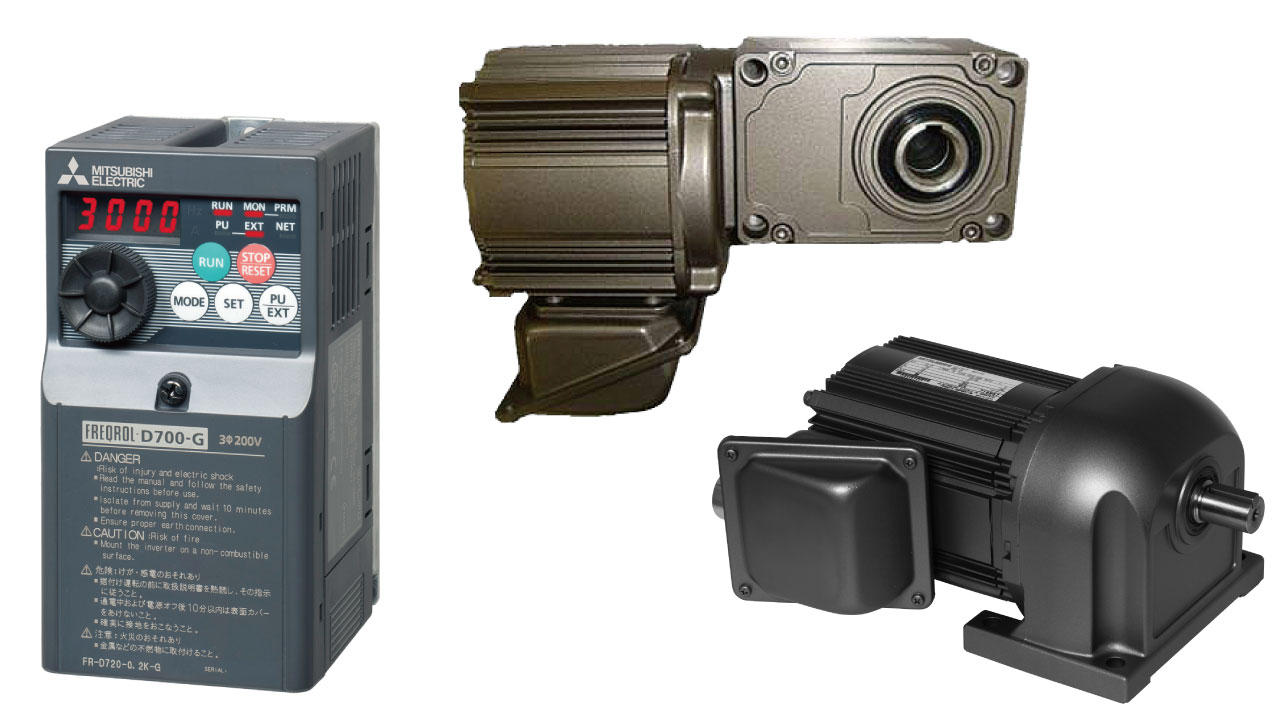

S-PM geared motors achieve stable ความเร็ว การควบคุม and energy savings through sensorless การควบคุม.
These sensorless servos combine S-PM motor (permanent-magnet motor) with Mitsubishi Electric's unique sensorless vector การควบคุมler to achieve high-precision ความเร็ว การควบคุม. With a ±0.05% ความเร็ว variance rate that is comparable to servo motor, it can be put to use in conveyance applications that require high precision such as on semiconductor and liquid-crystal production lines that induction motors cannot handle.

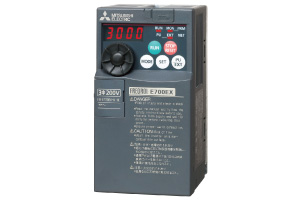

The drive unit FR-E700EX incorporates increased CC-link network ฟังก์ชัน. (Optional card required.)
| Motor |

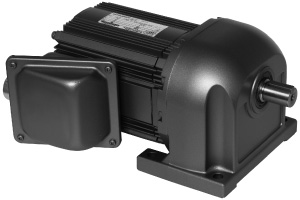

S-PM Geared motor |

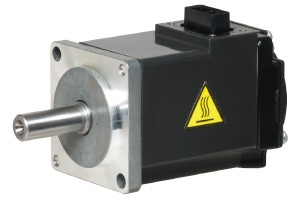

MM-GKR |

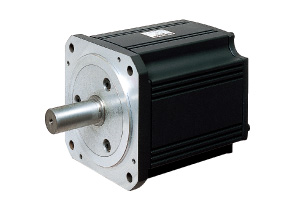

MM-CF |
|
|---|---|---|---|---|
| ยูนิตขับ |

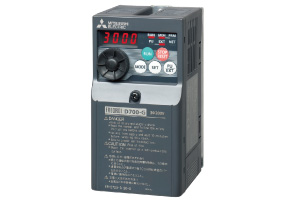

FR-D700-G |
FR-E700EX |
FR-A800 |
|
Global standards
Mitsubishi Electric's geared motors have obtained energy certifications in numerous จำนวนries, and achieved compliance with a variety of safety and other standards. (as of September 30, 2023)
(Similar regulations may also be in effect in จำนวนries and regions not shown on this page. The information presented here is based on information with a high degree of certainty. However, given the changing nature of regulations around the world, we cannot guarantee the up-to-date accuracy of all the content presented here.)
Country-by-จำนวนry compliance
The below chart summarizes the status of our products in terms of compliance with standards (efficiency certifications, safety standards, etc.) in certain major markets.
Status by standard: Indicates the output ช่วง under each respective จำนวนry's standard.
การสนับสนุนed ช่วง: Indicates the manufacturing ช่วง for geared motors taking into consideration the restrictions in each respective จำนวนry.
The standards or certifications for efficiency are apply to an output ช่วง of 1 HP (0.75 kW) or more. (as of September 30, 2023)
| Country | Category | มาตรฐาน summary | Our response | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Status by standard | การสนับสนุนed ช่วง | ||||||||||||||||||||
America |
Efficiency | EISA: Energy Independence and Security Act (NEMA MG1-12-12)
|
○ 0.75 to 2.2 kW |
○ 0.1 to 2.2 kW |
|||||||||||||||||
| Safety | UL1004, UL1004-1 | ○ 0.1 to 2.2 kW |
|||||||||||||||||||
Canada |
Efficiency | EEAct: Energy Efficiency Act (CSA C390)
|
× | ○ 0.1 to 0.4 kW |
|||||||||||||||||
| Safety | CSA C22.2No.100 | ○ 0.1 to 2.2 kW |
|||||||||||||||||||
EU |
Efficiency | Commission Regulation (EC) No. 640/2009 (Europe)
|
○ 0.75 to 37 kW |
○ 0.1 to 37 kW |
|||||||||||||||||
| Safety | Low Voltage Directive 2014/35/EU | ○ 0.1 to 37 kW |
|||||||||||||||||||
| Environment | Energy-related ผลิตภัณฑ์ Directive (Ecodesign Directive) 2009/125/EC | ○ 0.1 to 37 kW |
|||||||||||||||||||
| Restriction of Hazardous Substances directive (RoHS) | ○ 25 W to 37 kW |
||||||||||||||||||||
Korea |
Efficiency | Energy Efficiency Label and มาตรฐาน Program
|
○ 0.75 to 7.5 kW (IE3) |
○ 25 W to 7.5 kW |
|||||||||||||||||
China |
Efficiency | GB18613-2012: The Minimum Allowable Values of Energy Efficiency and the Energy Efficiency Grades for Small and Medium Three-phrase Asynchronous Motors
|
○ 0.75 to 15 kW (GB2) |
○ 0.1 to 15 kW |
|||||||||||||||||
| Safety | GB12350-2009:Safety Requirements of Small-Power Motors | ○ 0.1 to 0.75 kW |
|||||||||||||||||||
| Environment | Making for the Restriction of the Use of Hazardous Substances in Electrical Product(revised China RoHS) | ○ 25 W to 55 kW |
|||||||||||||||||||
Taiwan |
Efficiency | มาตรฐานประสิทธิภาพพลังงานสำหรับมอเตอร์เหนี่ยวนำกรงกระรอกสามเฟสแรงดันต่ำ (รวมถึงการติดตั้งอุปกรณ์พิเศษบางส่วน) ป้ายประสิทธิภาพ และวิธีตรวจสอบ ประกาศ (90) เลขที่ 09004619170, เลขที่ 10304601670 ฉบับแก้ไข: สาธารณรัฐจีน 22 ธันวาคม ปี 103 (22 ธันวาคม 2014) มาตรฐานแห่งชาติไต้หวัน (CNS) 14400
|
○ Non-GM |
○ Non-GM |
|||||||||||||||||
Brazil |
Efficiency | Presidential Order 4508 ABNT NBR 17094-1
|
× Complies with S-PM |
25 W to 0.4 kW | |||||||||||||||||
Mexico |
Efficiency | NORMA Oficial Mexicana NOM-016-ENER-2010
|
○ Non-GM |
○ Non-GM |
|||||||||||||||||
Vietnam |
Efficiency | Compliance มาตรฐาน: Prime Minister Decision No. 51/2011/QD-TTg
|
○ Non-GM |
○ Non-GM |
|||||||||||||||||
Australia
New Zealand |
Efficiency | Compliance มาตรฐาน: Equipment Energy Efficiency (E3) Program (AS/NZS1359.5:2004)
|
× Complies with S-PM |
25 W to 0.4 kW | |||||||||||||||||
