Recorder Module
The recorder module is a dedicated logging module for system recorder which collects all data per controller scan prior to and after an error event together with a time-stamp. The cause of the error can be identified quickly since individual settings for recording specific devices and labels is unnecessary.
Catalog
System-wide logging

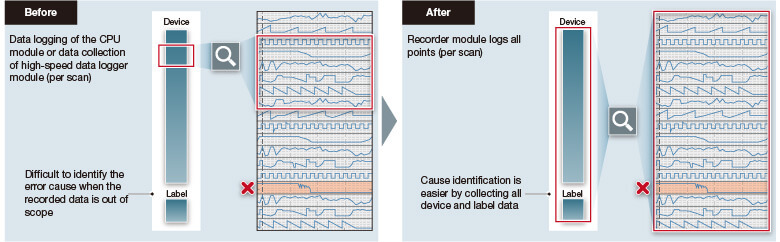

Data collection using the CPU module logging function and high-speed data logger module are available for identifying an error cause. However, multiple data collections and estimating target scope are necessary due to limited scanning points. The recorder module can collect all device and label data per controller scan prior to and after an error event together with a time-stamp. The cause of the error can be identified quickly since individual settings for recording specific devices and labels is unnecessary. Safety device logging will be supported.*1
*1: Supported in the future.
Easy setting
Setting of the trigger device to start recording prior to and after the event is only required irrespective of the device target recording range.
Recorder module specifications
| Item | RD81RC96 | |
|---|---|---|
| Number of settings | Up to 4 | |
| Save destination | SD memory card capacity (fixed), network storage*2 | |
| Recording method | Recording startup | File saving trigger, recording startup trigger |
| File saving trigger | Number of file saving trigger | Max. 16 per setting (4 settings x 16) |
| File saving trigger | File saving trigger Device of the control CPU, elapsed time after completion of data collection | |
| Recording target | Device/label, event history | |
| Sampling time interval | Sampling method | Each scan, time specification, trigger instruction |
| Number of connectable modules | One recorder module per control CPU | |
| Compatible CPU module | R04/08/16/32/120CPU, R04/08/16/32/120ENCPU*3 | |
*2: Supported in the future.
*3: Compatible CPU modules can be checked from product information. Please refer to the relevant manual,
