MELSEC iQ-R series

Programmable Controller

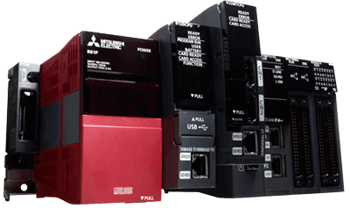

MELSEC iQ-R series

Integrated and powerful control for demanding applications.
The MELSEC iQ-R is a full featured control platform with fast processing speeds, network and module synchronization, and multi-discipline control. The advanced design of the MELSEC iQ-R enables users to lead their industries with superior machine performance and productivity. A multitude of CPU and I/O module options make it a flexible solution for a wide variety of applications.

Overview
Product Lineup
Specification
Selection Tool

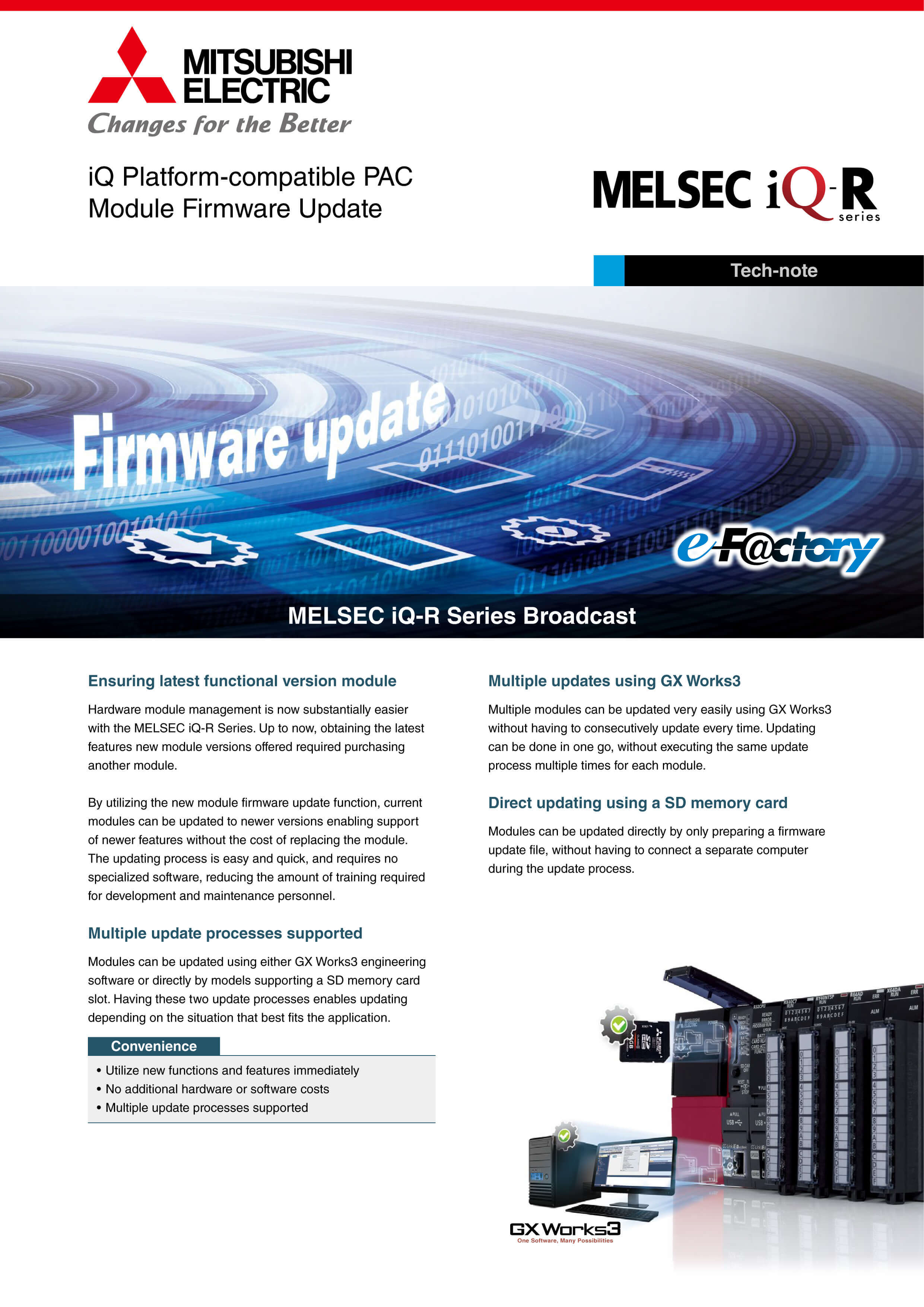

Downloads

Overview

iQ-R Concept

Key Benefits
• 0.98 ns execution speed improves machine response for faster, more accurate applications
• Multi-discipline control with up to 4 CPUs in a single rack and a high speed bus allow for synchronized data communication between process, motion, and sequential control
• GX Works3 programming software with built-in functions and configuration screens reduces development and troubleshooting time
• CC-Link IE Field network with deterministic performance over industrial Ethernet improves machine response and I/O synchronization
• Built-in SD memory card database provides recipe and data logging
functionality without the need for an external server
• Enhanced security features to protect intellectual property as well as plant safety

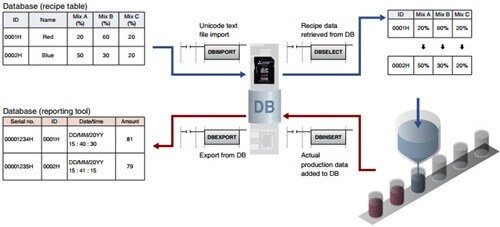

Internal Database

The CPU includes an internal database that can be installed into the SD memory card. This allows a selection of database commands that can add/delete/change records to be utilized for simple recipe functions. It is also easy to import/export Unicode files for use in spreadsheets. This is useful where multiple product variations are produced using the same machine process.

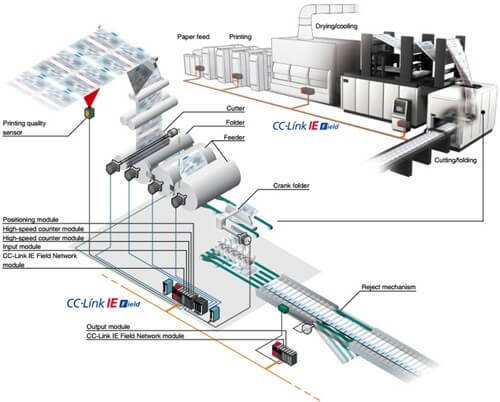

High Speed and Synchronization

The iQ-R boasts a high speed system bus for synchronized data communications between multiple CPUs. This improves performance and accuracy, especially for high speed motion control applications. CC-Link IE Field provides deterministic performance over Industrial Ethernet ensuring synchronization between nodes.

Enhanced Security Features

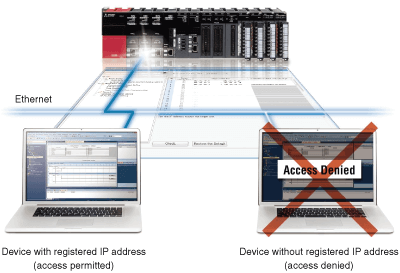

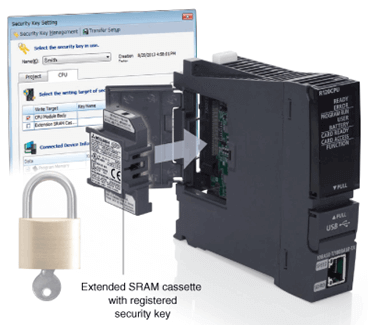

iQ-R has a variety of security features to protect intellectual property and plant safety. Engineers can restrict access at the network level using IP filtering, lowering the risk of hacking or any other unauthorized third party access. At the controller level, security key authentication prevents unauthorized access to the program or execution of the CPU. Security keys can be registered to specific CPUs, personal computers, or an extended SRAM cassette. Use of an SRAM cassette enables CPU replacement in the field without the need for program changes.

Product Lineup

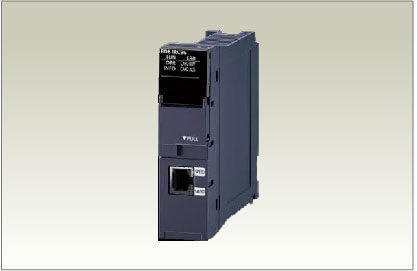

CPU
Programmable automation controllers catering for various different applications.

Base unit
For installing devices such as power supply, CPU and input/output modules. Various base units are available to suit multiple system requirements.

Power supply
This module is used for providing the electrical power for the CPU, input, output, and other modules on the base unit.

I/O module
Devices such as switches, indicator lamps, and sensors can be easily connected to the control system using the digital I/O modules.

Analog I/O module
Analog modules are the main interface between the control process and the automation system, and are specifically designed to interface with sensors that process varying voltage and current signals.

Motion, Positioning, High-speed counter
Distinct set of high-accuracy and fast control response intelligent modules that are ideal for applications requiring high-speed and precision.

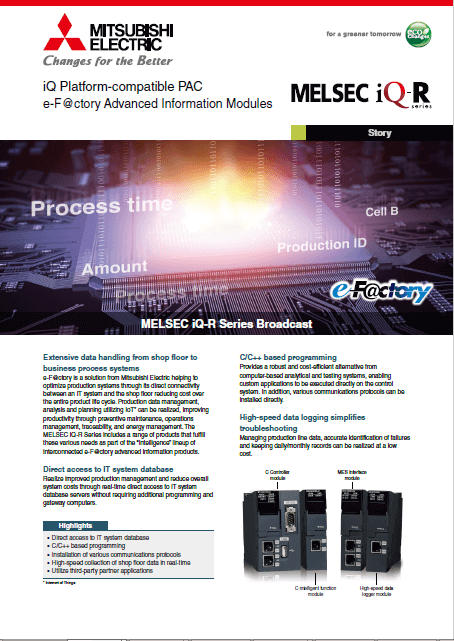

Information/network module
This module group enables information exchange with multiple control systems. The module lineup improves production efficiency by collecting and controlling various production information.

Recorder module
The recorder module is a dedicated logging module for system recorder which collects all data per controller scan prior to and after an error event together with a time-stamp.

Product Features

Specification

Lineup	Programmable controller CPU: 8 models CC-Link IE embedded CPU: 5 models Safety CPU: 4 models Process CPU^*1: 8 models C Controller: 1 model Motion CPU: 3 models Robot controller: 1 model CNC CPU: 1 model
Control method	Stored program cyclic operation
I/O control mode	Refresh mode
Programming language	Ladder diagram Structured text (ST) Sequential function chart (SFC)^2 Function block diagram (FBD/LD) Function block (FB) C/C++^4
Engineering environment	MELSOFT GX Works3 MELSOFT MT Works2 CW Workbench
Program size (K step)	1200
Number of I/O points [X/Y] (point)	4096
Device/label memory/ standard RAM (K byte)	3380
Data memory/ standard ROM (byte)	40 M
Processing speed
LD instruction (ns)	0.98
MOV instruction (ns)	1.96
Floating point addition (µs)	0.01
Memory interface
Extended SRAM cassette	●
SD memory card	●
SRAM card, FLASH card, ATA card	—
External interface
USB	●
Ethernet (1000BASE-T^*7/ 100BASE-TX/ 10BASE-T)	●
RS-232	—
RS-422/485	—
Display unit	—
CC-Link IE connection port
Ethernet (1000BASE-T/ 100BASE-TX/ 10BASE-T)	●^*12
Network connectivity (adapter/module)
Ethernet (1000BASE-T^*13/ 100BASE-TX/ 10BASE-T)	●
CC-Link IE Control	●
CC-Link IE Field	●
CC-Link	●
CC-Link/LT	—
SSCNET Ⅲ/H	●
AnyWire	●
BACnet™	●
MODBUS®/TCP	●
MODBUS®	●
General specifications/conformed standards
Operating ambient temperature	0...55℃ (60℃^*17)
International safety standards (ISO 13849-1 PL e, IEC 61508 SIL 3)	●^*18
Standard on corrosive atmosphere (JIS C60721-3-3/ IEC 60721-3-3 3C2)	●^*19
CE: Council Directive of the European Communities	●
UL: Underwriters Laboratories Listing	●
LR: Lloyd's Register of Shipping approval	●
DNV: Norwegian Maritime approval	●
RINA: Italian Maritime approval	●
NK: ClassNK approval	●
ABS: American Bureau of Shipping approval	●
BV: Bureau Veritas approval	●
GL: Germanischer Lloyd approval	●
Key features/functions	Line manufacturing Distributed control Small-scale I/O control Large-scale I/O control Security Inter-modular sync Built-in database Integrated network Multiple CPU Process control High-reliability control C programming Datalogging IT gateway Advanced motion Safety Real-time monitor

*1: Supports redundant system when paired with R6RFM
*2: SFC is not supported in redundant mode and by safety CPU
*3: Q□UDVCPU only
*4: When using CW Workbench
*5: Does not support QnUDVCPU and certain models
*6: Does not support L02SCPU(-P)
*7: Supports the user Ethernet port of Q24DHCCPU-V/VG/LS and Q26DHCCPU-LS only
*8: Supports Q□UDE(H)CPU and Q□UDVCPU only
*9: Does not support Q□UDE(H)CPU and Q□UDVCPU
*10: Supports L02SCPU(-P) only
*11: Supports FX3G only
*12: R□ENCPU only
*13: Supports the MELSEC iQ-R Series only.
*14: Supported by expansion board
*15: Does not support Q□(P)(H)CPU and Q□PRHCPU
*16: Supports SSCNET Ⅲ
*17: Only supported when used together with extended temperature range main/extension base units
*18: R□SFCPU-SET only.
*19: For protection against aggressive atmosphere and gases, products with a conformal coating (JIS C 60721-3-3/IEC 60721-3-3 Class 3C2) are available on request
*20: Operating ambient temperature from -20℃ is supported by products produced from June 2016 (serial number "166" or later). For details, on supported products, please refer to the relevant product manual.

Selection Tool

Start the Selection Tool

Product Comparison

Series	Modular type	Modular type	Baseless type
	MELSEC iQ-R	MELSEC-Q	MELSEC-L
	PAC (Programmable automation controller)	Programmable controller CPU	Programmable controller CPU
Lineup	Programmable controller CPU: 8 models CC-Link IE embedded CPU: 5 models Safety CPU: 4 models Process CPU^*1: 8 models C Controller: 1 model Motion CPU: 3 models Robot controller: 1 model CNC CPU: 1 model	Programmable controller CPU (Universal model): 25 models Process CPU: 4 models Redundant CPU: 2 models C Controller: 4 models Motion CPU: 2 models Robot controller: 1 model CNC CPU: 1 model	Programmable controller CPU Sink type: 5 models Source type: 5 models
Control method	Stored program cyclic operation	Stored program cyclic operation	Stored program cyclic operation
I/O control mode	Refresh mode	Refresh mode	Refresh mode
Programming language	Ladder diagram Structured text (ST) Sequential function chart (SFC)^2 Function block diagram (FBD/LD) Function block (FB) C/C++^4	Ladder diagram Structured text (ST) Instruction list MELSAP3 (SFC), MELSAP-L Function block diagram (FBD) Function block (FB) C/C++^*4	Ladder diagram Structured text (ST) Instruction list MELSAP3 (SFC), MELSAP-L Function block (FB)
Engineering environment	MELSOFT GX Works3 MELSOFT MT Works2 CW Workbench	MELSOFT GX Works2 MELSOFT PX Developer MELSOFT MT Works2 CW Workbench	MELSOFT GX Works2
Program size (K step)	1200	1000	260
Number of I/O points [X/Y] (point)	4096	4096	4096
Device/label memory/ standard RAM (K byte)	3380	1792	768
Data memory/ standard ROM (byte)	40 M	16 M	2 M
Processing speed
LD instruction (ns)	0.98	1.9	9.5
MOV instruction (ns)	1.96	3.9	19
Floating point addition (µs)	0.01	0.014	0.057
Memory interface
Extended SRAM cassette	●	●^*3	—
SD memory card	●	●^*3	●^*6
SRAM card, FLASH card, ATA card	—	●^*5	—
External interface
USB	●	●	●
Ethernet (1000BASE-T^*7/ 100BASE-TX/ 10BASE-T)	●	●^*8	●^*6
RS-232	—	●^*9	●^*10
RS-422/485	—	—	—
Display unit	—	—	●
CC-Link IE connection port
Ethernet (1000BASE-T/ 100BASE-TX/ 10BASE-T)	●^*12	—	—
Network connectivity (adapter/module)
Ethernet (1000BASE-T^*13/ 100BASE-TX/ 10BASE-T)	●	●	●
CC-Link IE Control	●	●	—
CC-Link IE Field	●	●^*15	●
CC-Link	●	●	●
CC-Link/LT	—	●	●
SSCNET Ⅲ/H	●	●	●
AnyWire	●	●	●
BACnet™	●	●	●
MODBUS®/TCP	●	●	●
MODBUS®	●	●	●
General specifications/conformed standards
Operating ambient temperature	0...55℃ (60℃^*17)	0...55℃	0...55℃
International safety standards (ISO 13849-1 PL e, IEC 61508 SIL 3)	●^*18	—	—
Standard on corrosive atmosphere (JIS C60721-3-3/ IEC 60721-3-3 3C2)	●^*19	—	—
CE: Council Directive of the European Communities	●	●	●
UL: Underwriters Laboratories Listing	●	●	●
LR: Lloyd's Register of Shipping approval	●	●	—
DNV: Norwegian Maritime approval	●	●	—
RINA: Italian Maritime approval	●	●	—
NK: ClassNK approval	●	●	—
ABS: American Bureau of Shipping approval	●	●	—
BV: Bureau Veritas approval	●	●	—
GL: Germanischer Lloyd approval	●	●	—
Key features/functions	Line manufacturing Distributed control Small-scale I/O control Large-scale I/O control Security Inter-modular sync Built-in database Integrated network Multiple CPU Process control High-reliability control C programming Datalogging IT gateway Advanced motion Safety Real-time monitor	Line manufacturing Distributed control Large-scale I/O control Integrated network Multiple CPU Process control High-reliability control C programming Data logging IT gateway Advanced motion	Machine control Distributed control Small-scale I/O control Large-scale I/O control Space/cost saving Integrated network Extensive built-in functions Data logging Motion control Real-time monitor
