Software Tools NC Configurator2

NC Parameter Setup

NC parameters required for NC control and machine operation can be edited on a computer.
Initial parameters can also be easily created by inputting the machine configuration.

Free version is limited in function
M800VM80VM800M80E80C80M700VM70VM700M70E70C70

  • Feature
  • Specification
  • Standards
  • Discontinued

Overview

●It is difficult to set up each parameter according to the manual.

Easy setup using
NC Configurator2!

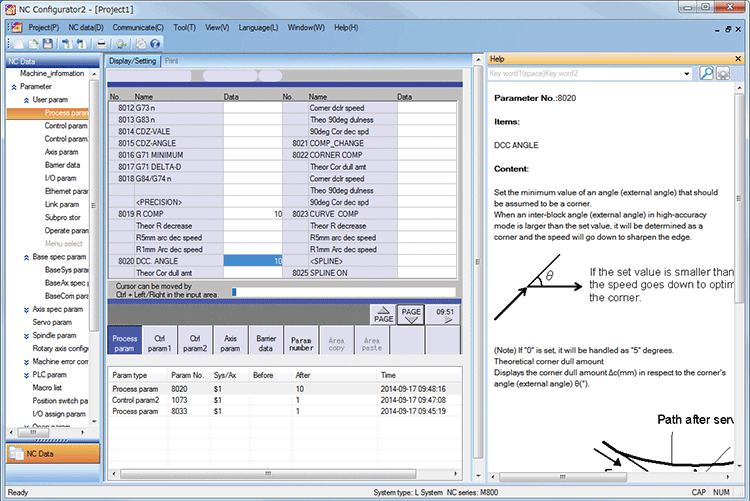

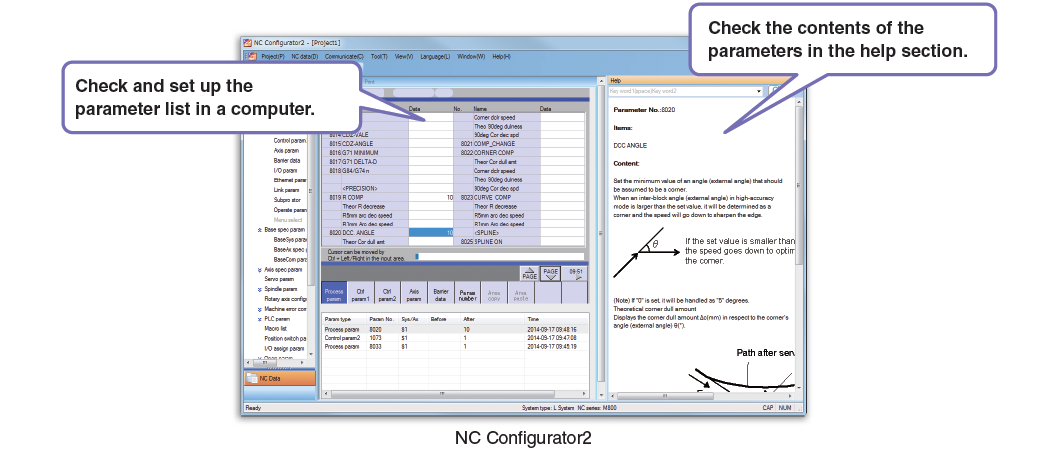

Check and set up the parameter list in a computer. | Check the contents of the parameters in the help section.

Enlarge image

Functions

  • NC parameter setting/search
  • Help (parameter explanation)
  • Offline comparison of parameter input/output
  • NC data input
  • Printing

The following are included in the full-mounted version.

  • Parameter initial setting wizard
  • Function parameters

Specifications

Supported OS Windows Ⓡ 8.1/Windows Ⓡ 10
Supports 32- and 64-bit OS (WOW64 available for 64-bit)
Languages English/Japanese/Simplified Chinese
CNC connections CNCs supported: M800V/M80V/M800/M80/E80/C80/M700V/M70V/M700/M70/E70/C70 Series
Connection configuration: Ethernet/RS-232C (parameter read/write in serial communication) /USB (C70 Series only)
Connectable CNCs: 8 (max.)
Precaution The free version has limited functions.
