MELSEC MX Controller MX-F model

Product features -Basic system configuration-

MELSEC MX Controller MX-F model

Basic system configuration

The MELSEC MX Controller (MX-F model) can be used with an extension connector type I/O module, MELSEC iQ-F Series expansion adapter and extension module, and intelligent function module.

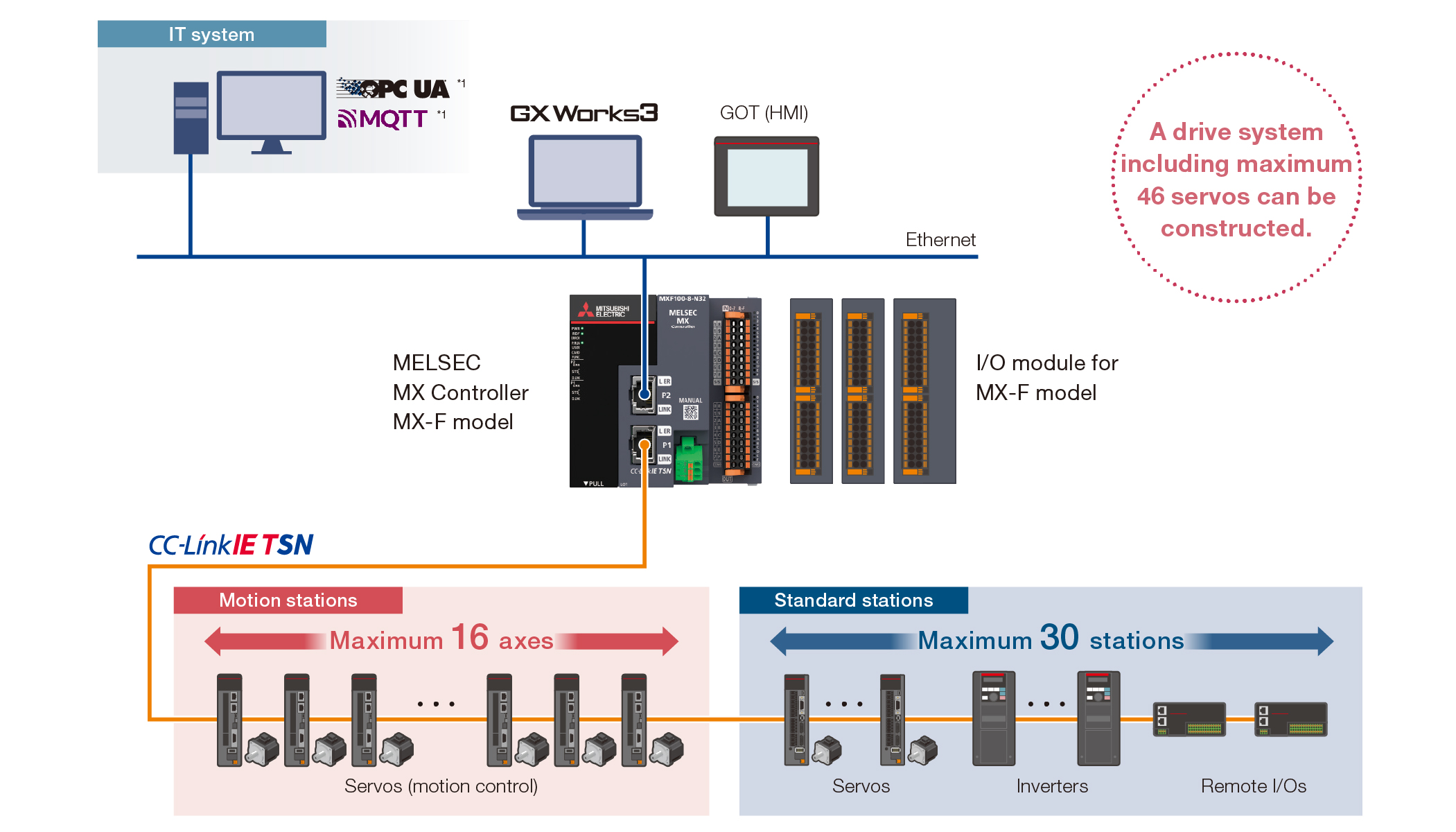

System configuration example

*1:Future support

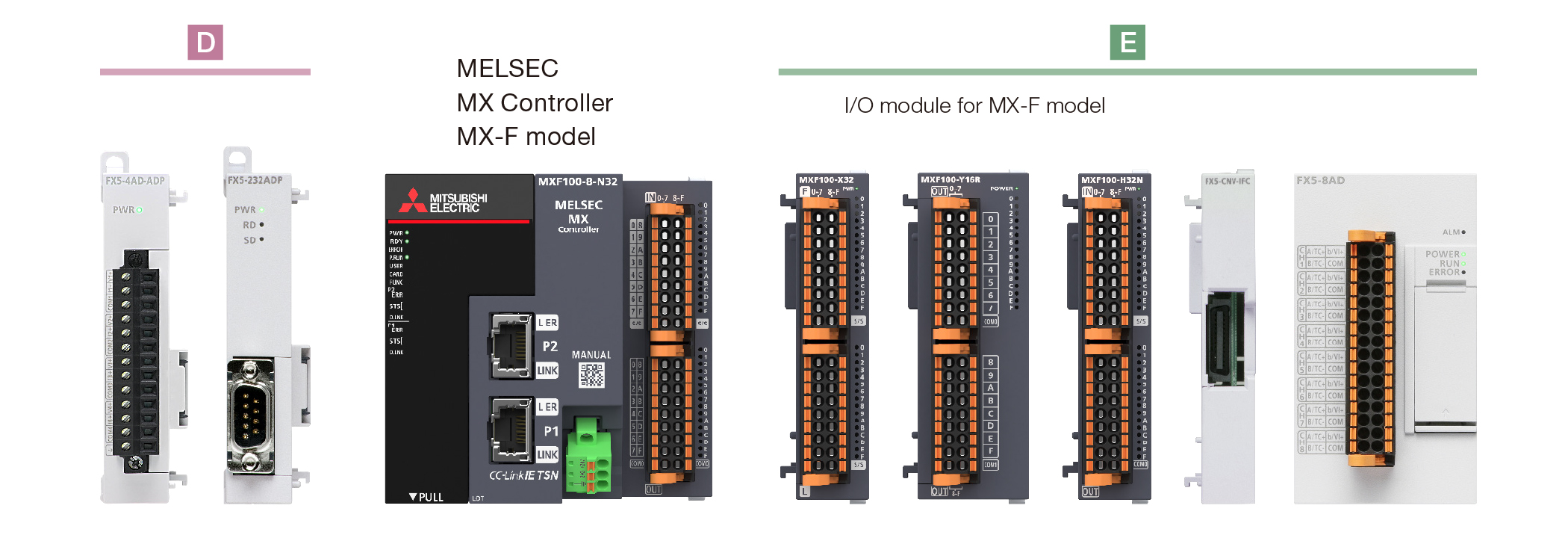

Modules

The following lists the devices that support MELSEC MX Controller (MX-F model).

Expansion adapter

Analog

Analog input	FX5-4AD-ADP
RTD temperature sensor input	FX5-4AD-PT-ADP
Thermocouple temperature sensor input	FX5-4AD-TC-ADP
Analog output	FX5-4DA-ADP
Analog I/O	FX5-4A-ADP

Communication

RS-232 communication	FX5-232ADP
RS-485 communication	FX5-485ADP

Extension module

I/O module for MX-F model ^*1

Input	MXF100-X32
Output	MXF100-Y16R
	MXF100-Y32N
	MXF100-Y32P
Input/output	MXF100-H32N
Input/output	MXF100-H32P

I/O module ^*2

Powered I/O	FX5-32ER/DS
	FX5-32ET/DS
	FX5-32ET/DSS

Intelligent function module

High-speed counter ^*2

High-speed counter	FX5-2HC/ES

Analog ^*2

Multiple input	FX5-8AD
Analog input	FX5-4AD
Analog output	FX5-4DA
Temperature control	FX5-4LC

Information/Network ^*2

CC-Link IE TSN master/local	FX5-CCLGN-MS
CC-Link system master/intelligent device	FX5-CCL-MS
EtherNet/IP	FX5-ENET/IP

Conversion module and others

Extension power supply unit	FX5-C1PS-5V
Connector conversion module	FX5-CNV-IFC
Extension cable ^*3	FX5-30EC
Extension cable ^*3	FX5-65EC
Conversion adapter	FX5-CNV-BC

SD memory card

SD memory card	NZ1MEM-2GBSD, NZ1MEM-4GBSD, NZ1MEM-8GBSD, NZ1MEM-16GBSD

Battery

Battery	FX3U-32BL

*1:Some MELSEC iQ-F Series I/O modules can also be added. For details, refer to the "MELSEC MX Controller (MX-F Model) User's Manual" (SH(NA)-082634ENG).
*2:When the extension cable type module is used, the FX5-CNV-IFC or FX5-C1PS-5V is required.
*2:This module is available after connector conversion with the FX5-CNV-IFC or FX5-C1PS-5V.
