Factory Automation

All-in-One Control of Sequence, Motion, and Network
MELSEC MX Controller

New models. Enhanced features. Greater usability.

Innovating manufacturing site

New programmable automation controller by Mitsubishi Electric!

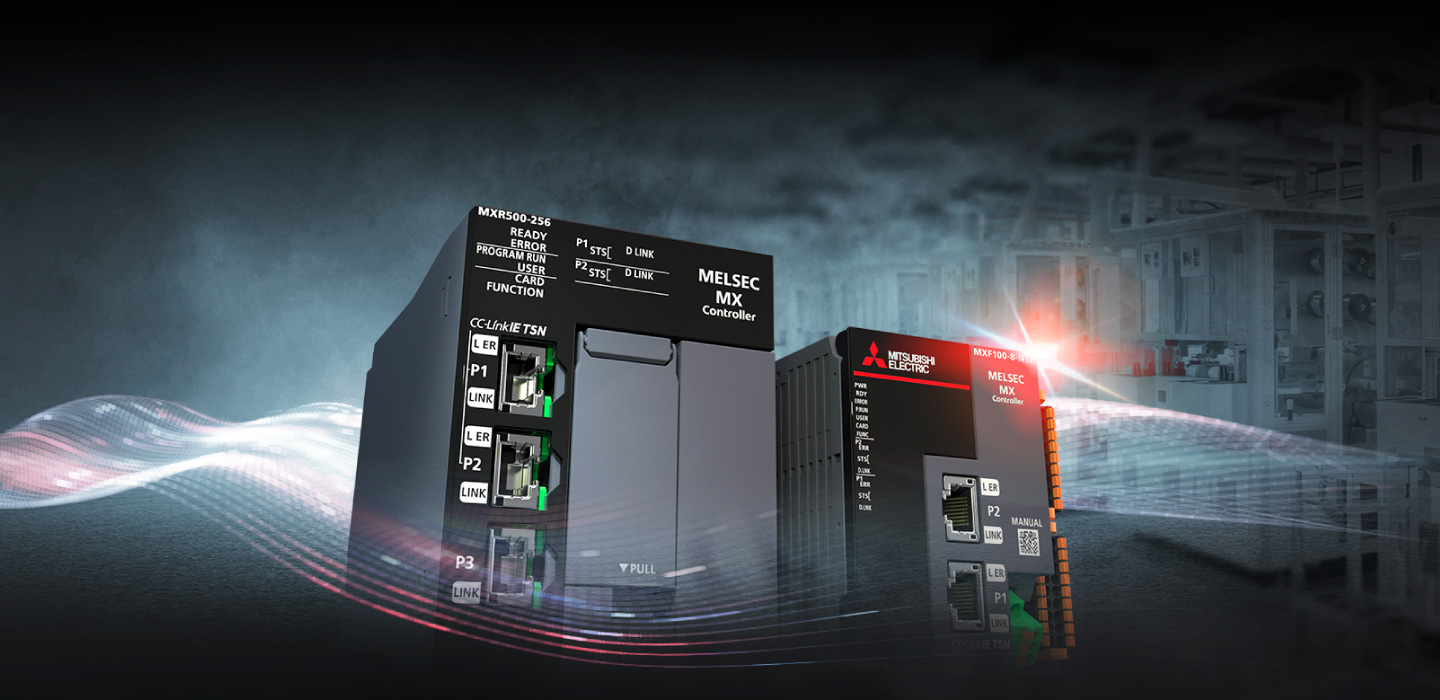

MELSEC MX Controller

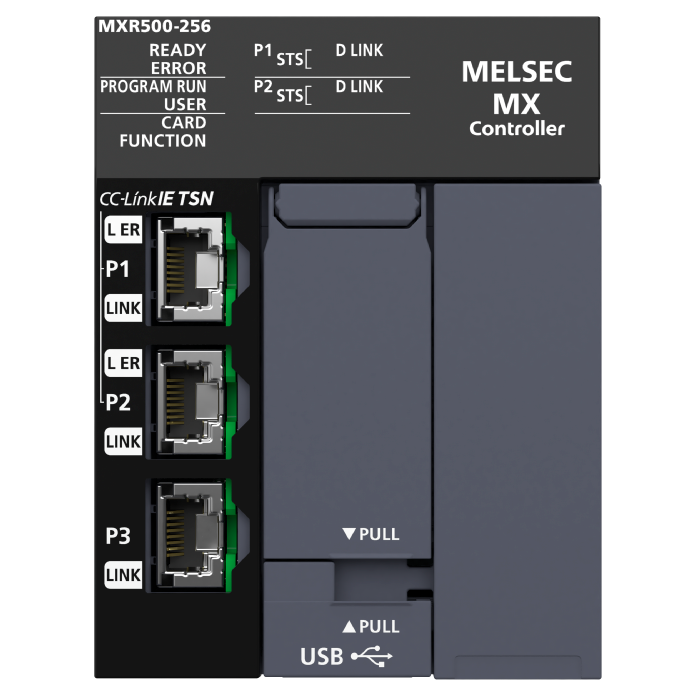

MX-R model (MXR500-256)
MX-R model

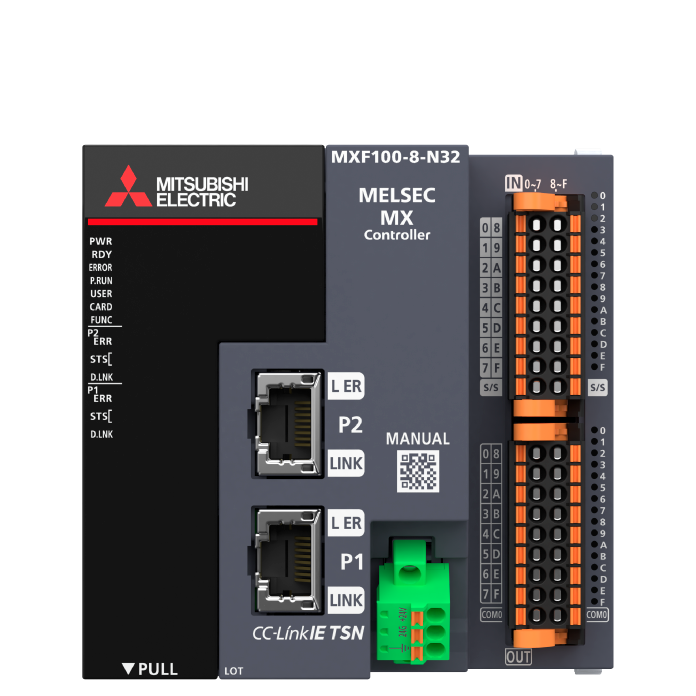

MX-F model (MXF100-8-N32)
MX-F model
CC-Link IE TSN
CC-Link IE TSN
EtherCAT NEW
Click here to see the differences between MX-R and MX-F
New EtherCAT-compatible models are now available in the MX-F lineup. MX-F model with EtherCAT support

Achieve multi-axis machine control with one controller

MX-R
MX-F

High-performance multi-core MPU integrating three types of control

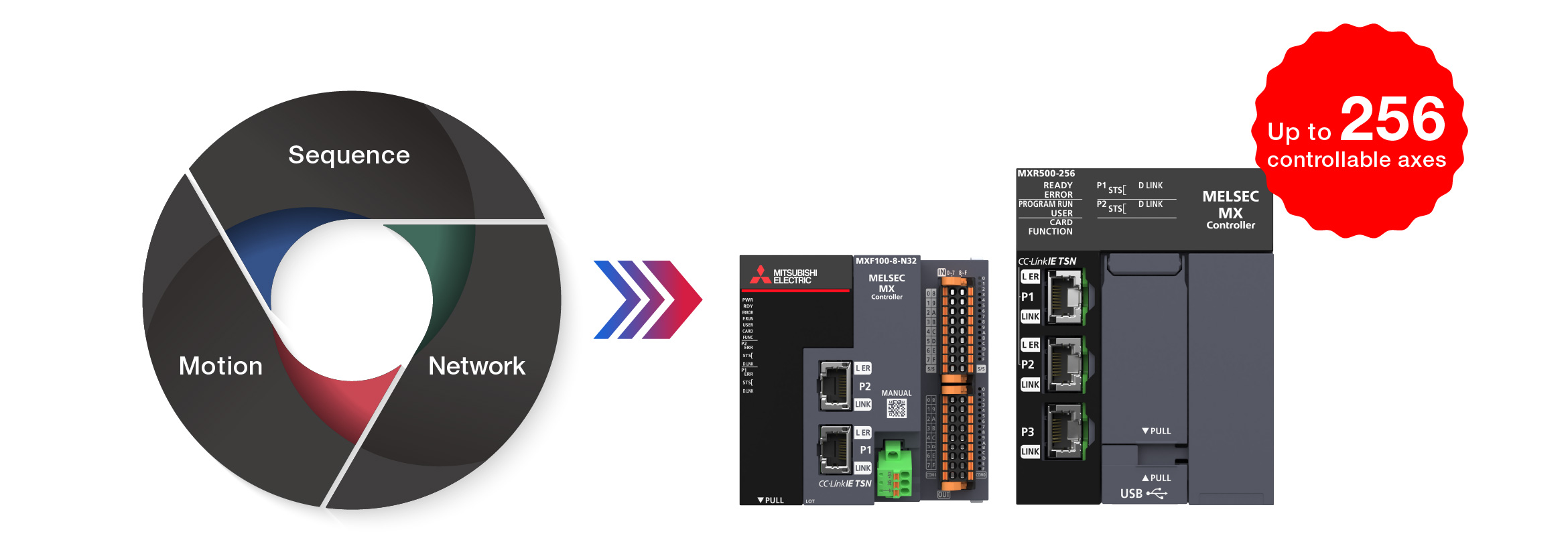

Sequence, motion and network control integrated in the MX-F and MX-R models. Up to 256 controllable axes

Optimizing control performance of entire system

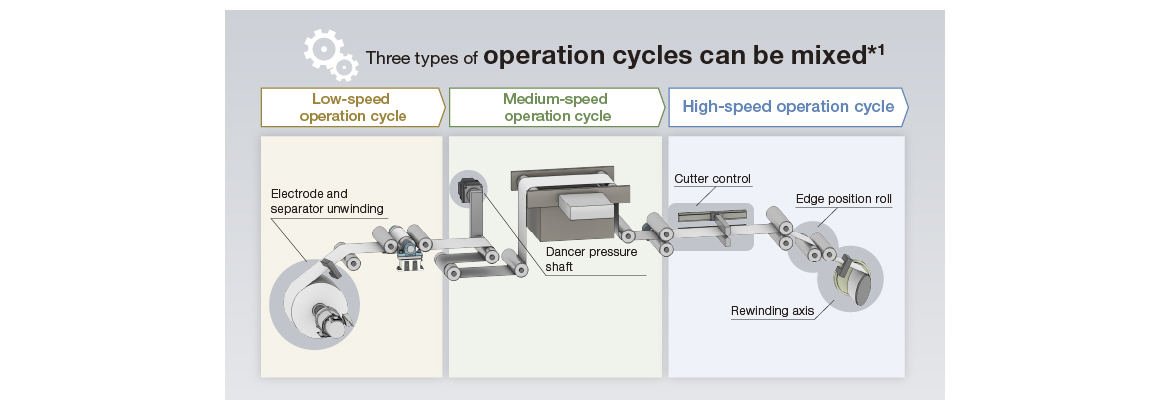

Three types of operation cycles can be mixed: low-speed, medium-speed and high-speed operation cycles

*1: MXF100-8-N32-EC and MXF100-16-N32-EC are not supported.

Build optimal systems balancing cost and performance

Enhanced engineering efficiency through tool integration

MX-R
MX-F

One tool for programming both sequence and motion control

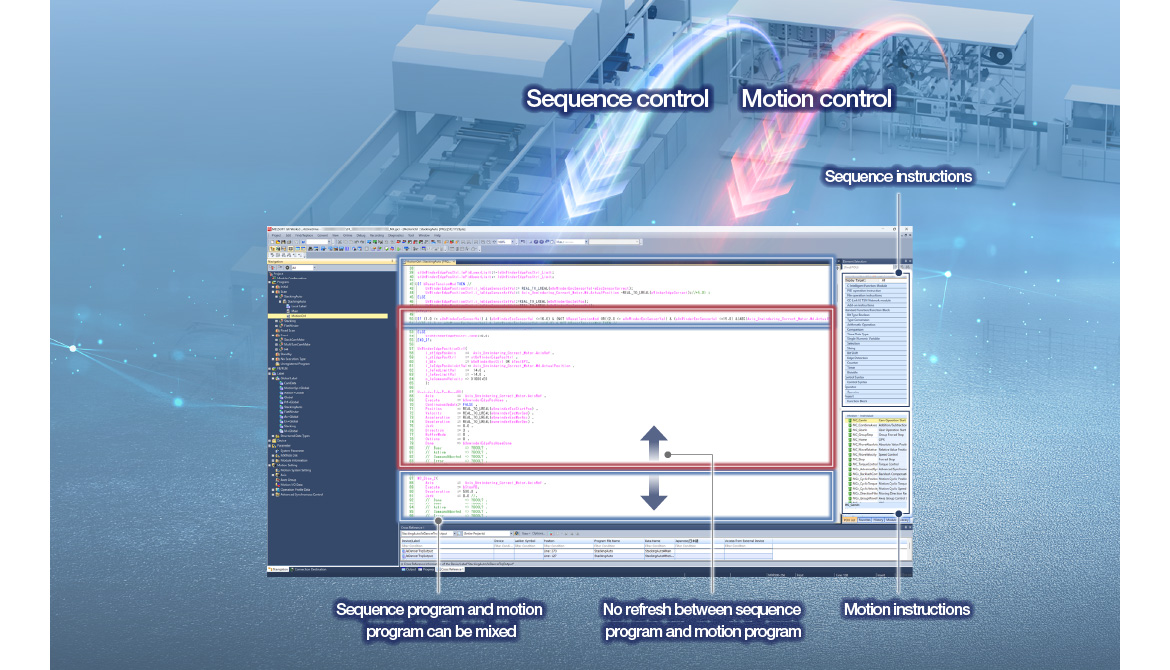

GX Works3 screen: sequence and motion programs can be mixed, with no refresh between them

Servo parameter setting also configurable with GX Works3

PLCopen
The PLCopen®-compliant Motion Control FB interface is standardized, making it easier for others than the original programmer to understand program content, reducing design and maintenance time.

Improved programming and debugging efficiency through program modularization and change history management

Recording function + AI-powered data flow analysis NEW

MX-R
MX-F: future support

Record the entire system’s operation and analyze data flows with AI

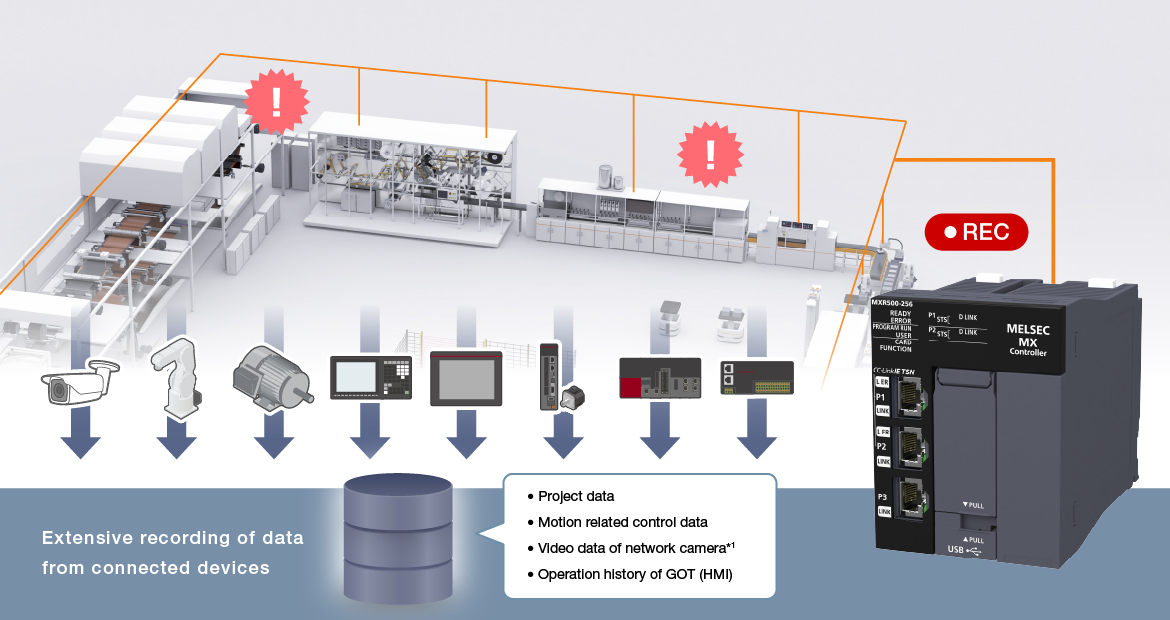

Extensive recording of data from connected devices: project data, motion related control data, video data of network cameras and operation history of GOT (HMI)

*1: A camera recorder module is required.

Quickly identify root causes to dramatically reduce on-site downtime

Compliant with the international security standard IEC 62443-4-2

MX-R
MX-F*1

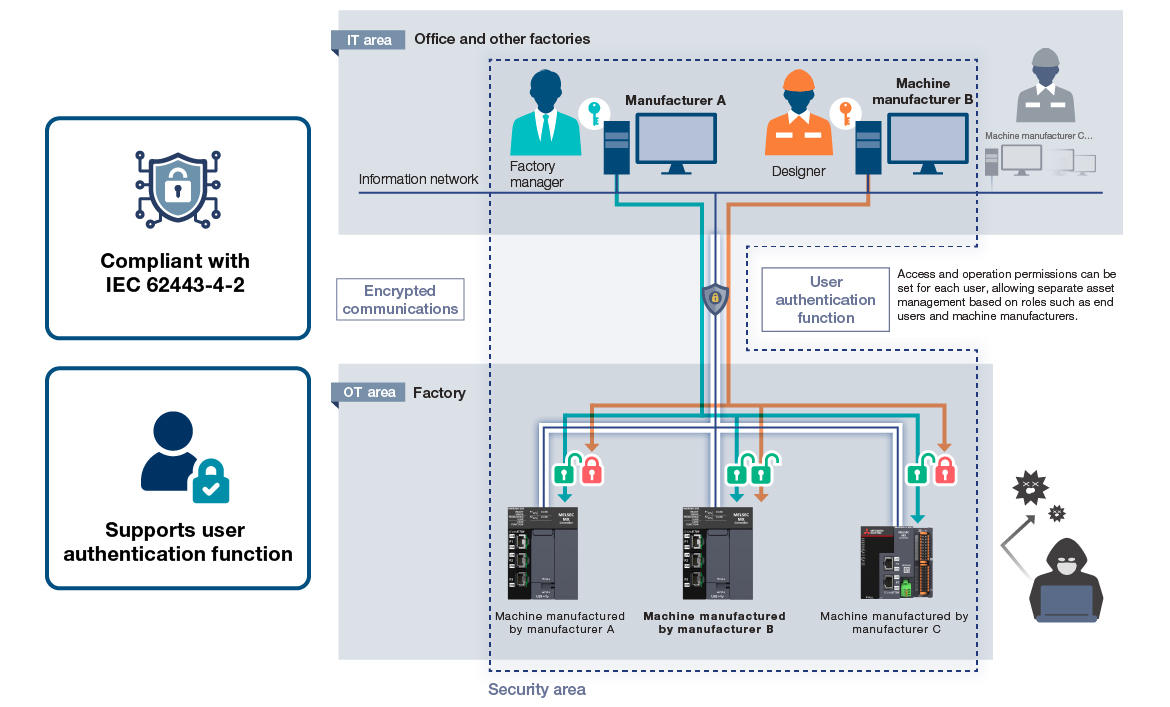

Compliant with IEC 62443-4-2 and supports a user authentication function: encrypted communications between the IT area and the OT area, with access and operation permissions set for each user

*1: MXF100-8-N32-EC and MXF100-16-N32-EC will be supported in the future.

Prevents eavesdropping and unauthorized access, helping protect your assets and avoid equipment malfunctions
