Network-related products |
Programmable Controllers MELSEC CC-Link IE Line Up

PCI Express ® bus type

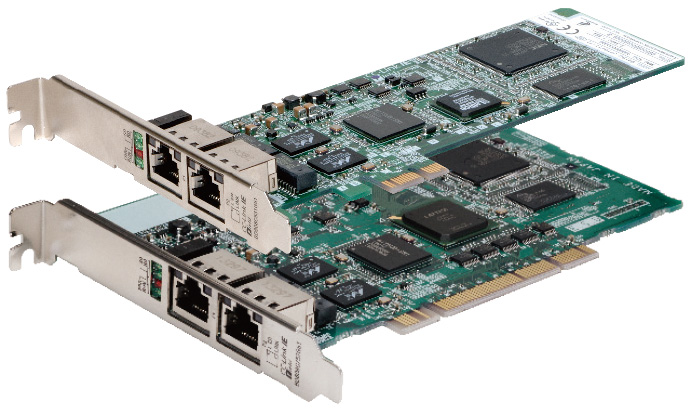

• Q81BD-J71GF11-T2

PCI/PCI-X bus type

• Q80BD-J71GF11-T2

• These interface boards connect computers or controllers supporting PCI Express ®/PCI/PCI-X interface to CC-Link IE Field Network
• Can be used as either a CC-Link IE Field Network master or local station ^*1

• *1.The sub-master function and motion function are not supported.

PCI Express ® bus type

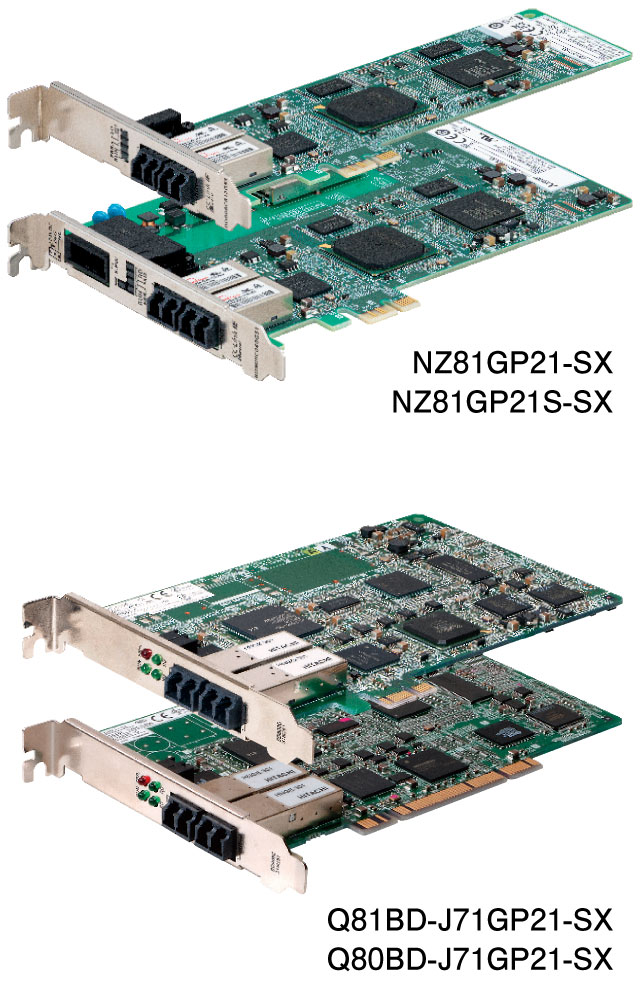

• NZ81GP21-SX NEW
• NZ81GP21S-SX NEW

PCI Express ® bus type

• Q81BD-J71GP21-SX
• Q81BD-J71GP21S-SX

PCI/PCI-X bus type

• Q80BD-J71GP21-SX
• Q80BD-J71GP21S-SX

• These interface boards connect computers or controllers supporting PCI Express ®/PCI/PCI-X interface to CC-Link IE Controller Network
• Can be used as either a CC-Link IE Controller Network control or normal station
• An interface board including external power supply input terminals maintains communication in the event that the computer loses power
• Supports link point (LB/LW) extension function ^*2
• By updating your board with the firmware update function, you can use new features at any time ^*2
• The redundant board function allows you to reduce single points of failure by setting up one computer (board) as a backup in a system where the other computer (board) operates as the control station ^*2*3

• *2.Only supported by NZ81GP21-SX and NZ81GP21S-SX
• *3.If you want to transfer tracking data between two computers (boards), you will need to create a program.

PCI Express ® bus type

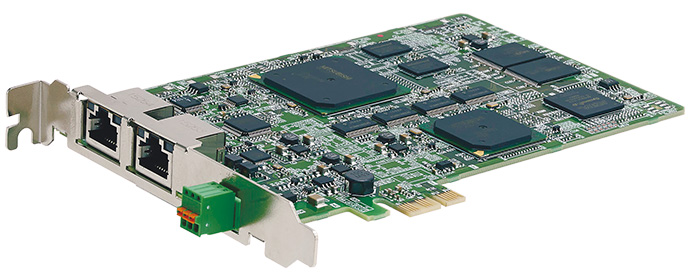

• MR-EM340GF

• Performs control of high-speed I/O and motion in one network, and provides a suitable system layout with highly flexible wiring
• Can be used as a CC-Link IE Field Network master station ^*4
• Combined with a computer, the board performs advanced motion control such as positioning, synchronous, and cam control with C++ programming (event-driven programs with interrupts are also supported)

• *4.The local, sub-master, and safety communication functions are not supported.
