Inverters-FREQROL-E Series　-FREQROL-E700- Excellent usability

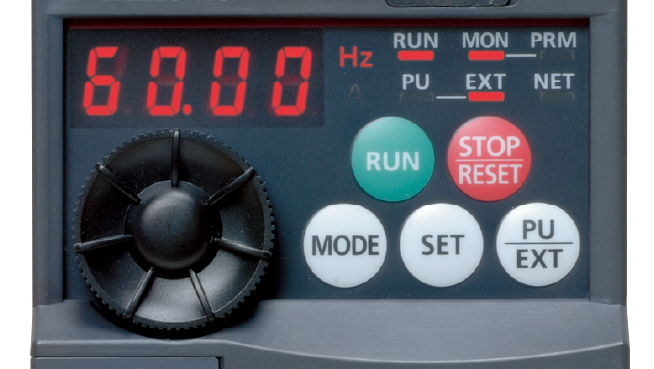

    Improved setting dial

    Easy setting with the Mitsubishi Electric setting dial.

    • Displayed numbers can be jumped by turning the setting dial quickly, and numbers can be changed one by one by turning it slowly, enabling speedy parameter setting.
    • The nonslip setting dial is easier to turn.

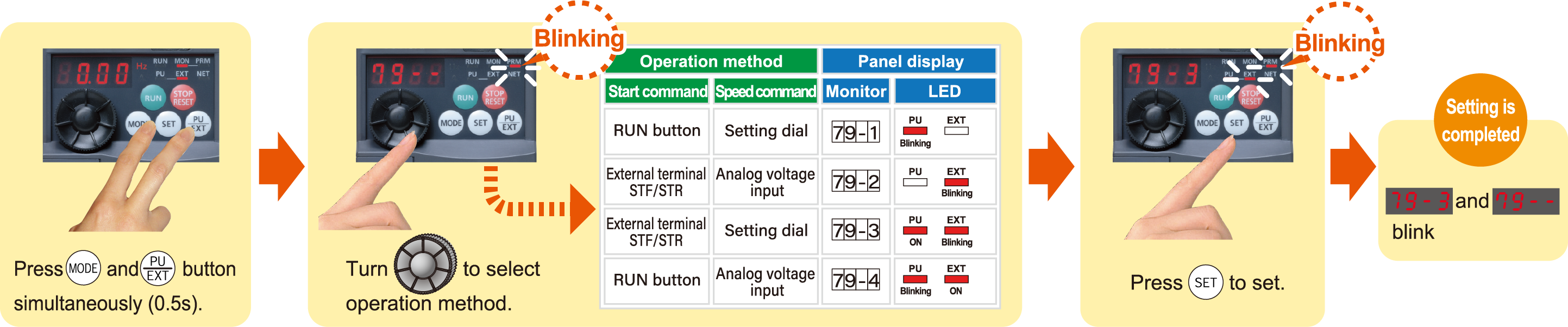

    Easy setting mode

    According to the desired command sources for start frequency and speed, Pr.79 can be set in simple steps.

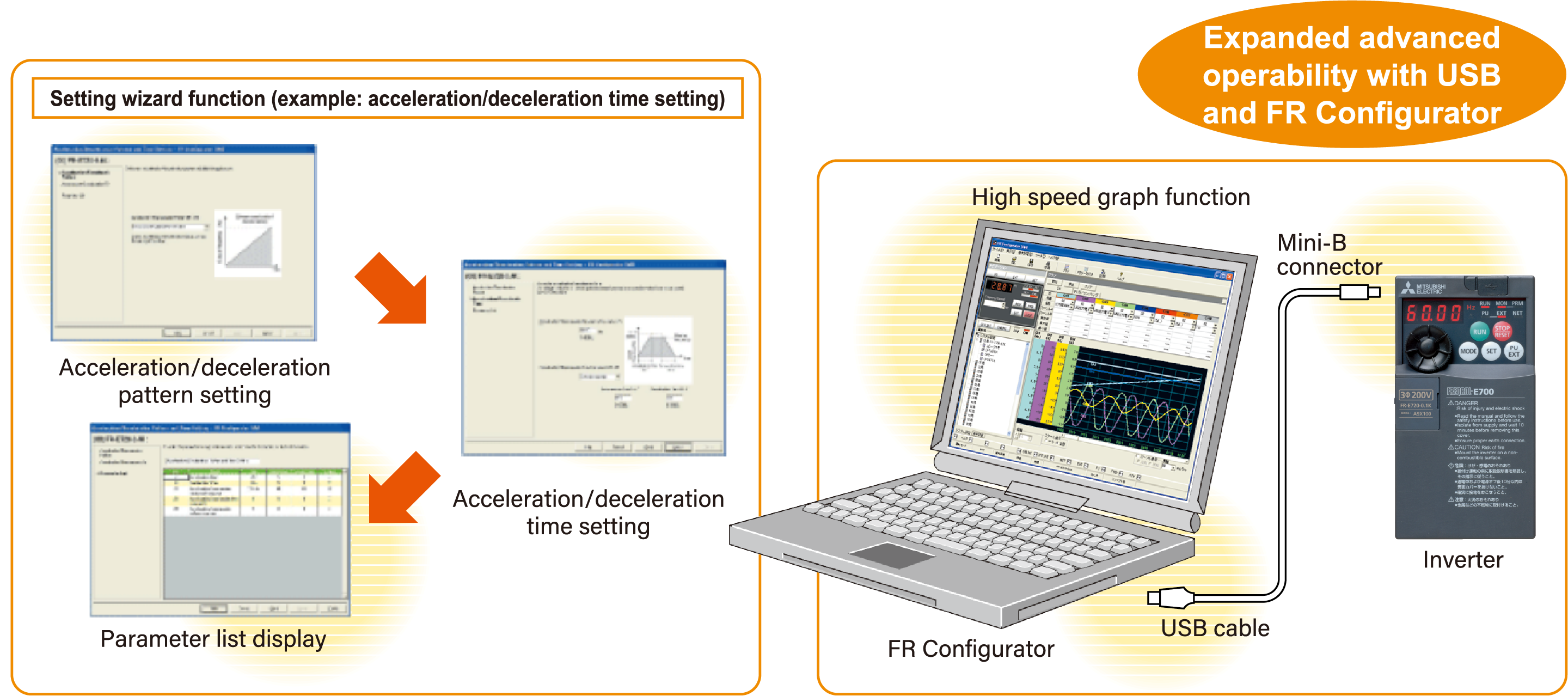

    With a provided USB connector, setting is easily done from a personal computer using FR Configurator

    An USB connector (mini-B connector) is provided as standard. The inverter can be easily connected without a USB-RS-485 converter.
    Wizard (interactive) function of FR Configurator (inverter setup software) provides setting support.
    In addition, a high-speed graph function with USB enables high speed sampling display.

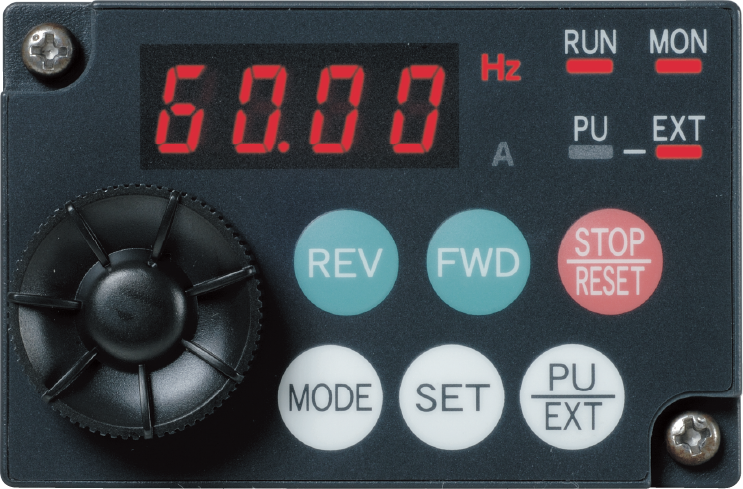

    Enclosure surface operation panel FR-PA07 (option)

    Optional enclosure surface operation panel (FR-PA07) can be connected.
    In addition, an operation panel for conventional model (FR-E500 series) can be connected.

    The operation panel of the inverter cannot be removed.
    A parameter unit connection cable (FR-CB20□) is separately required.

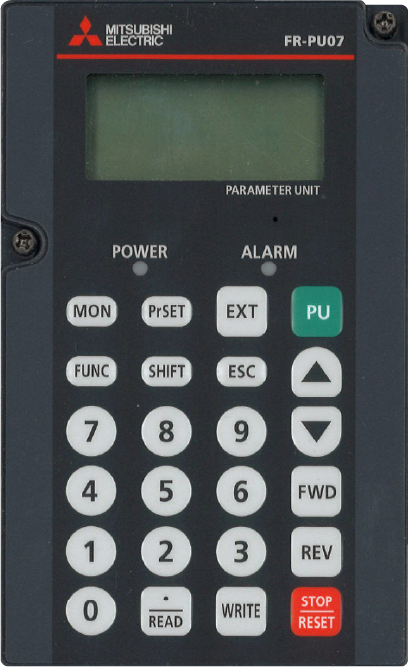

    Parameter unit FR-PU07/FR-PU07BB(-L) (option)

    The FR-PU07/FR-PU07BB(-L), an optional parameter unit, can be connected as well.

    A parameter unit connection cable (FR-CB20□) is separately required.
    (Parameter unit connection cable FR-CB203 (3m) is enclosed with FR-PU07BB(-L).)

    • Setting such as direct input method with a numeric keypad, operation status indication, and help function are useful.
      The display language can be selected from 8 languages.
    • Parameter settings of maximum of three inverters can be stored.
    • A battery pack type (FR-PU07BB(-L)) allows parameter setting and parameter copy without powering on the inverter.

    To use a parameter unit with battery pack (FR-PU07BB) outside of Japan, order a “FR-PU07BB-L” (parameter unit type indicated on the package has L at the end).
