Inverters-FREQROL-F Series -FREQROL-F700PJ- Model Configuration
- Feature
- Specification
- Standards
- Discontinued
Inverter
Precautions
- Never drive an IPM motor in the IM drive setting.
- Use the same IPM motor capacity as the inverter capacity.
- •For IPM motor, use an MM-EFS or MM-EF series motor.
Please contact us regarding a combination with other manufacturer's IPM motor.
-

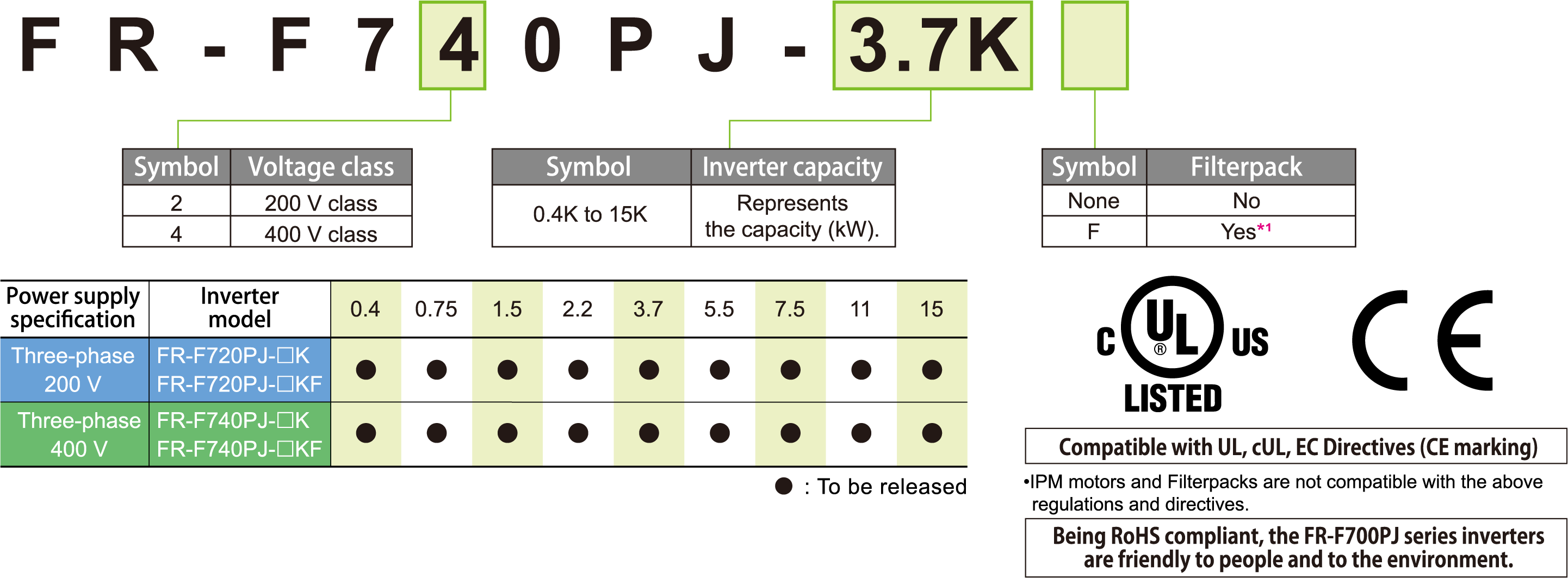

*1The inverter with Filterpack consists of an inverter and a Filterpack.
The inverter carries the rating plate, "FR-F7☐0PJ-☐KF," and the Filterpack carries the rating plate "FR-BFP2-☐K".

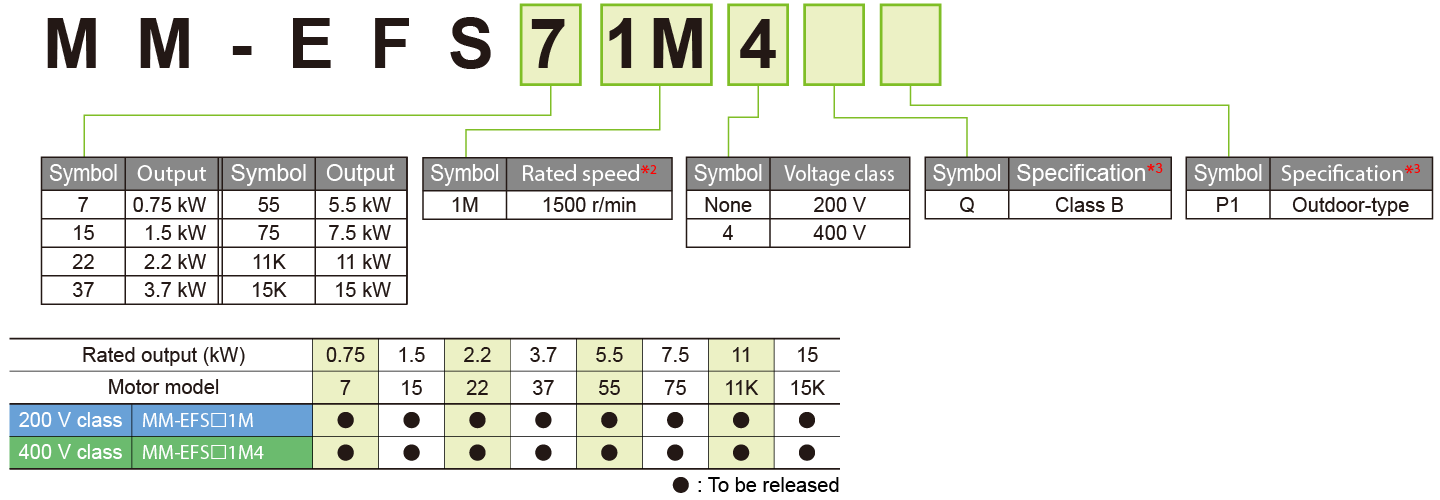

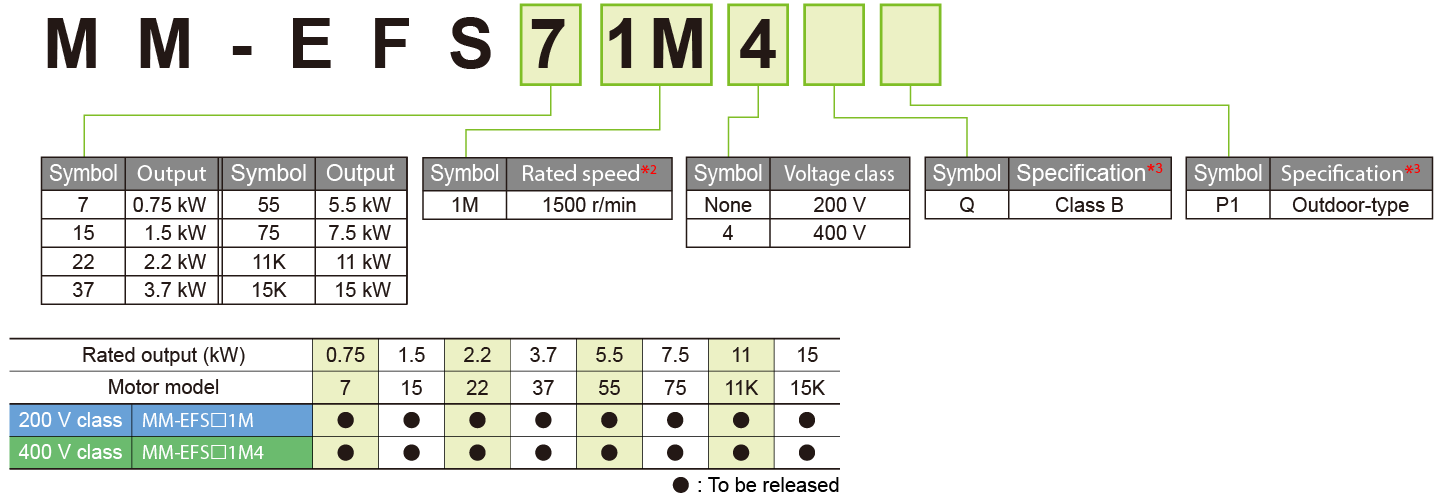

Premium high-efficiency IPM motor
Precautions
- MM-EFS series IPM motors cannot be driven with commercial power supply.
- The total wiring length for an IPM motor should be 100 m or less.
- Only one IPM motor can be connected to an inverter.
- *2Also applicable to an application with the rated speed of 1800r/min.
-
*3The outdoor-type and class B are semi-standard models.
Please contact your sales representative for a special specification such as the long-axis type, flange shape, and salt-proof type.
