MELSERVO-J5 Series Linear Servo Motor Model Designation

• LM-H3 Series
• LM-AJ Series
• LM-F Series
• LM-K2 Series
• LM-U2 Series
• LM-AU Series
• Related Link

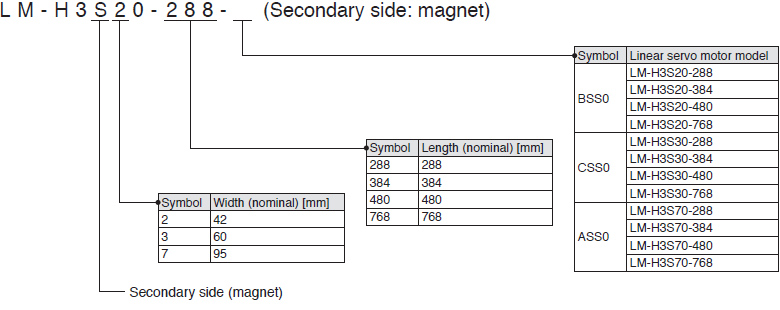

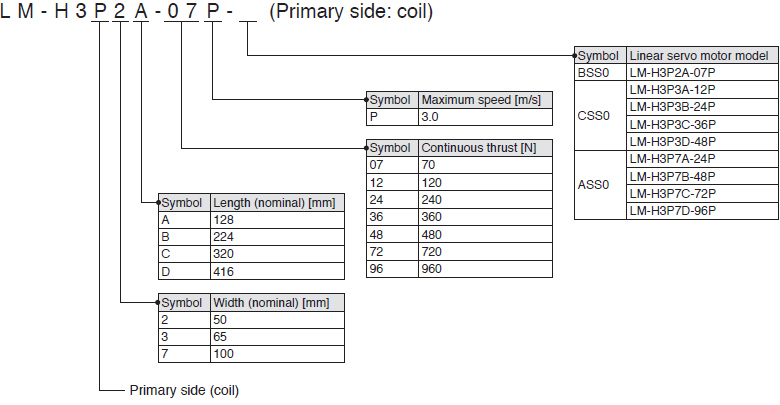

LM-H3 Series ^{(Note 1)}

• Notes:

• 1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

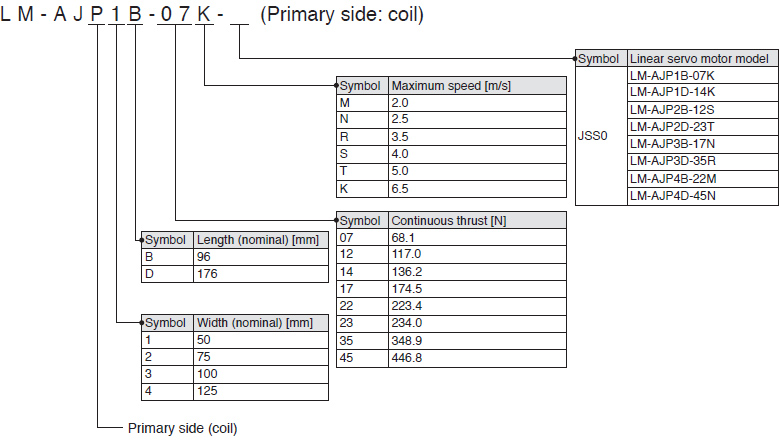

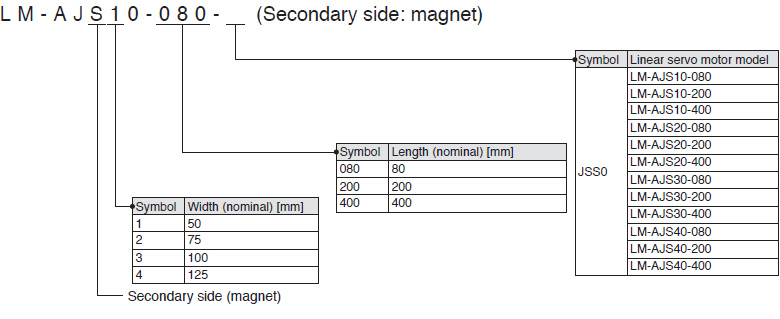

LM-AJ Series ^{(Note 1)}

• Notes:

• 1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

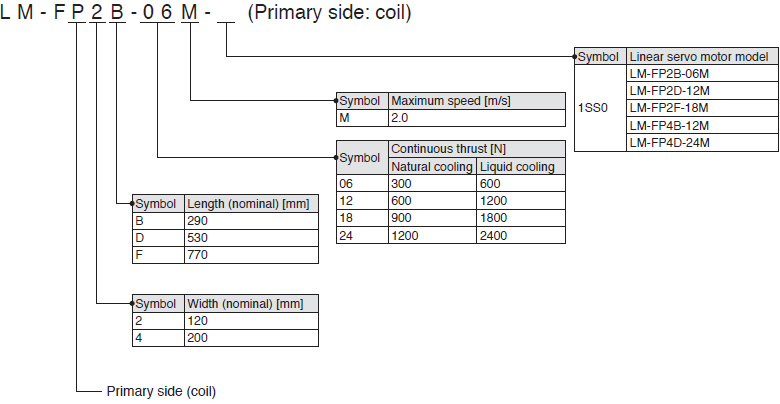

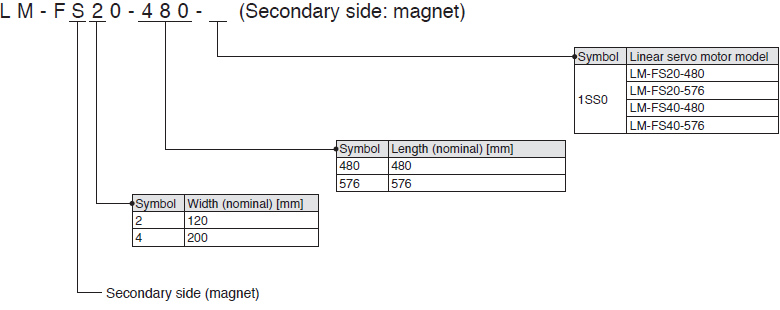

LM-F Series ^{(Note 1)}

• Notes:

• 1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

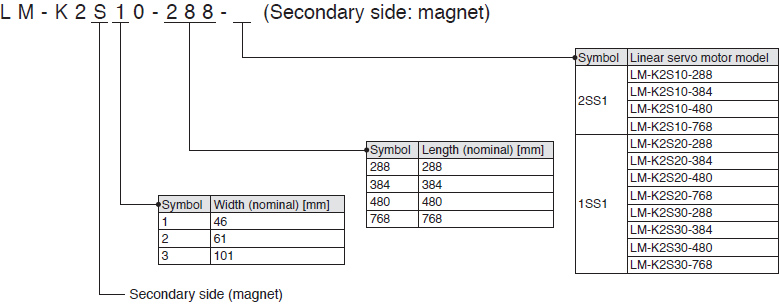

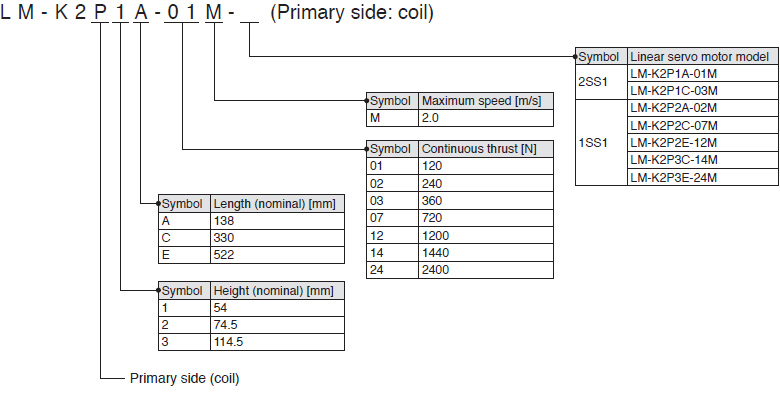

LM-K2 Series ^{(Note 1)}

• Notes:

• 1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

LM-U2 Series ^{(Note 1)}

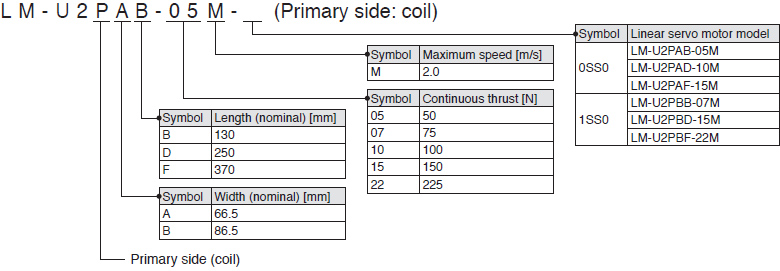

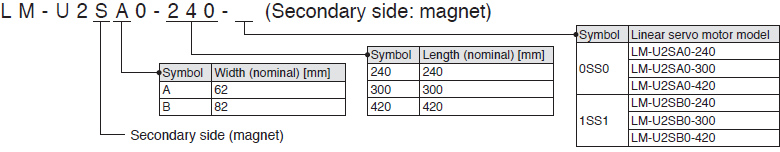

LM-U2 (Medium Thrust) Series

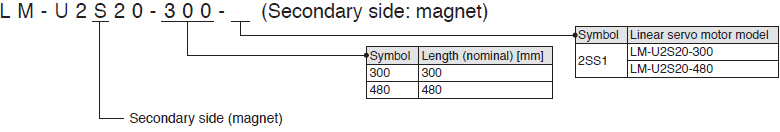

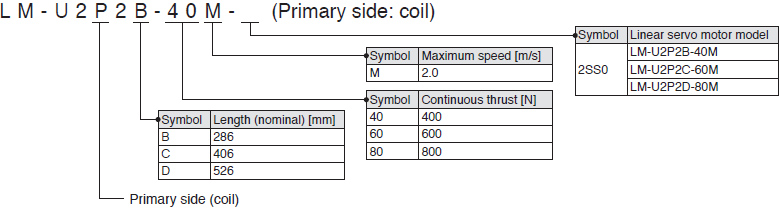

LM-U2 (Large Thrust) Series

• Notes:

• 1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

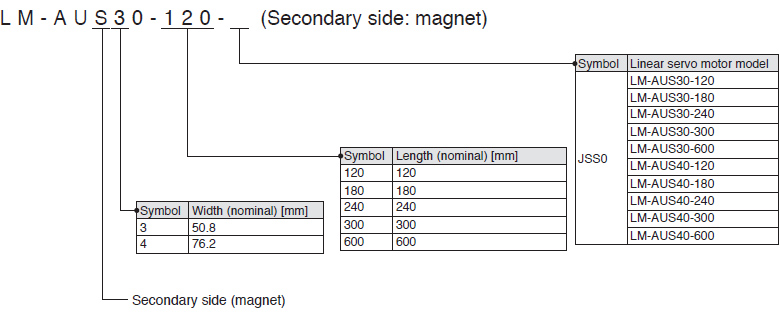

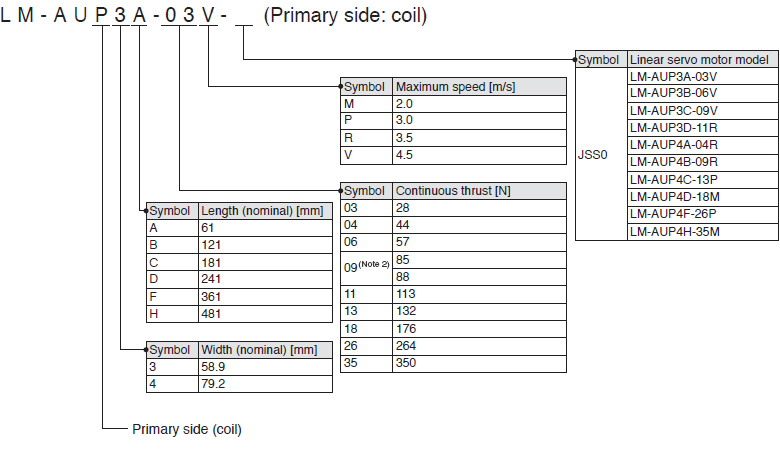

LM-AU Series ^{(Note 1)}

• Notes:

• 1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
• 2. The continuous thrust for LM-AUP3C-09V-JSS0 is 85 N.
  The continuous thrust for LM-AUP4B-09R-JSS0 is 88 N.
