Energy Saving Supporting DevicesEnergy Saving Data Collecting Servers

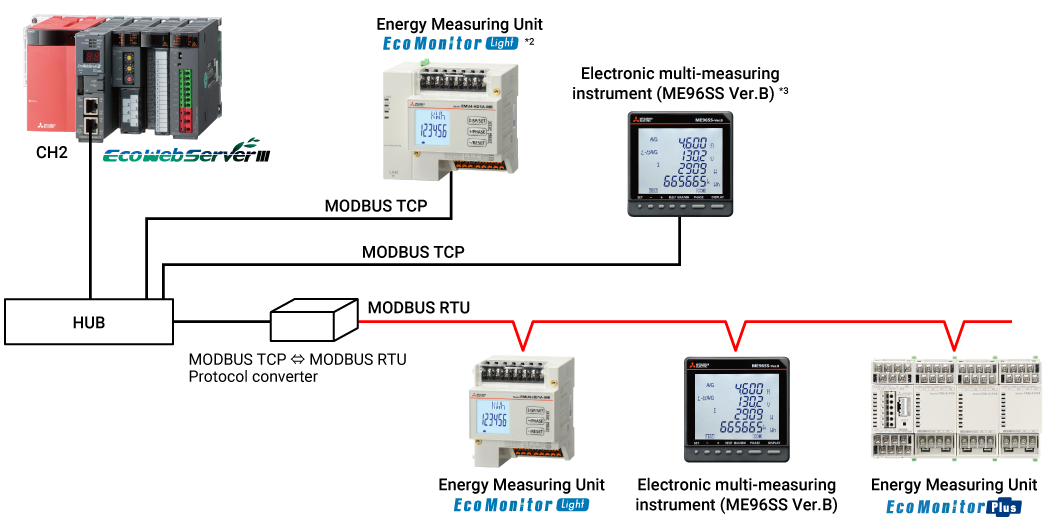

• Using the LAN interface (CH2) of EcoWebServerIII, realize MODBUS TCP communication.
  (As with the case of MC protocol communication)
• Using the LAN CH2 of EcoWebServerIII, via MODBUS TCP ⇔ MODBUS RTU converter, realize MODBUS RTU communication. *1

• *1MODBUS TCP ⇔ RTU converter is required for MODBUS RTU communication.
  That has been functionally verified is SI-485 MB, SI-485 MB2 by LINEEYE CO., LTD.
• *2Only EMU4-FD1-MB can be connected and it needs an optional unit (Model name: EMU4-CM-MT)
• *3It needs an optional unit (Model name: ME-0000MT-SS96)

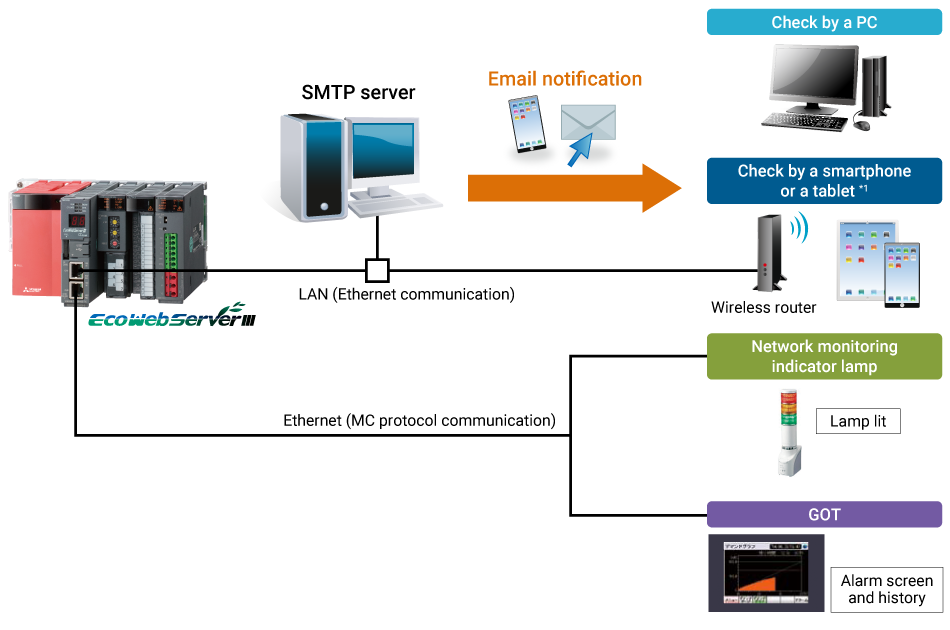

• It is possible to send an email notification and an alarm output in case of the occurrence of target excess or facility abnormality, so you can catch a condition change at once. It is possible to accelerate the PDCA cycle from problem finding to measure taking and improve the productivity.
• Smartphones and tablets are supported, so you can check the alarm contents and email notifications on the site.

Alarm Output/Email Notification

• *1Ask the network administrator (or administration department) in your company for details.

• Information collected on the EcoWebServerIII can be displayed on the GOT.
• By displaying the alarm state/measuring value for energy information/demand, real-time monitoring at the site and urgent countermeasures are possible.

* Demand alarm function can be realized Only MES3-255C-DM-EN.

* MES3-255C-DM-EN only

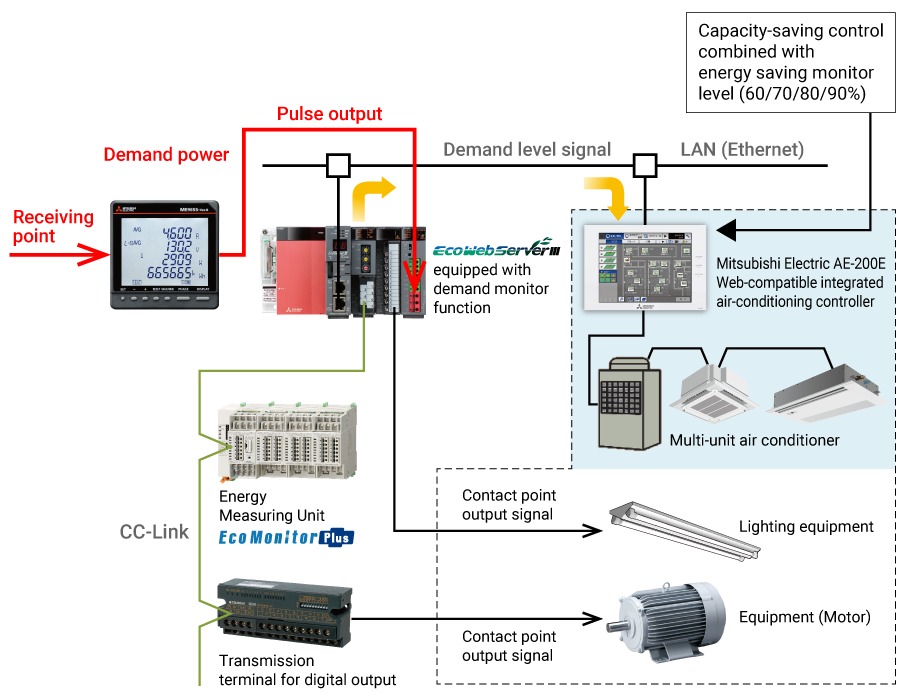

• Demand control possible by interconnecting with Mitsubishi Electric Web-compatible integrated controller "AE-200E", "G-150AD", etc.
  Additionally, automatic control of load possible through contact point output via main unit of EcoWebServerIII and CC-Link.
