มอเตอร์เกียร์แบบเพลาขนานคุณสมบัติ

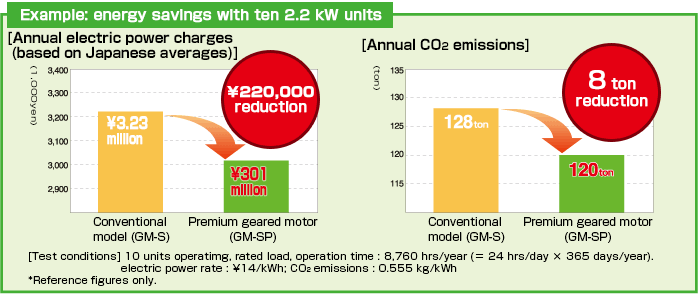

Achieves energy savings with a premium efficiency compliant with IE3
Achieves low noise and low vibration levels that are top class in the industry

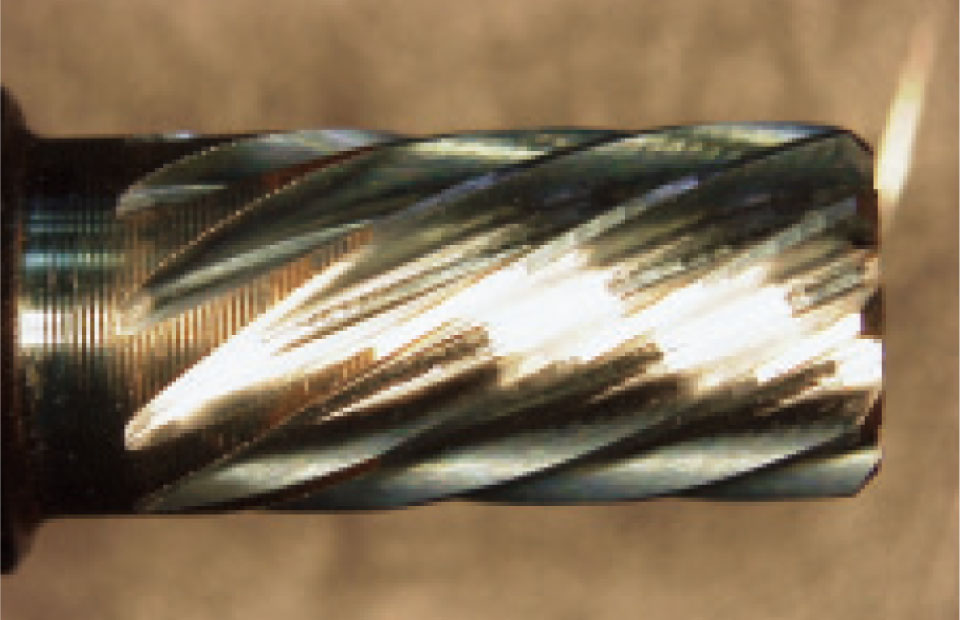

These motors deliver low-noise operation through adoption of special precision RGC machining of the first gear and grinding finish of the second gear.
RGC: Round-bar Gear Cutting. RGC is a technique for gear cutting after induction hardening, by which high-hardness, high-precision gears can be produced with no hardening strain.
ไลน์อัป includes wide ช่วง of specifications
Our broad lineup of geared motors provides various specifications, allowing you to choose the product best matched to your needs.
GM-S, SP manufacturing scale (capacity × moderating ratio)
GM-S Series
GM-SP Series
| 3 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 45 | 50 | 60 | 80 | 90 | 100 | 120 | 160 | 200 | 270 | 360 | 450 | 540 | 720 | 900 | 1200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.1kW | ||||||||||||||||||||||||
| 0.2kW | ||||||||||||||||||||||||
| 0.4kW | ||||||||||||||||||||||||
| 0.75kW | ||||||||||||||||||||||||
| 1.5kW | ||||||||||||||||||||||||
| 2.2kW |
มาตรฐาน specifications
| Voltage | 200/200/220V |
|---|---|
| Frequency | 50/60/60Hz |
| Installation location | ภายในอาคาร |
| Mounting direction | Free การติดตั้ง |
GM-D, DP, LJP manufacturing scale (capacity × moderating ratio)
GM-D Series
GM-DP Series
GM-LJP Series
| 3 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 45 | 50 | 60 | 80 | 90 | 100 | 120 | 160 | 200 | 270 | 360 | 450 | 540 | 720 | 900 | 1200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.4kW | ||||||||||||||||||||||||
| 0.75kW | ||||||||||||||||||||||||
| 1.5kW | ||||||||||||||||||||||||
| 2.2kW | ||||||||||||||||||||||||
| 3.7kW | ||||||||||||||||||||||||
| 5.5kW | ||||||||||||||||||||||||
| 7.5kW | ||||||||||||||||||||||||
| 11kW | ||||||||||||||||||||||||
| 15kW | ||||||||||||||||||||||||
| 22kW | ||||||||||||||||||||||||
| 30kW | ||||||||||||||||||||||||
| 37kW |
มาตรฐาน specifications
| Voltage | 200/200/220V |
|---|---|
| Frequency | 50/60/60Hz |
| Installation location | ภายในอาคาร |
| Mounting direction | Free การติดตั้ง (grease lubrication) Horizontal การติดตั้ง (oil lubrication) |
