MELSERVO-JE Series Servo Amplifier ตัวอย่างการใช้งานเครื่องจักร

ตัวอย่างการใช้งานเครื่องจักร

Advanced การควบคุมแบบซิงโครนัส, การควบคุมแบบแคม, and ฟังก์ชันตรวจจับมาร์ก

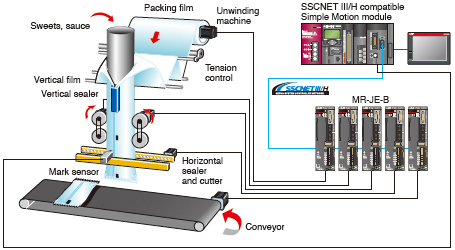

Packing Machines

When the machine packs food, the whole process is synchronized by using การควบคุมแบบซิงโครนัส and การควบคุมแบบแคม.
The packing film is cut using the registration mark as a reference with the ฟังก์ชันตรวจจับมาร์ก.

Machine resonance suppression filter, instantaneous power failure tough drive,
and lost motion compensation

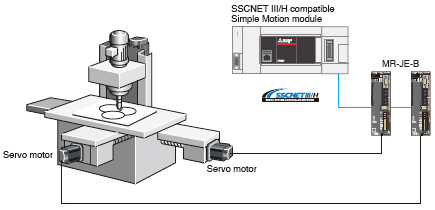

Simplified Machine Tools

In positioning operation of XY table, workpiece will be processed in high quality by using machine resonance suppression filter that suppresses machine vibration and lost motion compensation ฟังก์ชัน that suppresses quadrant protrusion.

Multi-axis synchronous control, tightening & press-fit control, machine resonance suppression filter

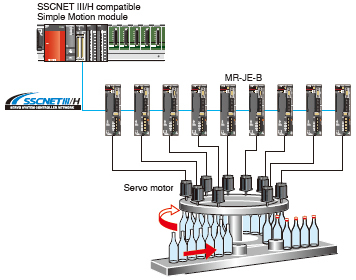

Cap Tightening Machines

Position control can be switched to torque control and vice versa. "Tightening & press-fit control" is also available, switching to torque control without stopping the servo motor during the positioning operation. Since the current position is controlled in any control modes, the positioning is carried out smoothly even after switching back to the position control.

One-touch tuning, advanced vibration suppression การควบคุม II, and การควบคุมแบบแคม

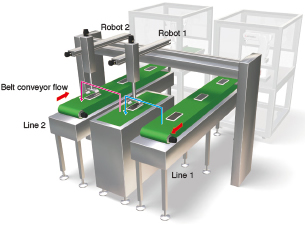

Robot Material Handling

Servo gains are easily adjusted by using advanced one-touch tuning ฟังก์ชัน. In addition, the advanced vibration suppression การควบคุม II suppresses low-frequency vibration of a robot hand, resulting in shorter settling time and machine tact time.

Multi-axis การควบคุมแบบซิงโครนัส, ความเร็ว/การควบคุมแรงบิด, and robust filter

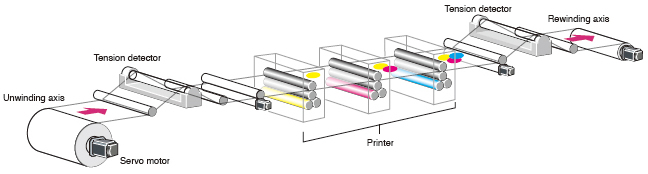

Unwinders & Rewinders

SSCNETIII/H allows to configure a multi-axis synchronous control system even for unwinders & rewinders with multiple axes. For machines with a machining axis, further high-level synchronous control system is possible by using cam control and advanced synchronous control. Because the current position is controlled during the speed or torque control, positioning based on the absolute position coordinate is possible when the control mode is switched to the position control.

Machine resonance suppression filter, advanced vibration suppression การควบคุม II,
and high-resolution encoder

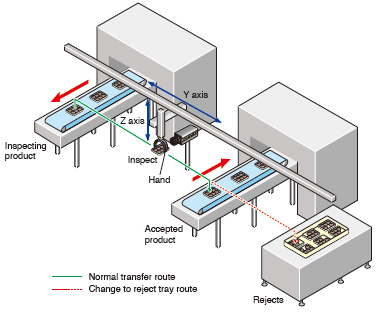

Testing System

สูง gain การควบคุม of servo is available by applying machine resonance suppression filters, enabling high-ความเร็ว operation patterns.
In addition, advanced vibration suppression การควบคุม II suppresses vibrations of a hand and an inspection camera, reducing tact time and enabling high quality inspection.
