concept
Advanced One-Touch Tuning
Servo gains are adjusted with one-touch ease without a personal computer.
Tolerance against Instantaneous Power Failure
The instantaneous power failure tough drive ฟังก์ชัน and the large capacity capacitor reduce machine downtime.
Absolute Position Detection System
Absolute position detection system can be easily configured with MR-JE-B servo amplifier.
ในตัว Positioning ฟังก์ชัน
MR-JE-A has a built-in positioning ฟังก์ชัน, enabling positioning operation with point table method, etc. Equipped with advanced ฟังก์ชัน such as simple cam and mark detection.
SSCNETIII/H
MR-JE-B is compatible with 150 Mbps full duplex high-ความเร็ว optical network SSCNETIII/H, achieving high-response system.
Fast and Accurate
The dedicated engine enables ความเร็ว frequency response of 2.0 kHz, shortening the tact time.
สูง ความละเอียด Encoder
The servo motor is equipped with 131072 pulses/rev (17-bit) high-resolution encoder, achieving high accuracy.
Energy Conservation
The large capacity main circuit capacitor allows the regenerative energy to be used effectively, reducing energy consumption.
Compliance to Global มาตรฐาน
Global servo, MR-JE Series, complies with global standards as standard.
ซิงก์ and ซอร์ส Connections
Command pulse input and digital input/output are compatible with both sink and source ชนิด connections.
Global การสนับสนุน
FA Centers located throughout the world provide attentive services to support users.

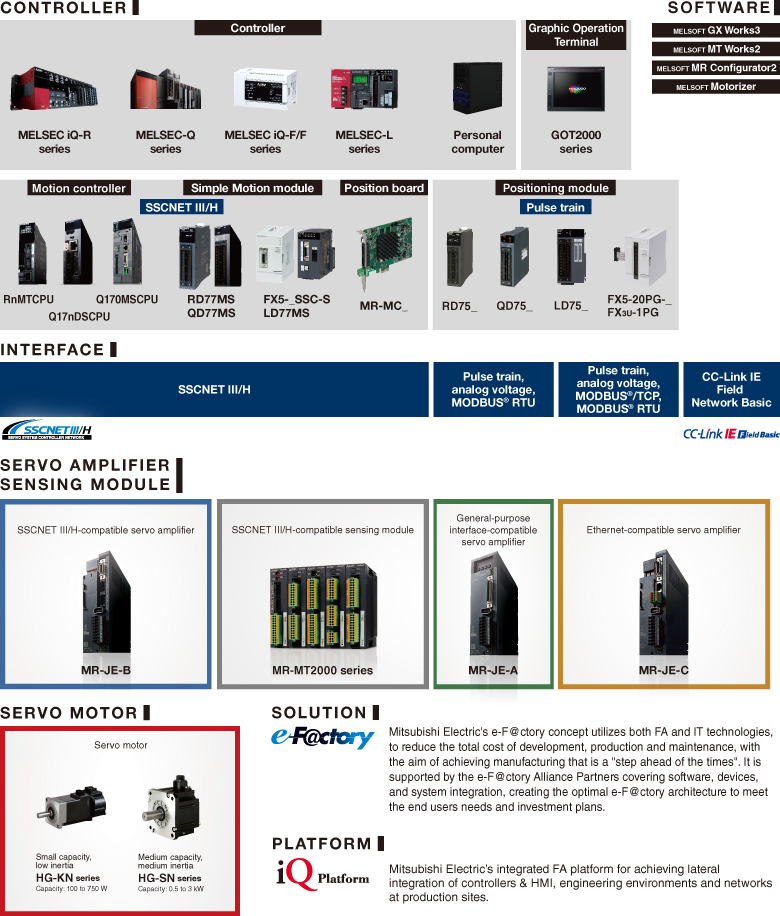

Servo System
LINE UP
| รุ่น | Power supply specification |
Rated output [kW] | Command interface | Control mode | |||||
|---|---|---|---|---|---|---|---|---|---|
| SSCNETIII/H | Pulse train | อะนาล็อก voltage |
Position | ความเร็ว | Torque | Positioning ฟังก์ชัน |
|||
| MR-JE-_B | 3 เฟส 200 V AC | 0.1, 0.2, 0.4, 0.6, 0.75, 1, 2, 3 |
● | − | − | ● | ● | ● | − |
| MR-JE-_A | 3 เฟส 200 V AC | 0.1, 0.2, 0.4, 0.6, 0.75, 1, 2, 3 |
− | ● | ● | ● | ● | ● | ● |
| Series | Rated ความเร็ว [r/min] |
Maximum ความเร็ว [r/min] |
Rated output [kW] |
With electro- magnetic เบรก (B) |
Oil seal (J) |
IP rating*2 |
|---|---|---|---|---|---|---|
| HG-KN Series | 3000 | 5000 | 0.1, 0.2, 0.4, 0.75 | ● | ● | IP65 |
| HG-SN Series | 2000 | 3000/2500*1 | 0.5, 1, 1.5, 2, 3 | ● | ● | IP67 |
- *1. The maximum ความเร็ว of HG-SN302J is 2500 r/min. *2. The shaft-through portion is excluded.
