Vision Sensor
Features Vision Sensor VS80
This Series has been discontinued in September 2025.

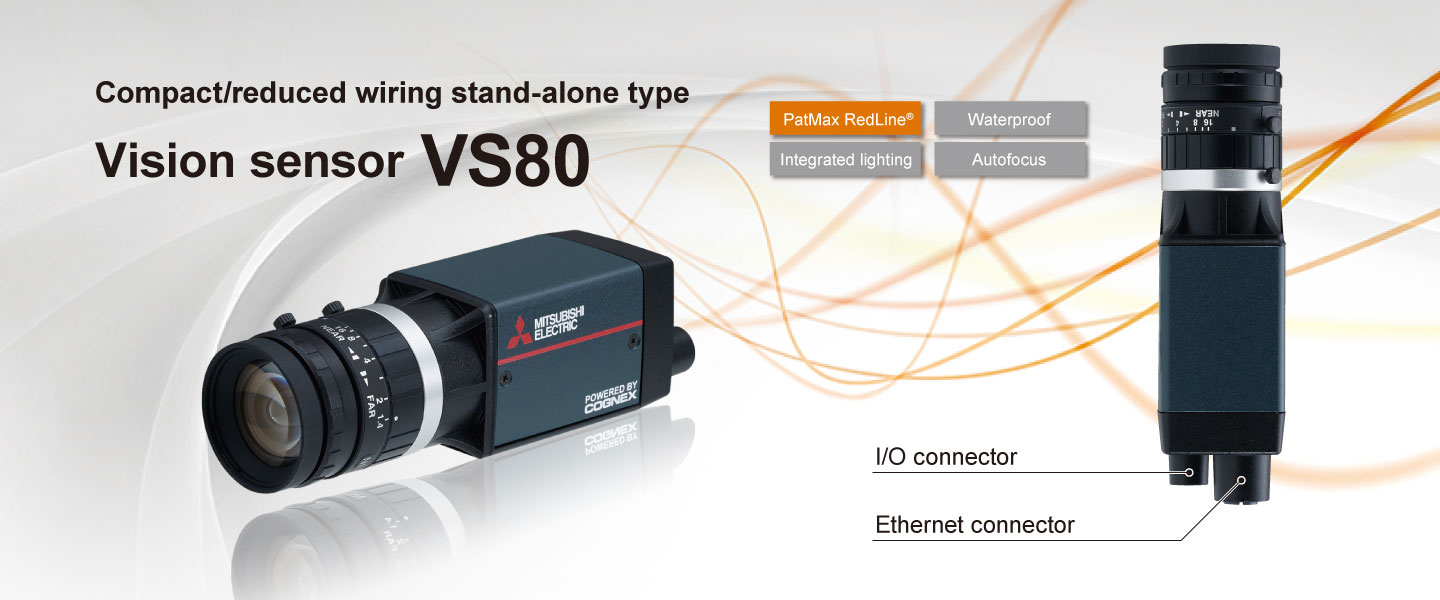

Compact vision with reduced wiring fits anywhere

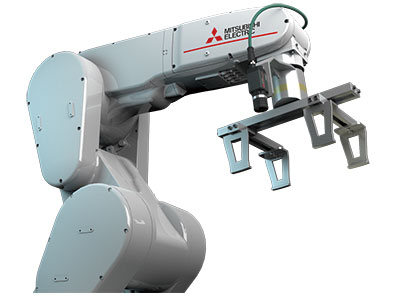

Ultra-compact-size sensors (31 mm × 31 mm × 75 mm) can be installed at the maximum angle of 45 degrees. The VS80 integrates into tight spaces in the machinery, hard-to-reach spaces between machines, and on the robot hand.
PoE *1 minimizes cabling
The sensor with PoE can be connected with one dedicated cable, minimizing cabling.
*1.Power Over Ethernet
Product lineup
Select products according to applications.
■Monochrome
| Item | VS80M-100 VS80M-100-E |
VS80M-200 VS80M-200-□ |
VS80M-400 VS80M-400-□ |
VS80M-202 VS80M-202-□ |
VS80M-402 VS80M-402-□ |
|
|---|---|---|---|---|---|---|
| Image resolution (pixels) | 640×480 | ● | ● | ● | — | — |
| 1600×1200 | — | — | — | ● | ● | |
| Maximum image acquisition speed | (frame/s) | 217 | 53 | |||
| Processor performance *2 | (times) | 1 | 1.5 | 2 | 1.5 | 2 |
| PatMax RedLine ® | VS80M-□-R, VS80M-□-ER: supported VS80M-□, VS80M-□-E: not supported *3 |
|||||
| EasyBuilder | ● | ● | ● | ● | ● | |
| Spreadsheet | VS80M-□、VS80M-□-R: supported VS80M-□-E、VS80M-□-ER: not supported *3 |
|||||
■Color
| Item | VS80C-100 | VS80C-200-R | VS80C-400-R | VS80C-202-R | VS80C-402-R | |
|---|---|---|---|---|---|---|
| Image resolution (pixels) | 640×480 | ● | ● | ● | — | — |
| 1600×1200 | — | — | — | ● | ● | |
| Maximum image acquisition speed | (frame/s) | 135 | 33 | |||
| Processor performance *2 | (times) | 1 | 1.5 | 2 | 1.5 | 2 |
| PatMax RedLine ® | Not supported | Supported | ||||
| EasyBuilder | ● | ● | ● | ● | ● | |
| Spreadsheet | Supported | |||||
- *2.Magnification based on the VS80M-100-E
- *3.Please refer to Product list for details.
Working distance

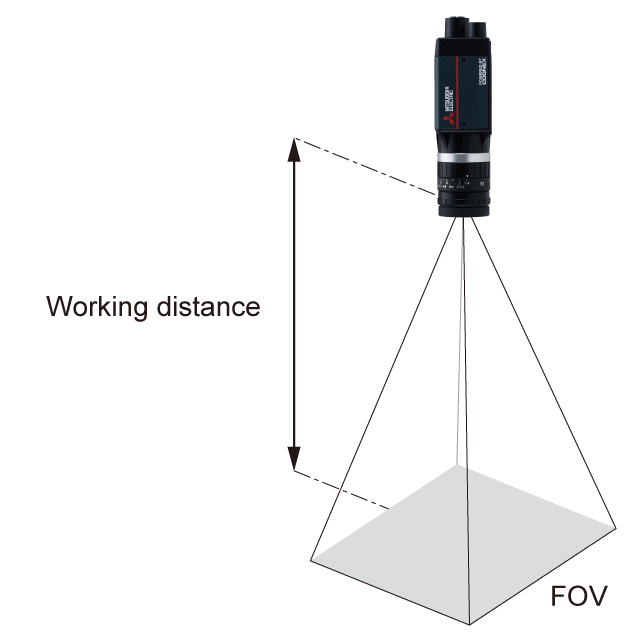

The distance from a lens to an inspection target is referred to as "working distance", and an area where a vision sensor can see at that distance is referred to as "field of view".

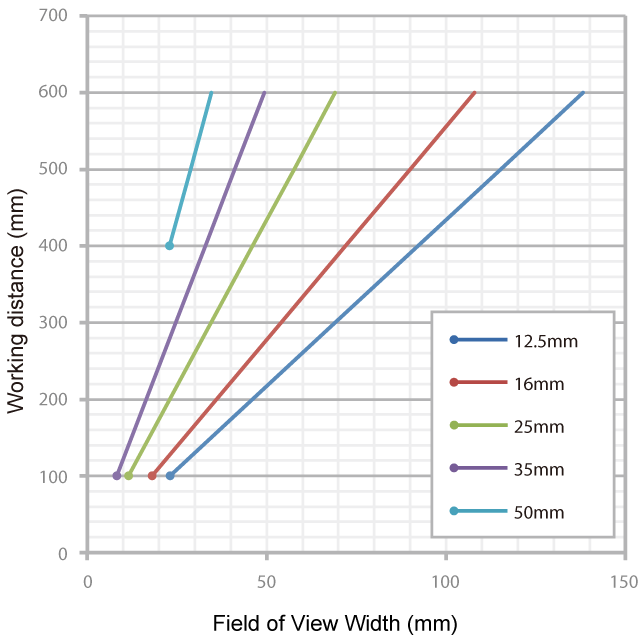

Horizontal Field of View (640 × 480)

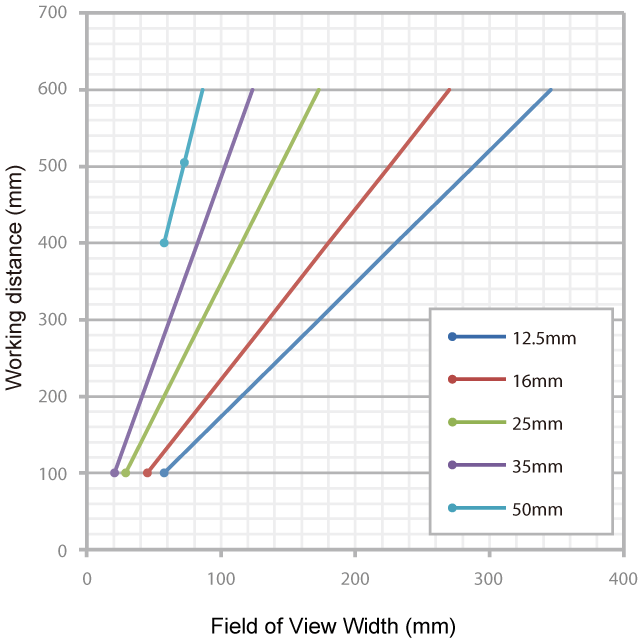

Horizontal Field of View (1600 × 1200)
