GT SoftGOT

About GT SoftGOT2000

Execute GOT functions on your personal computer

GT SoftGOT2000 Version1 is the software that has the same monitoring functions as the GOT2000 Series
and is used on personal computers and panel controllers by connecting to various industrial devices.

·    * GT SoftGOT2000 Version1 is included with GT Works3.
A separate license key must be mounted during use.

Monitor the production site from a remote location

Use GT SoftGOT2000 to monitor the production site from your office. You can collect information quickly when a problem occurs,taking necessary actions immediately. The GOT project file running at your production site can be reused as the GT SoftGOT2000 project file, greatly reducing your design costs.

Engage with MELSEC process control

Simplify design and maintenance of a process control system by connecting PX Developer's monitor tools with GT SoftGOT2000. This process control monitoring system can be easily used in various process control applications.

Monitor, operate or tune the loop control tags.(The display position can be specified.)

Click on buttons to execute various operations such as starting GT SoftGOT2000 or switching base screens.

Click on touch switches and objects to open the various screens of the PX Developer monitor tool. (The display position can be specified.)

Turn your desktop into a graphic monitoring window with the full-screen and back-screen mode.

The GT SoftGOT2000 security level is changed accordingly when the PX Developer monitor tool's mode is changed (engineer mode, operator mode, or lock mode). Authority can be set for operations requiring security.

Interaction with other applications

Read and write GT SoftGOT2000 internal devices using the user-created applications. Interaction with user-created applications makes it possible to build advanced systems.

·        * For the supported applications, please refer to an appropriate manual.

Remote monitoring with SoftGOT

SoftGOT-GOT link function

GT SoftGOT2000 allows remote monitoring of devices connected via Ethernet using the GOT project data. GT SoftGOT2000 and the GOT operate independently so that using a GOT internal device as the screen switching device enables GT SoftGOT2000 and the GOT to display different screens. Since GT SoftGOT2000 displays the GOT screen on the personal computer, the processing load on the GOT is reduced.

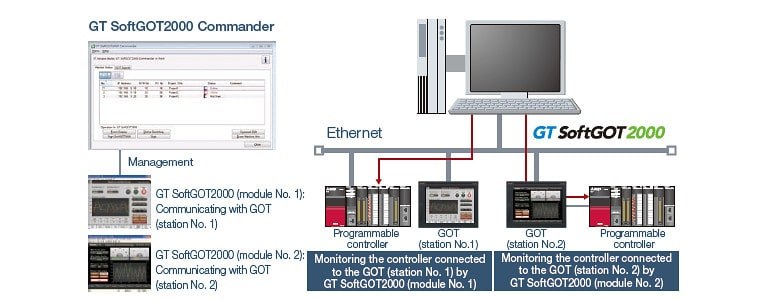

Manage multiple SoftGOT modules

GT SoftGOT2000 Commander

By using GT SoftGOT2000 Commander,multiple GT SoftGOT2000 modules using the SoftGOT-GOT link function can be efficiently managed, and the SoftGOT-GOT link function can be utilized easily.

Prevent simultaneous operations from multiple clients with authorization control

Safe with exclusive authorization control

The exclusive authorization control prevents simultaneous operations from multiple clients that use GT SoftGOT2000, GOT, VNC server/GOT Mobile function in the same network. The exclusive control can be enabled/disabled for each screen.(GOT network interaction)

GT SoftGOT2000

HMI software that allows GOT2000 functions to operate on a personal computer or panel computer.

Product Features

GT SoftGOT1000

HMI software that allows GOT1000 functions to operate on a personal computer or panel computer.

Operating environment of GT SoftGOT2000 Version1

·        *1 Administrator authority is required for installing and using GT SoftGOT2000.
To use GT SoftGOT2000 with another application that runs with administrator authority, GT SoftGOT2000 must also run with administrator authority.

·        *2 The following functions are not supported.
• Application start in Windows compatibility mode
• Fast user switching
• Change your desktop themes (fonts)
• Remote desktop
• DPI setting other than the normal size (For Windows^® XP and Windows Vista^®)
• Setting the size of text and illustrations on the screen to any size other than [Small-100%] (For Windows^® 10, Windows^® 8.1, Windows^® 8, and Windows^® 7)

·        *3 Windows XP Mode is not supported.

·        *4 Only tapping operation is available.

·        *5 Modern UI Style is not supported.

·        *6 Hyper-V is not supported.

·        *7 For using the PPC-852-22F, GT SoftGOT2000 can be used on the PPC-852-22F with the OS preinstalled only.

·        *8 Refer to the manual of the PC CPU module to be used.

·        *9 When using GT Designer3 or PX Developer besides GT SoftGOT2000, additional free space is required.
For the available space required when using GT Designer3, please refer to the GT Works3 operating environment.
For the available space required when using monitor tool functions of PX Developer, please refer to the following manual.
⇒ PX Developer Version □ Operating Manual (Monitor Tool)
When using a user-created application, free space is required separately.

·        *10 Use GT Designer3 included in GT Works3 that contains GT SoftGOT2000.

·        *11 The following OSs are not supported.
 • Microsoft Windows 10 IoT Enterprise for Retail or Thin Client
 • Microsoft Windows 10 IoT Enterprise for Tablets
 • Microsoft Windows 10 IoT Enterprise for Small Tablets

·        *12 The following lockdown features are not supported.
 • Unified Write Filter (UWF)
 • Assigned Access
 • USB Filter
 • Layout Control
 • AppLocker
 • Shell Launcher

·    [ Trademarks and registered trademarks ]

·      Microsoft, Windows, Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States, Japan and other countries.

·      Other product and company names are either trademarks or registered trademarks of their respective owners.

Specifications of GT SoftGOT2000 Version1

·        *1 Required devices differ depending on the connection type.

·        *2 The bus connection can be used only when a PC CPU module is used.
