ฟังก์ชันขั้นสูง
Visualization
ADVANCED FUNCTION

โซลูชันสำหรับความต้องการที่หลากหลายในระบบ monitoring control

MC Works64 ระบบ SCADA จากมิตซูบิชิ อีเล็คทริค มีฟังก์ชั่นขั้นสูงพร้อมใช้งานกับผลิตภัณฑ์ระบบอัตโนมัติอื่นๆ เช่น MC AppBuilder ที่รองรับการเชื่อมต่อ GX Works2 / GX Works3, EarthWorX64 ซึ่งให้การตรวจสอบพื้นที่กว้างและ MC Historian Express ที่ช่วยให้สามารถรวบรวมข้อมูลด้วยความเร็วสูง


ข้อมูลทั่วไป

MC AppBuilder

Design support · GX Works 2 / GX Works 3 linkage × MC AppBuilder

Automatically create the monitor screen parts, OPC tag settings, and GX Works2 projects.

The easy design helps avoid faults caused by inconsistent tag setting information, etc.

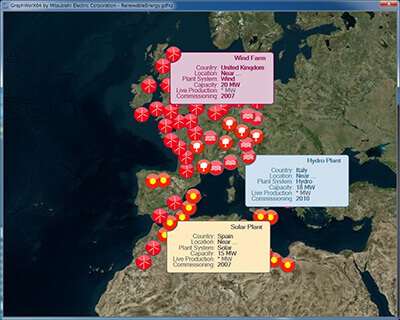

EarthWorX 64

Wide area monitoring × EarthWorX 64

Wide area monitoring using map information such as BingMaps on the internet is possible. You can monitor and monitor distributed sites and factories all over the world on the map. In addition, you can display detailed information, alarm status, etc. by using a pin. You can also monitor using GPS data.

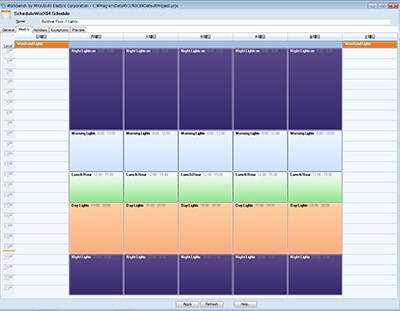

ScheduleWorX 64

Schedule management × ScheduleWorX 64

According to the schedule, the building lighting, air conditioning, factory equipment etc. can be operated automatically. Set values for tags according to schedule and manage schedules such as 1 day, 1 week, 1 month.




ScheduleWorX64 Specification

Schedule type

Regularly

General, Week, Holidays, Season

Only once

Override, exception

View

Day, week, month, timeline

support

Outlook® format

Remote setting

Live monitor mode

Security

Manual override

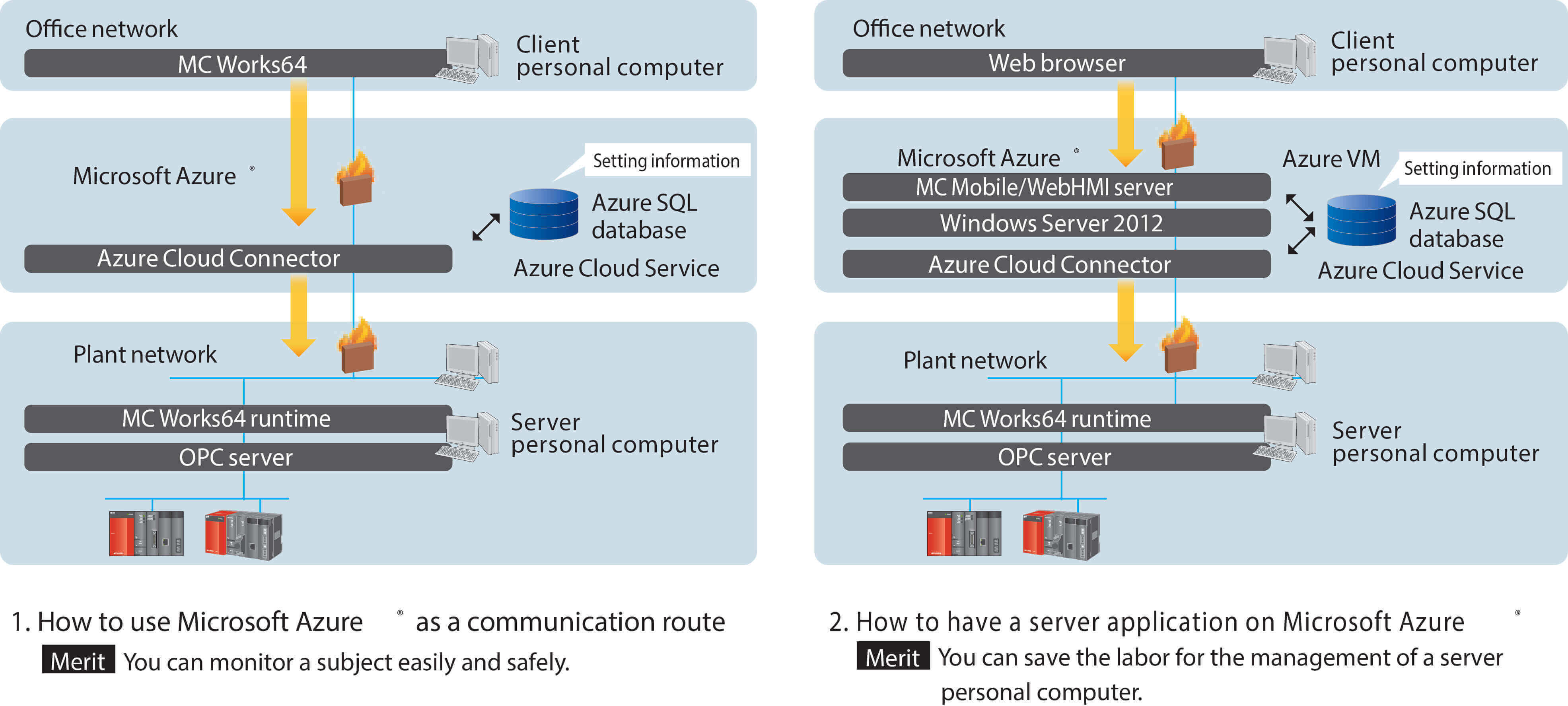

Cloud x Microsoft Azure® [Partner Products]

It corresponds to Microsoft® cloud service Microsoft Azure®. By placing data or server application on the cloud, you can create a flexible system configuration.

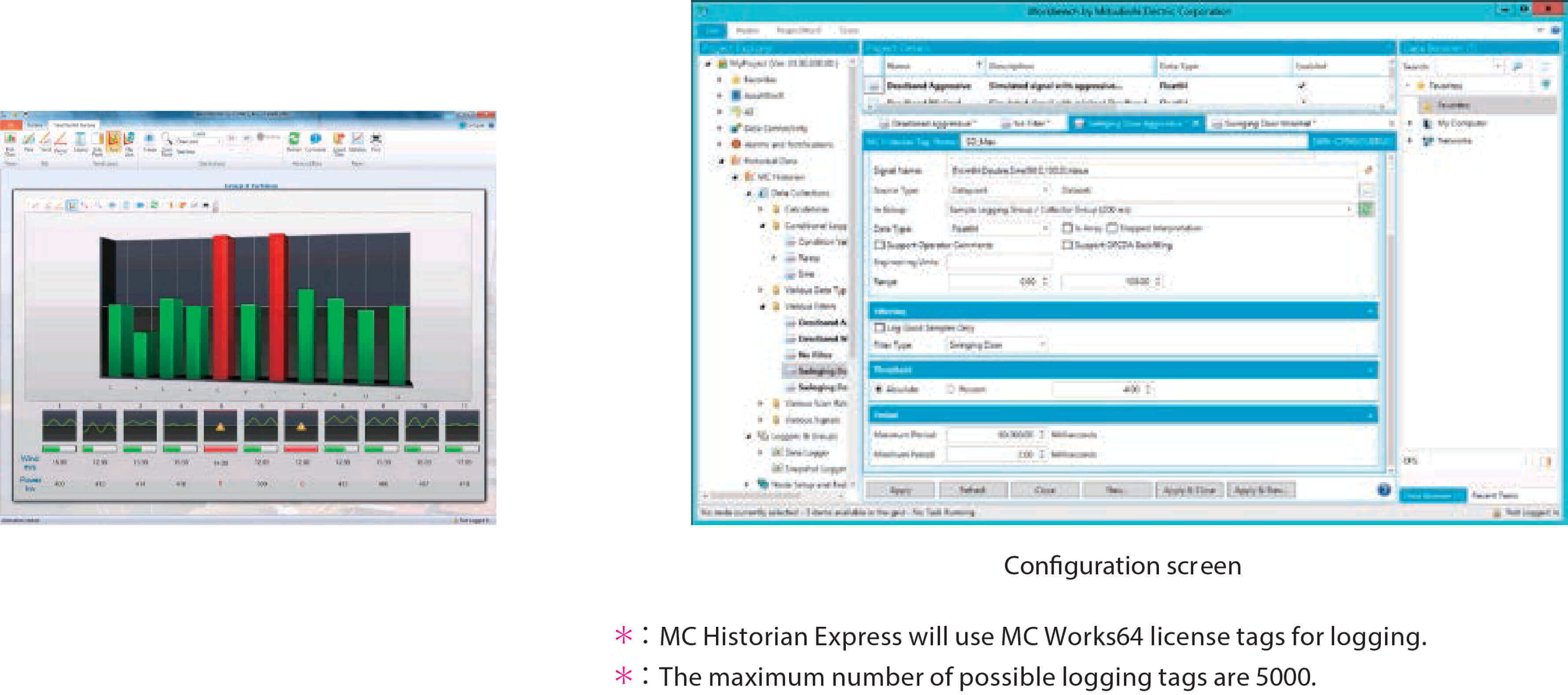

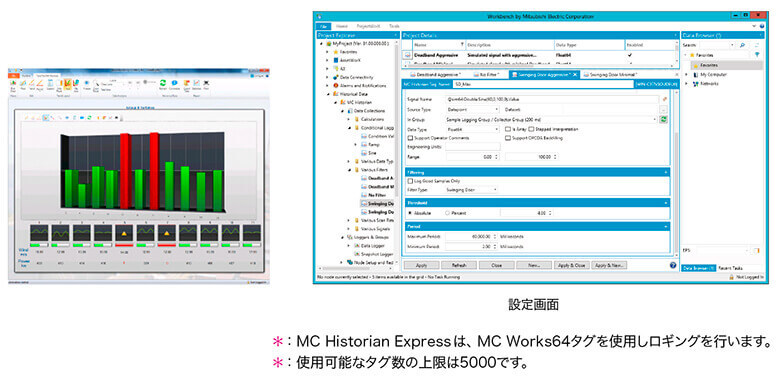

MC Historian Express

High speed data acquisition × MC Historian Express

It is a data collection tool having a function equivalent to a simplified version of MC Historian . Because of its proprietary data storage format, a commercially available database is unnecessary, and high speed data collection is realized. Express version can be used with MC Works 64 license.

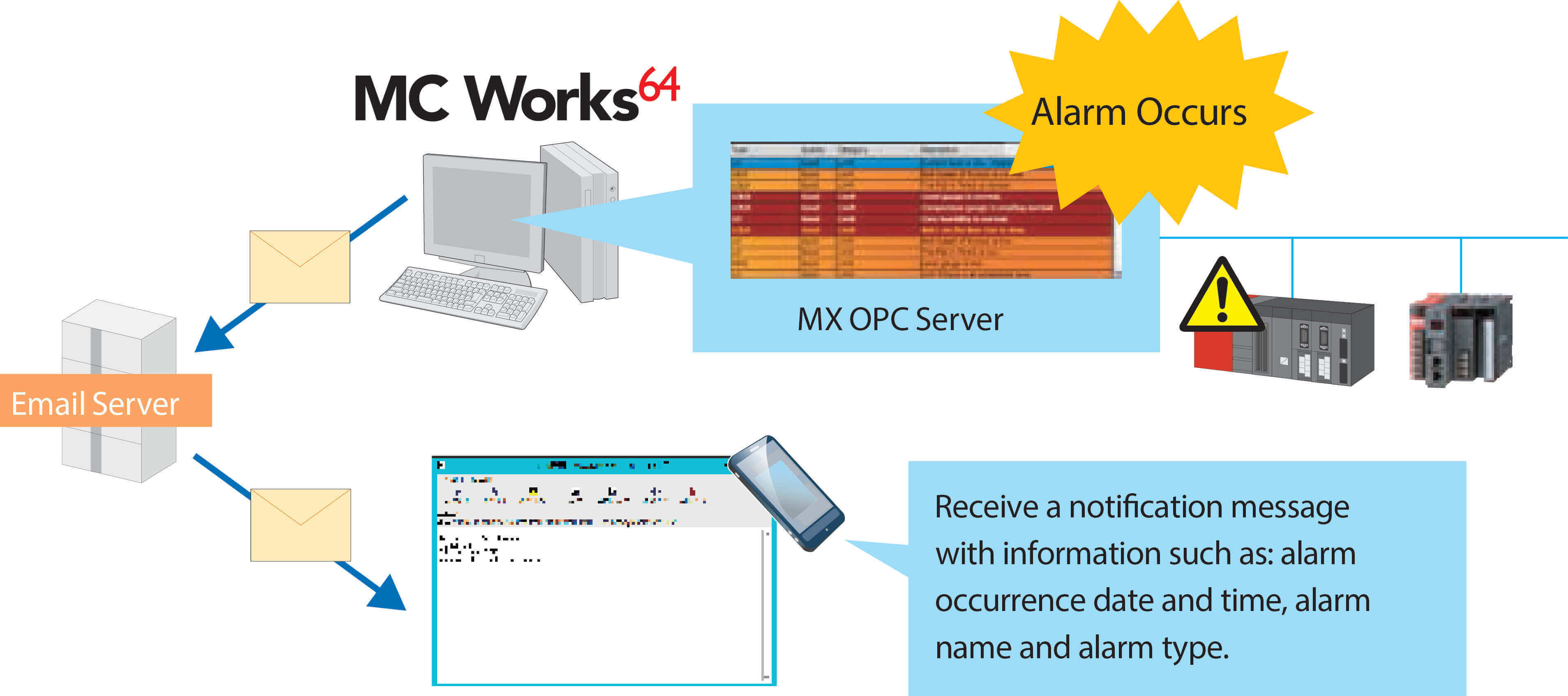

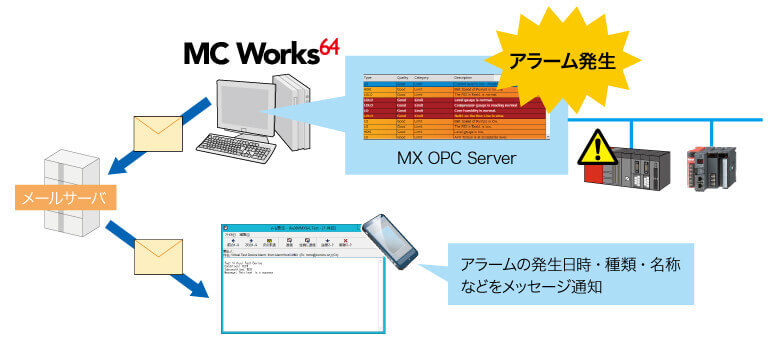

Message notification × AlertWorX & MC Alarm 64 MMX (option)

In conjunction with the alarm, we will notify you by e-mail or SMS.

Alarm occurrence date / time, alarm type, alarm name etc. are notified in message format.

In AlertWorX which is the standard function of MC Works64, it is possible to notify to a single destination with a simple setting.

In addition, if you use MC Alarm 64 MMX which is an option product, more advanced setting becomes possible. For example, depending on the type of alarm, it is also possible to assign notification destinations to operator groups, engineer groups, or to switch destinations automatically according to the alarm occurrence time according to the operator's shift.

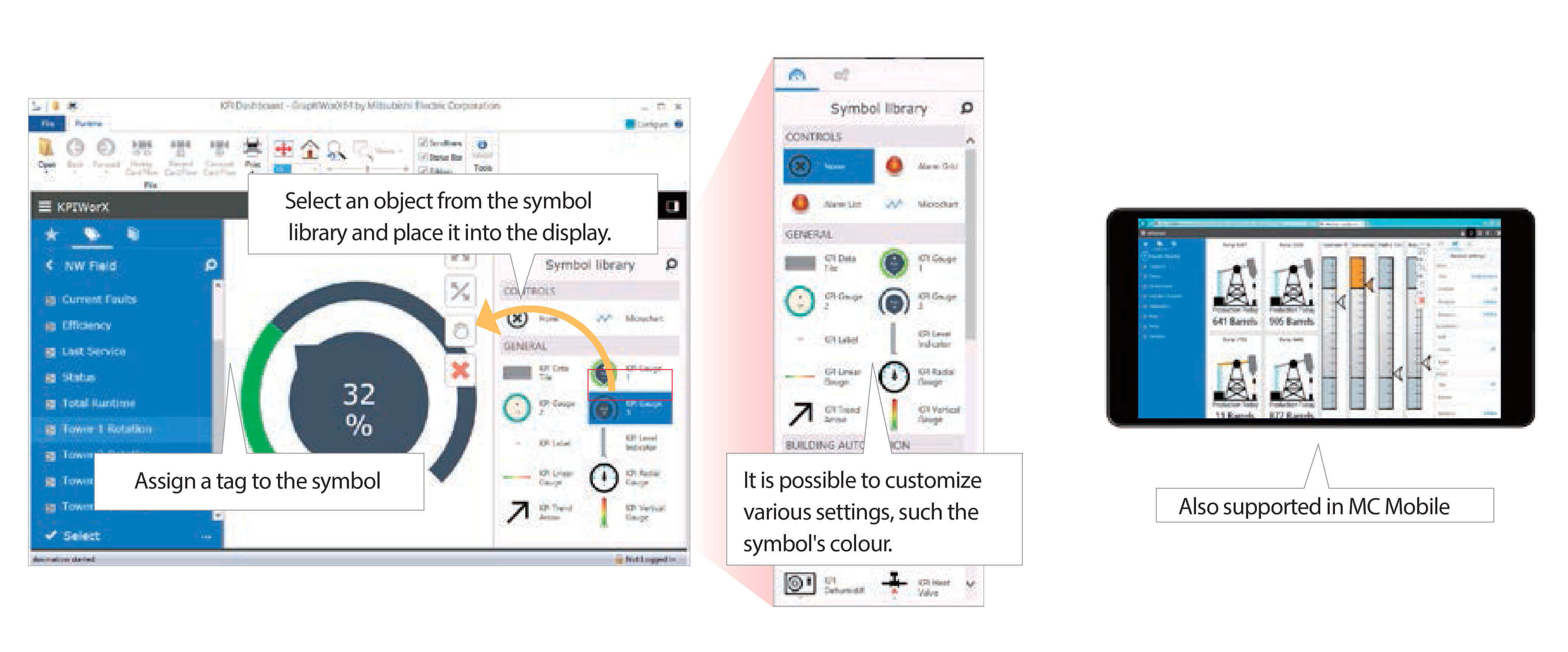

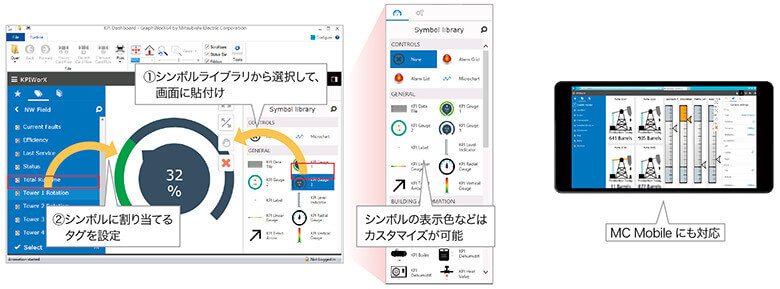

Create your own monitoring screen × KPIWorX

While observing in runtime mode, you can freely arrange widgets (symbols such as instruments, alarms, trends) on the screen and create your own monitoring screen. Once you create the monitoring screen, you can call it again or customize it by saving it.




รายการผลิตภัณฑ์

MC AppBuilder

Design support · GX Works 2 / GX Works 3 linkage × MC AppBuilder



Automatically create the monitor screen parts, OPC tag settings, and GX Works2 projects.
The easy design helps avoid faults caused by inconsistent tag setting information, etc.


More Detail




EarthWorX 64

Wide area monitoring × EarthWorX 64


Wide area monitoring using map information such as BingMaps on the internet is possible. You can monitor and monitor distributed sites and factories all over the world on the map. In addition, you can display detailed information, alarm status, etc. by using a pin. You can also monitor using GPS data.


ScheduleWorX 64

Schedule management × ScheduleWorX 64


According to the schedule, the building lighting, air conditioning, factory equipment etc. can be operated automatically. Set values ​​for tags according to schedule and manage schedules such as 1 day, 1 week, 1 month.


ScheduleWorX64 Specification

Schedule type

Regularly

General, Week, Holidays, Season

Only once

Override, exception

View

Day, week, month, timeline

support

Outlook® format

Remote setting

Live monitor mode

Security

Manual override



Cloud x Microsoft Azure® [Partner Products]

It corresponds to Microsoft® cloud service Microsoft Azure®. By placing data or server application on the cloud, you can create a flexible system configuration.


MC Historian Express

High speed data acquisition × MC Historian Express

It is a data collection tool having a function equivalent to a simplified version of MC Historian . Because of its proprietary data storage format, a commercially available database is unnecessary, and high speed data collection is realized. Express version can be used with MC Works 64 license.



Message notification × AlertWorX & MC Alarm 64 MMX (option)

In conjunction with the alarm, we will notify you by e-mail or SMS.
Alarm occurrence date / time, alarm type, alarm name etc. are notified in message format.
In AlertWorX which is the standard function of MC Works64, it is possible to notify to a single destination with a simple setting.
In addition, if you use MC Alarm 64 MMX which is an option product, more advanced setting becomes possible. For example, depending on the type of alarm, it is also possible to assign notification destinations to operator groups, engineer groups, or to switch destinations automatically according to the alarm occurrence time according to the operator's shift.



Create your own monitoring screen × KPIWorX

While observing in runtime mode, you can freely arrange widgets (symbols such as instruments, alarms, trends) on the screen and create your own monitoring screen. Once you create the monitoring screen, you can call it again or customize it by saving it.


ข้อมูลจำเพาะ

Operating environment

System requirements

item

MC Works
64
MC Graph 64 MC Alarm 64

MC Historian

MC Mobile

AX Energy
AX Facility
AX Quality
AX Portal

series

PC / AT compatible personal computer

CPU

Dual / Multi Core 64-bit processor 2 GHz or higher recommended

memory

4 GB (8 GB or more recommended)

4 GB (10 GB or more is recommended)

Hard disk drive
(during installation)

4 GB or more free space

160 GB or more free space

4 GB or more free space

Free space of 20 GB or more
(50 GB or more is recommended)

Virtual memory (during operation)

512 MB or more

Disk drive

DVD-ROM drive

OS * 1

64 bit Windows® OS

display

Resolution 1024 × 768 pixels or more

Database * 1

Microsoft® SQL Server®

.NET Framework

4.5

Web server * 2

Microsoft® Internet Information Services (IIS) 7.0 or later

Web browser * 1 2

Silverlight® compatible browser (Internet Explorer®, etc.)

Other requirements

-

-

-

SharePoint® Microsoft®
Server 2012
4

Microsoft® SharePoint®
Server 2010 and SharePoint®
Foundation 2010
* 4

Microsoft® Office Excel®
(2003 or later)
* 3

Sequencer
engineering
software
# 5

GX Works 2 (1.545 T or later)
GX Works 3 (1.025 B or later)

-

-

-

* 1 : Refer to the following table for details of version compatibility.

* 2 : It is necessary to see the browser screen.

* 3 : It is necessary for using the report.

* 4 : AX Portal is compatible.

* 5 : Required for automatically generating sequencer project with MC AppBuilder.



OS compatible

OS

MC Works
64
MC Graph 64 MC Alarm 64

MC Historian

MC Mobile

AX Energy
AX Facility
AX Quality
AX Portal

Windows® 10

The server function can be installed only on Windows Server OS.

Windows® 8, 8.1 * 1

Windows® 7 SP1  2

* 1 : Only Pro and Enterprise editions are compatible.

* 2 : Only Professional, Enterprise, Ultimate editions are compatible.



Database compatibility (data storage)

Database

MC Works
64
MC Graph 64 MC Alarm 64

MC Historian

MC Mobile

AX Energy

AX Facility
AX Quality
AX Portal

SQL Server® 2014 * 2

● ● 1

SQL Server® 2012  2

● ● 1

SQL Server® 2008 R2 * 2

● ● 1

* 1 : AX Energy operates in demo mode only for 180 days when using SQL Server® Express.

* 2 : You can use Express version of Express. Please be aware, however, that there are restrictions on using SQL Server® Express.
(Database size: up to 10 GB, etc. There are restrictions etc. For details please check on the website of Microsoft®, etc.)



Web browser compatible (screen display)

Web browser

MC Works
64
MC Graph 64 MC Alarm 64

MC Historian

MC Mobile

AX Energy
AX Facility
AX Quality
AX Portal

Internet Explorer® 8-11

Firefox® 3 or higher

1

1

Safari®

1

1

Google Chrome®

-

-

Other browsers
(Silverlight® compatible)

1

1

-

* 1 : Only the HMI screen of Silverlight® version is displayed.



โปรแกรมเลือกรุ่น

Selecting SCADA Products

1. MC Works64 server (if MC Works64 is not required, but data collection function is needed, go to 2 and select MC Historian)



2. MC Historian servers (if data collection is not needed, or if the collection speed is 50k points per minute or less, use the trend functions of MC Works64. Go to 3)



3. MC Works64/MC Historian client. (If no client needed, go to 4)



4. MC Historian remote collector (If not needed, go to 5)


5. MC Mobile (If not needed, go to 7)


6. Additional MC Mobile Licenses (If mobile device monitoring not needed, go to 7)


7. MC Works64 license authentication
MC Works USB Key: If using different personal computers for development and runtime (display function) and want to use one license (a USB key is used for H/W license authentication). If using the same personal computer for development and runtime (display function), use the Internet for the S/W license authentication, and the MC Works USB Key is not needed.



8. Japanese-language and Chinese-language package products (If not needed, go to 9.)
MC Works64 Language Pack: Japanese language or Chinese language package.



9. MC Alarm MMX (If not needed, go to 10.)
MC Alarm MMX LT: Advanced E-mail notification with features such as utilizing a schedule, alarm acknowledgment, etc.
(Note: Basic E-mail features are included in the standard features of MC Works64)



10. BridgeWorX (If not needed, go to 11.)
BridgeWorX Server: Data conversion function (1 transaction)
BridgeWorX Lite: Data conversion function (5 transactions)
BridgeWorX Standard: Data conversion function (25 transactions)
BridgeWorX Enterprise: Data conversion function (1000 transactions)


11. ReportWorX
ReportWorX Server: Full-fledged form handling processes (1 report)
ReportWorX Lite: Full-fledged form handling processes (5 reports)
ReportWorX Standard: Full-fledged form handling processes (25 reports)
ReportWorX Enterprise: Full-fledged form handling processes (1000 reports)

เพิ่มเติม

Function list

Item name

Constitution

MC AppBuilder
Design support tool

Graph WorX64
View Client
[Graphics
(Runtime)]

Alarm WorX 64
View Client
[Alarm monitoring]

Trend WorX 64
View Client
[Trend monitoring]

Graph WorX 64
Development
Option
[Graphic generation]

Alarm WorX 64
Development
Option
[Alarm collection /
logger setting]

Trend WorX 64
Development
Option
[Trend monitoring /
logger setting]

MC Works64 DV

MC Works 64 RT

-

-

-

MC Works 64 LT

-

-

-

MC Graph 64 DV

-

-

-

-

MC Graph 64 RT

-

-

-

-

-

MC Alarm 64 DV

-

-

-

-

MC Alarm 64 RT

-

-

-

-

-

MC Historian SD

-

-

-

-

-

MC Historian ET

-

-

-

-

-



Item name

Constitution

ReportWorX
Express
Simple version form tool

BACnet ™
BACnet ™ connection

SNMP
[SNMP connection]

GridWorX 64

Tabular display of data

ScheduleWorX64
Scheduling

ScriptWorX 64
[Script Generation /
Runtime]

UDM Tag
Restricted
[Tag constraint]

MC Works64 DV

-

MC Works 64 RT

-

MC Works 64 LT

-

-

-

-

MC Graph 64 DV

-

-

-

-

MC Graph 64 RT

-

-

-

-

MC Alarm 64 DV

-

-

-

-

-

MC Alarm 64 RT

-

-

-

-

-

MC Historian SD

-

-

-

MC Historian ET

-

-

-

* ReportWorX Express is an on-demand form tool that runs on 32-bit, 64-bit Microsoft® Excel®.
Please purchase ReportWorx Lite if you want to automatically output output in other formats such as HTML, PDF, and one-month, monthly report.

Item name

Constitution

MC Historian
Server
High Speed ​​Data Collection

MX OPC
Server
OPC Server

EarthWorX 64
Wide area monitoring screen

Workbench 64
[Development tool environment]

Modbus® OPC
Server
Modbus®
OPC Server

WebHMI 64
Server
[Web Publishing Function]

MC Works64 DV

-

MC Works 64 RT

-

MC Works 64 LT

-

-

MC Graph 64 DV

-

MC Graph 64 RT

-

MC Alarm 64 DV

-

-

MC Alarm 64 RT

-

-

MC Historian SD

-

MC Historian ET

●
(Collection function
duplicated version)

-



Item name

Constitution

WebHMI 64 CAL

WebHMI 64 client by client type ]

FrameWorX
Application
Platform

Unified Data
Manager
[Data Source Management]

OPC-UA Data
Bridging
[OPC-UA
data conversion]

Global Aliasing
[Global
alias function]

Distribute
Collector
MC Historian
distributed collection server

MC Works64 DV

1 Client
(MC Works 64 CL DV)

-

MC Works 64 RT

1 Client
(MC Works 64 CL RT)

-

MC Works 64 LT

1 Client
(MC Works 64 CL RT)

-

MC Graph 64 DV

1 Client
(MC Works 64 CL DV)

-

MC Graph 64 RT

1 Client
(MC Works 64 CL RT)

-

MC Alarm 64 DV

1 Client
(MC Works 64 CL DV)

-

MC Alarm 64 RT

1 Client
(MC Works 64 CL RT)

-

MC Historian SD

1 Client
(MC Works 64 CL DV)

-

MC Historian ET

1 Client
(MC Works 64 CL DV)

2 licenses
