Controllers MELSEC iQ-R Series Product features -High-speed counter, Channel isolated pulse input, Flexible high-speed I/O control-

    High-speed counter module

    The high-speed counter modules are capable of up to 200k pulse/s for the DC input, and up to 8M pulse/s for differential input. The movement amount can also be measured when used with a rotary encoder, linear encoder, digital gage, etc. In addition, a signal is output when a specified position is reached.

    For open collector/voltage output

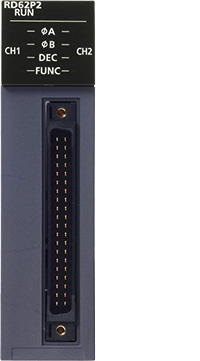

    RD62P2

    Max. 200k pulse/s 2-channel Coincidence output (sink)

    RD62P2E

    Max. 200k pulse/s 2-channel Coincidence output (source)

    For line driver

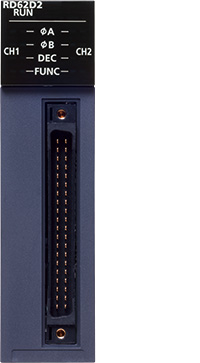

    RD62D2

    Max. 8M pulse/s 2-channel Coincidence output (sink)

    Features <sup>High-accuracy pulse measurement </sup>

    • Measurement resolution 100 ns
    • High-accuracy measurement
    • The pulse measurement function enables measuring of the pulse cycle, which is ideal for applications where workpiece length and speed need to be detected

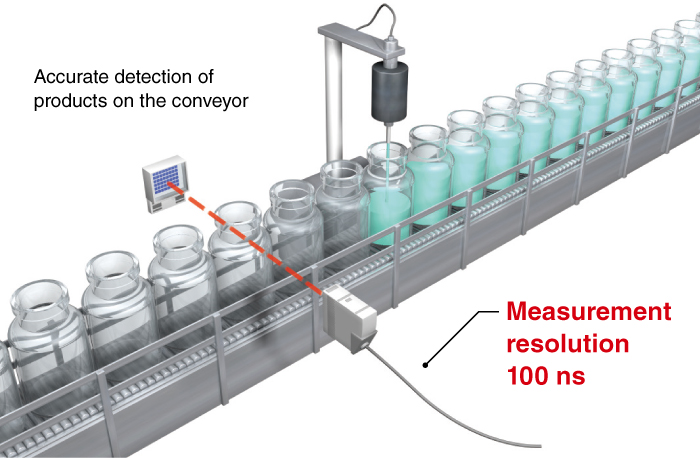

    • In the food and beverage industry, the size and speed of bottles traveling on the conveyor are easily measured using proximity sensors

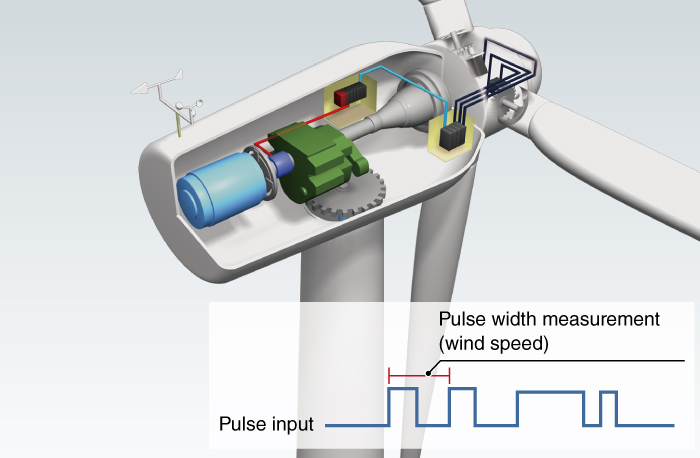

    • Wind turbine speed can be measured from the pulse interval

    Smooth operation with PWM output

    • Max. 200 kHz
    • Min. 100 ns pulse width
    • The PWM output frequency can support up to 200 kHz with a minimum 100 ns pulse width (proportion to “on” time) during the required duty cycle
    • The set values can be changed during operation without having to stop the system, such as in industrial-scale fan control

    Specifications <sup>High-speed counter module specifications </sup>

    Item RD62P2 RD62P2E RD62D2
    Number of channels 2 2 2
    Count input signal
    1-phase input (1 multiple/2 multiples) ● ● ●
    2-phase input (1 multiple/2 multiples/4 multiples) ● ● ●
    CW/CCW input ● ● ●
    Signal level (øA, øB) 2…5 mA at 5/12/24 V DC 2…5 mA at 5/12/24 V DC EIA Standard RS-422-A
    Differential line driver level
    Counter
    Max. counting speed (pulse/s) 200k 200k 8M
    Counting range 32-bit signed binary
    (-2147483648…2147483647)     		32-bit signed binary
    (-2147483648…2147483647)     		32-bit signed binary
    (-2147483648…2147483647)
    External input
    Preset, function start 7…10 mA at 5/12/24 V DC 7…10 mA at 5/12/24 V DC 7…10 mA at 5/12/24 V DC
    Digital filter (ms) 0, 0.1, 1, 10 0, 0.1, 1, 10 0, 0.1, 1, 10
    Pulse measurement
    Resolution *1 (ns) 100 100 100
    Number of points per channel 1 1 1
    External output
    Coincidence output (2 points/channel) Transistor (sink) output,
    12/24 V DC, 0.5 A/point     		Transistor (source) output,
    12/24 V DC, 0.1 A/point     		Transistor (sink) output,
    12/24 V DC, 0.5 A/point
    PWM output
    Output frequency range (Hz) DC…200k DC…200k DC…200k
    Duty ratio Multiples of 0.1 µs Multiples of 0.1 µs Multiples of 0.1 µs
    Number of output points per channel 2 2 2
    External interface *2
    40-pin connector ● ● ●
    • *1.Pulse measurement can be performed in the range of 2000 to 2147483647 (0.2 ms to approx. 214 s).
    • *2.For applicable options, please refer to the relevant product manual.
