Temperature input module, Temperature control module
The temperature input module is ideal for temperature measurement and the temperature control module is for applications requiring highly stable and responsive temperature control. The modules include thermocouple, RTD input types and temperature control modules which are available with or without heater disconnection detection.
Temperature input <sup>Temperature input module </sup>
Temperature control <sup>Temperature control module </sup>
Without heater disconnection detection

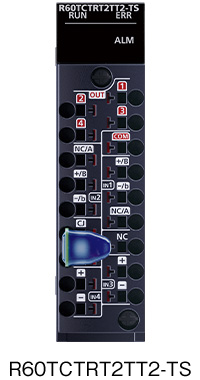

R60TCTRT2TT2-TS
Spring-clamp terminal block
Thermocouple input: 2-channel
Thermocouple/RTD input (shared):
2-channel
R60TCTRT2TT2
Screw terminal block
Thermocouple input: 2-channel
Thermocouple/RTD input (shared):
2-channel
R60TCRT4-TS
Spring-clamp terminal block
RTD input: 4-channel
R60TCRT4
Screw terminal block
RTD input: 4-channel
With heater disconnection detection

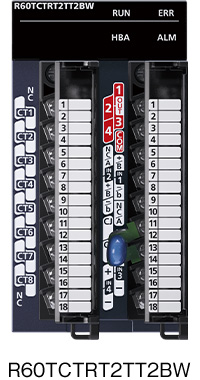

R60TCTRT2TT2BW
Screw terminal block
Thermocouple input: 2-channel
Thermocouple/RTD input (shared):
2-channel
R60TCRT4BW
Screw terminal block
RTD input: 4-channel
