Controllers MELSEC iQ-R Series Product features -I/O-

    I/O module

    Digital I/O modules are the senses of the automation system and provide an interface of various processes to the controller. Devices such as switches, indicator lamps, and sensors can be easily connected to the control system. The MELSEC iQ-R Series I/O modules have enhanced functions compared with the existing Series, one module can support various applications, reducing implementation and maintenance costs.

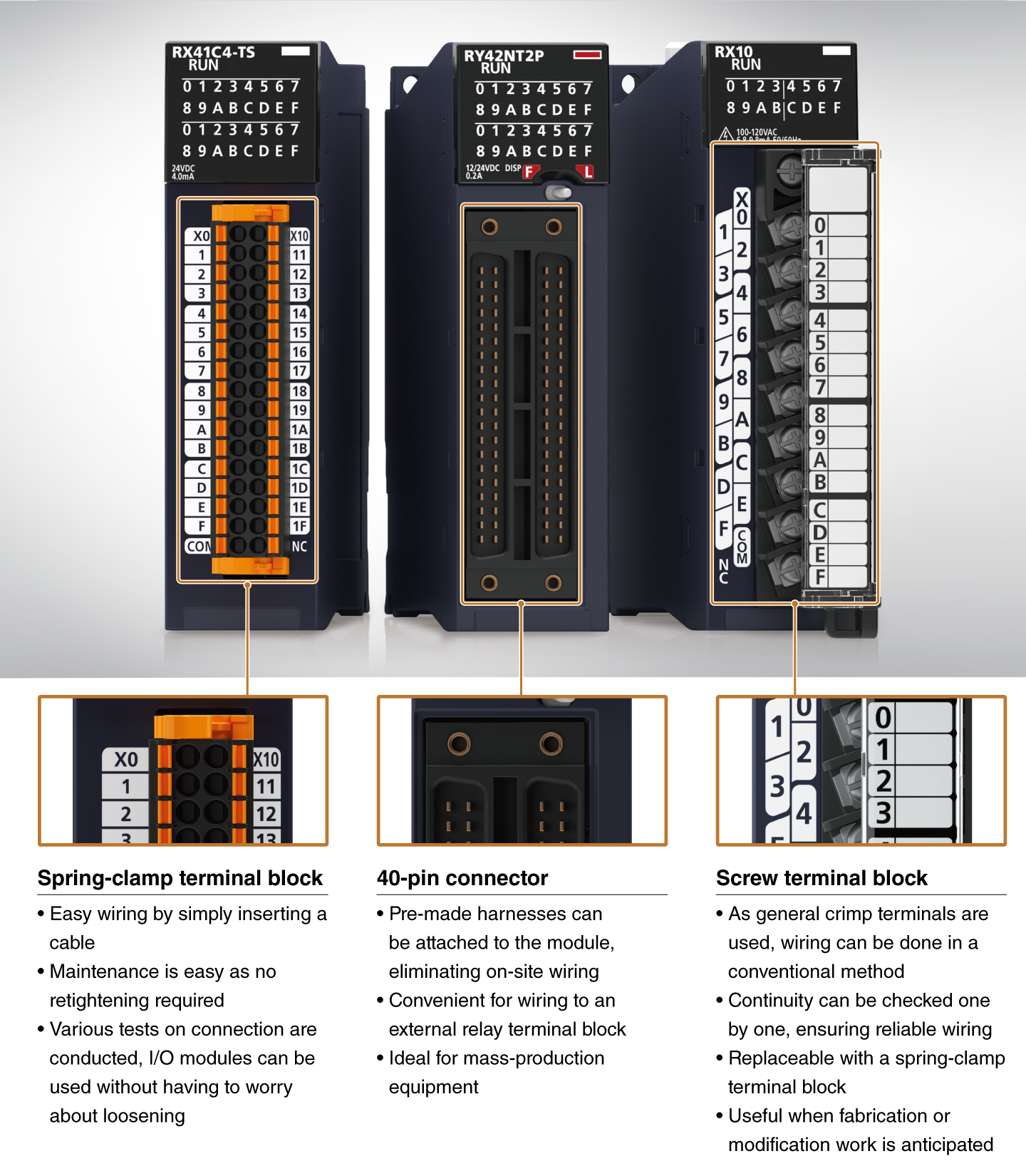

    Modules can be selected according to requirements such as ease of wiring, number of points and characteristics of devices to be connected.

    Input <sup> DC input </sup> <sup> + : Positive common - : Negative common +/- : Positive/negative
    common shared     </sup>

    24 V DC

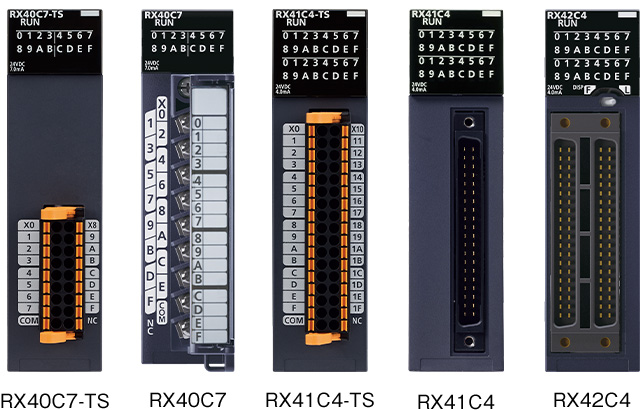

    RX40C7-TS
    Spring-clamp terminal block

    16 points +/-

    RX40C7
    Screw terminal block

    16 points +/-

    RX41C4-TS
    Spring-clamp terminal block

    32 points +/-

    RX41C4
    40-pin connector

    32 points +/-

    RX42C4
    40-pin connector (2x)

    64 points +/-

    5/12 V DC

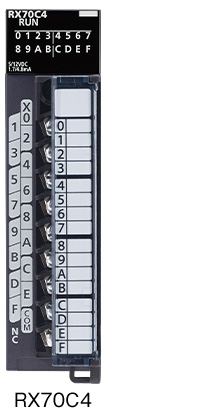

    RX70C4
    Screw terminal block

    16 points +/-

    RX71C4
    40-pin connector

    32 points +/-

    RX72C4
    40-pin connector (2x)

    64 points +/-

    High-speed 24 V DC

    RX40PC6H
    Screw terminal block

    16 points +

    RX40NC6H
    Screw terminal block

    16 points -

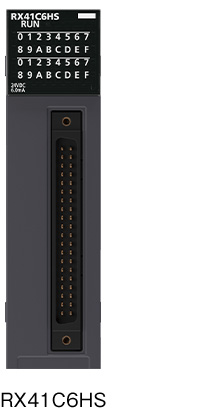

    RX41C6HS
    40-pin connector

    32 points +/-

    High-speed 5 V DC

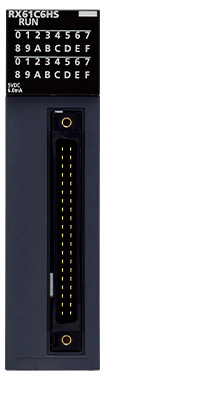

    RX61C6HS
    40-pin connector

    32 points +/-

    Diagnostic functions 24 V DC

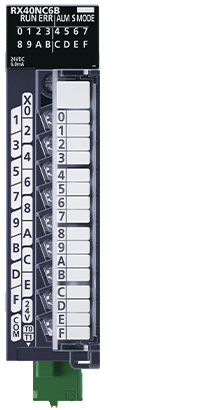

    RX40NC6B
    Screw terminal block

    16 points -

    Safety functions 24 V DC

    RX40NC6S-TS  NEW
    Spring-clamp terminal block

    Single wiring: 16
    points; Double
    wiring: 8 points     −

    AC input

    100 to 240 V AC

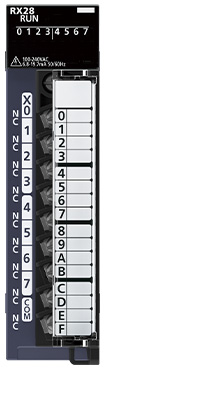

    RX28
    Screw terminal block

    8 points

    100 to 120 V ACV

    RX10-TS
    Spring-clamp terminal block

    16 points

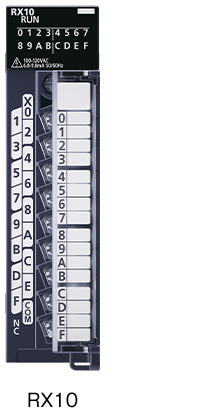

    RX10
    Screw terminal block

    16 points

    Output <sup>Transistor output </sup>

    Sink type 12/24 V DC, 0.5 A/point

    RY40NT5P-TS
    Spring-clamp terminal block

    16 points

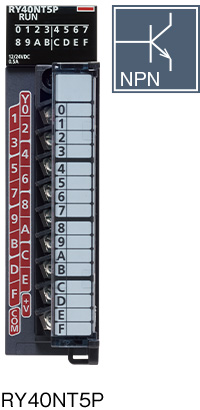

    RY40NT5P
    Screw terminal block

    16 points

    Sink type 12/24 V DC, 0.2 A/point

    RY41NT2P-TS
    Spring-clamp terminal block

    32 points

    RY41NT2P
    40-pin connector

    32 points

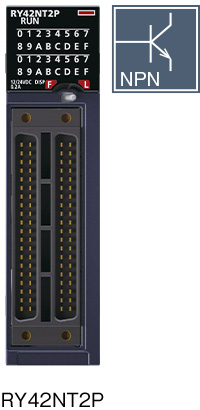

    RY42NT2P
    40-pin connector (2x)

    64 points

    Source type 12/24 V DC, 0.5 A/point

    RY40PT5P-TS
    Spring-clamp terminal block

    16 points

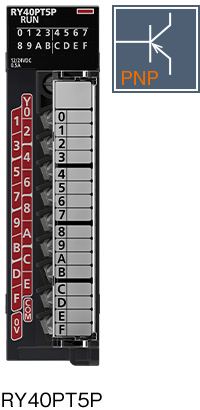

    RY40PT5P
    Screw terminal block

    16 points

    Source type 12/24 V DC, 0.1 A/point

    RY41PT1P-TS
    Spring-clamp terminal block

    32 points

    RY41PT1P
    40-pin connector

    32 points

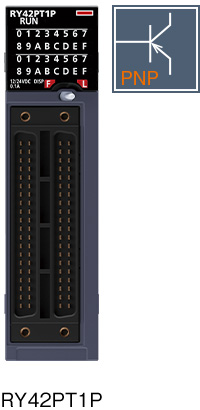

    RY42PT1P
    40-pin connector (2x)

    64 points

    High-speed, sink type 5/12/24 V DC, 0.2 A/point

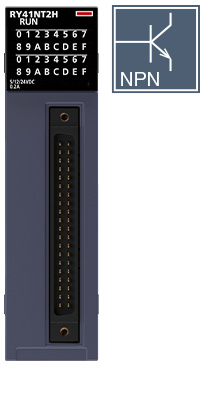

    RY41NT2H
    40-pin connector

    32 points

    High-speed, source type 5/12/24 V DC, 0.2 A/point

    RY41PT2H
    40-pin connector

    32 points

    Diagnostic functions, source type 24 V DC, 0.5 A/point

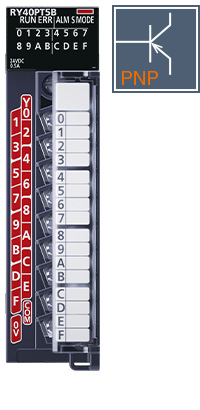

    RY40PT5B
    Screw terminal block

    16 points

    Safety functions, source type
    24 V DC, 2 A/point

    RY48PT20S-TS  NEW
    Spring-clamp terminal block

    Single wiring: 8 points
    Double wiring: 4 points

    Relay output

    24 V DC 2 A/point, 240 V AC 2 A/point

    RY18R2A
    Screw terminal block

    8 points

    RY10R2-TS
    Spring-clamp terminal block

    16 points

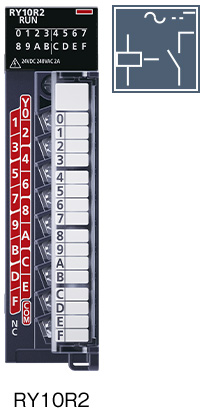

    RY10R2
    Screw terminal block

    16 points

    Triac output

    100 to 240 V AC, 0.6 A/point

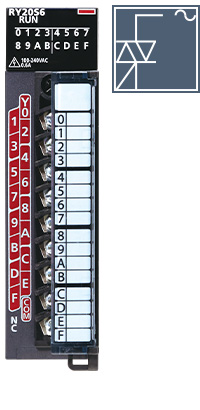

    RY20S6
    Screw terminal block

    16 points

    I/O combined <sup> DC input, transistor output </sup> <sup> +/- : Positive/negative
    common shared     </sup>

    24 V DC Sink type 12/24 V DC, 0.2 A/point

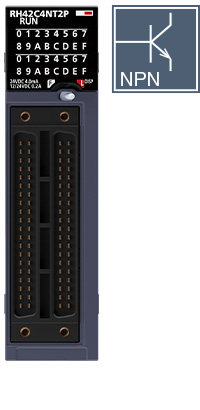

    RH42C4NT2P
    40-pin connector (2x)

    32 points +/-
