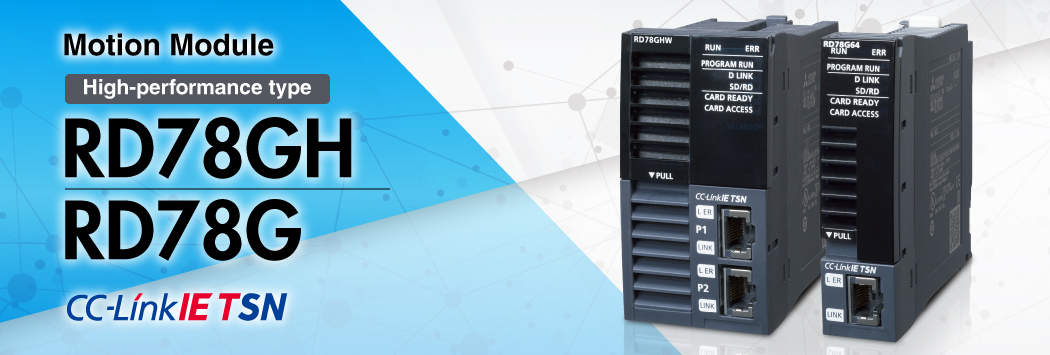

โมดูลการเคลื่อนที่ Product Outline

แนวคิด

These โมดูลการเคลื่อนที่s with multiple-core processors enable to configure a high-ความเร็ว, large system by supporting the CC-Link IE TSN real-time open network.

• Performs positioning การควบคุม such as linear interpolation using ฟังก์ชัน blocks. The programming is easy: users just need to set positioning data to the ฟังก์ชัน blocks.
• Connects to various โมดูล such as servo amplifiers and I/O โมดูล via CC-Link IE TSN. This connectivity allows you to configure a servo system more flexibly.
• การสนับสนุนs a consistent engineering environment that is capable of handling tasks ranging from system design to debugging and maintenance.

Selection of mode

You can select the appropriate mode from the two operating modes, considering the programming language or project heritage, etc.

• ●การควบคุมตำแหน่ง can be easily performed with motion profile tables. การควบคุมแบบซิงโครนัส can be executed only with parameter settings.
• ●Remote อุปกรณ์s are connected via CC-Link IE TSN and programmed from PLC CPUs.
• ●Data that is synchronized with the motion operation cycle can be collected with the digital oscilloscope. The collected data is displayed in waveforms for operation verification.

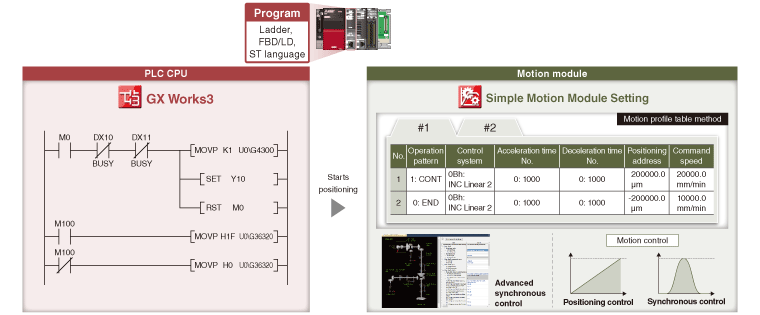

[An example of programming by a PLC CPU]

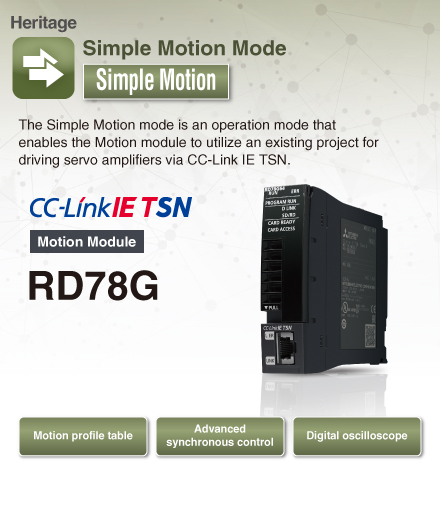

More details of the Simple Motion mode

• ●การสนับสนุนs ST language for programming while a PLC CPU supports ladder, FBD/LD, and ST language.
• ●Utilizes the library of PLCopen ^® Motion Control FBs, which are compliant with international standards, for programming.
• ●Enables users to analyze the operation status with logging data on GX LogViewer, improving debug efficiency.

[An example of programming by PLC CPU
(Programming by PLC CPU only) ]

A PLC CPU program starts operation of the โมดูลการเคลื่อนที่, eliminating the need for users to create another program for the โมดูลการเคลื่อนที่, reducing programming burden.

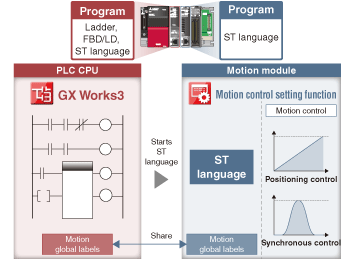

[An example of programming by each โมดูล
(Programming by PLC CPU and โมดูลการเคลื่อนที่s) ]

โมดูลการเคลื่อนที่s can execute operations in place of the PLC CPU. This reduces the operation burden on the PLC CPU and results in a shorter cycle time.

More details of the PLCopen ^® motion การควบคุม FB mode

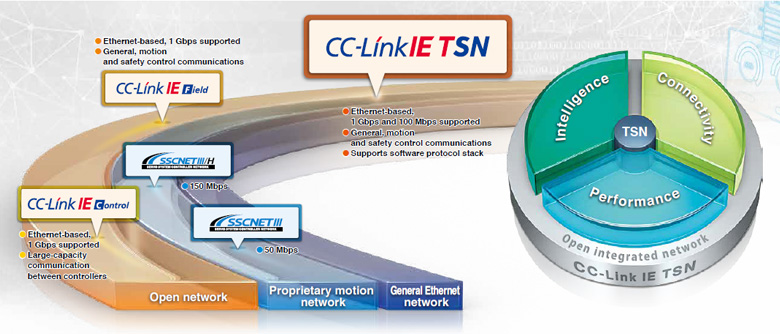

เปิด integrated networking across the manufacturing enterprise

CC-Link IE TSN supports TCP/IP communications and applies it to industrial architectures through its support of TSN enabling real-time communications.
With its flexible system architecture and extensive setup and troubleshooting features make CC-Link IE TSN ideal for building an IIoT infrastructure across the manufacturing enterprise.

• * TSN: Time Sensitive Networking
• * IIoT: Industrial Internet of Things

More details

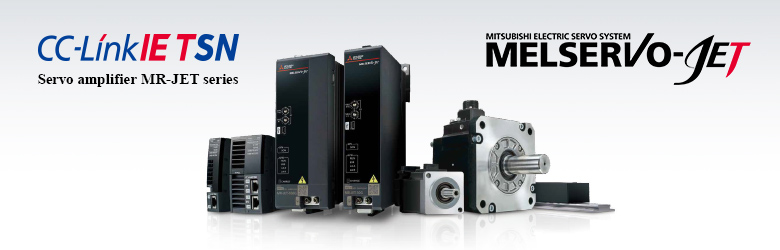

Servo Amplifier MELSERVO-J5/MELSERVO-JET

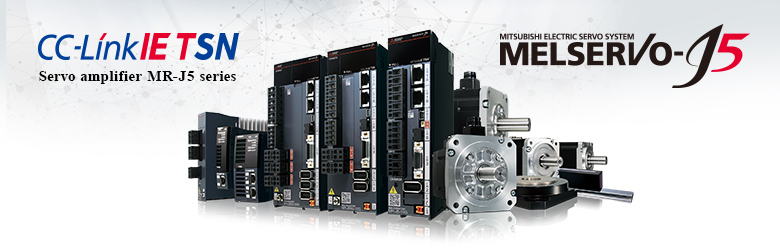

The MELSERVO-J5 Series high-performance, industry leading servo amplifiers feature a unique การควบคุม engine that is more powerful than ever before.
These servo amplifiers can connect to CC-Link IE TSN to perform high-ความเร็ว, high-precision การควบคุม.
MR-J5W-G/MR-J5W-B multi-axis servo amplifiers and MR-J5D-G4 drive units simplify wiring and enable a compact machine.

*1.MR-J5-G/MR-J5D1-G4 support 31.25 μs.

More details

The MELSERVO-JET Series high-performance servo amplifiers feature a unique การควบคุม engine that is more powerful than ever before.
These servo amplifiers can connect to CC-Link IE TSN to perform high-ความเร็ว, high-precision การควบคุม.
The servo amplifiers support linear servo motors in addition to the rotary motors.

More details
