Product features -Overview-

Basic system configuration

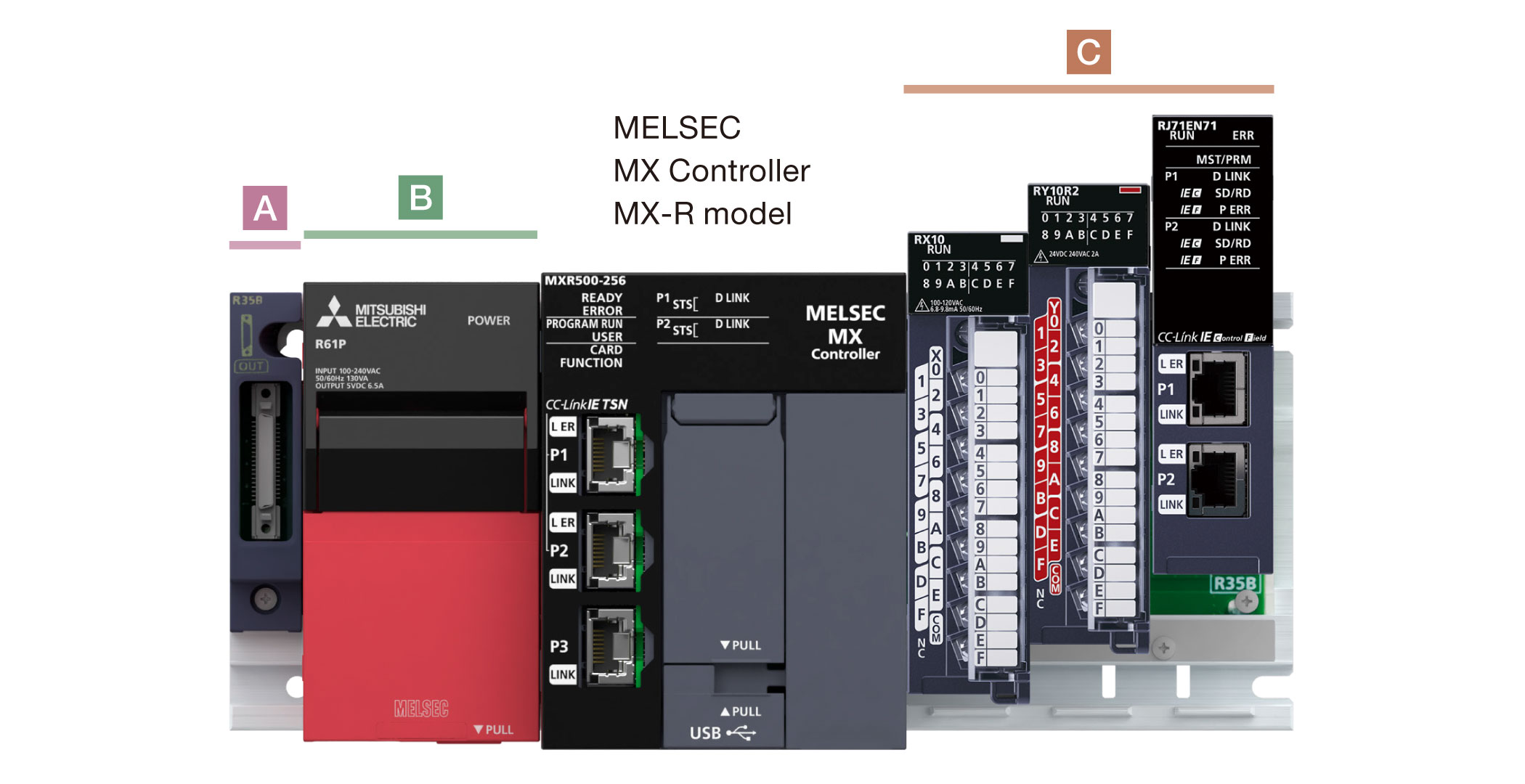

The MELSEC MX Controller (MX-R model) is mounted on the MELSEC iQ-R Series main base unit.
This product can be used in combination with the products listed in the "List of devices that support MELSEC MX Controller (MX-R model)" below.

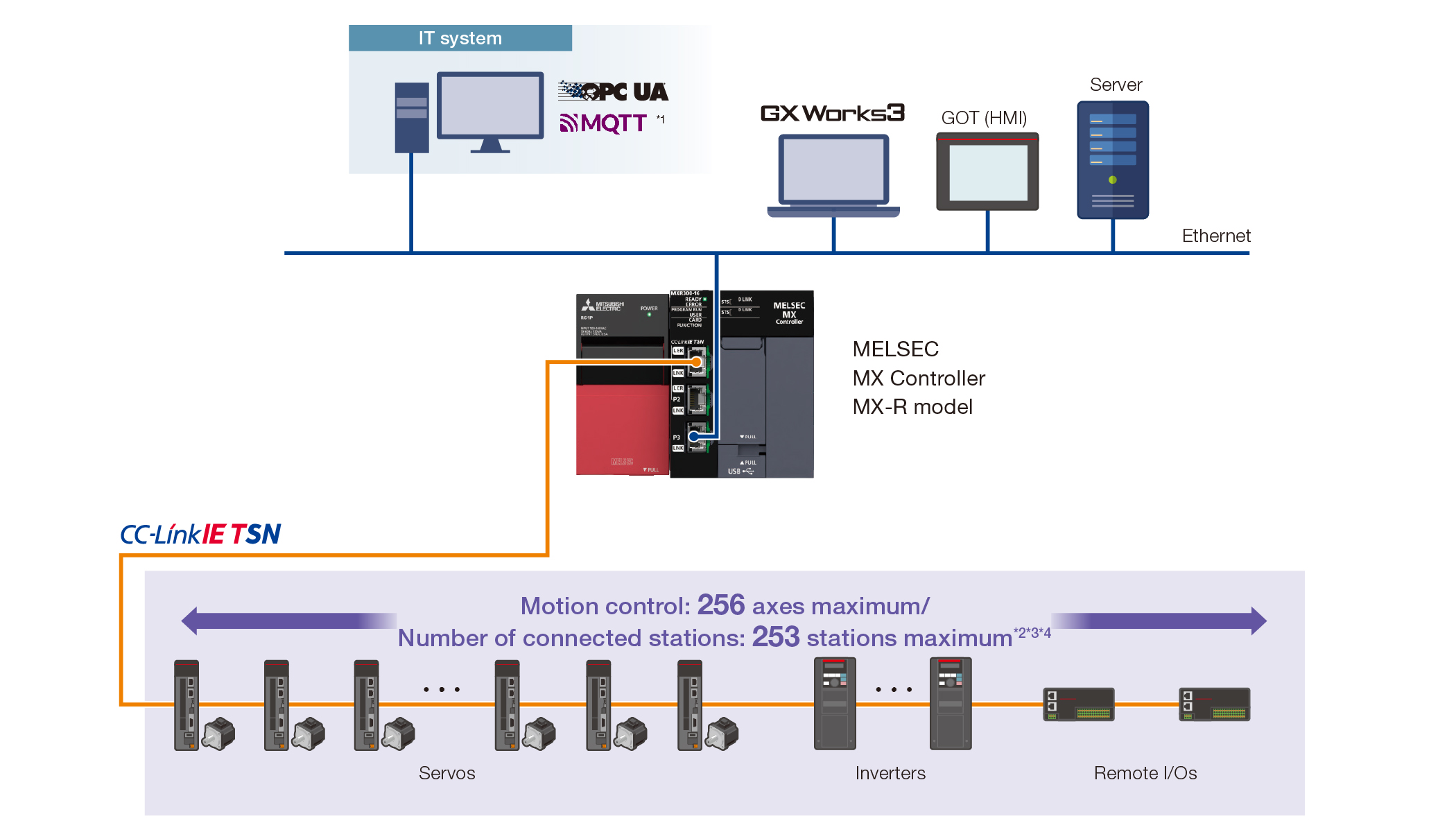

System configuration example

• *1:Future support
• *2:The multi-axis servo amplifier can control multiple axes with one station occupied.
• *3:Device stations supporting connections to 253 stations will be available in the future. For details, refer to the Technical Bulletin (FA-A-0451).
• *4:Only the servo can execute motion control.

Modules

The following lists the devices that support MELSEC MX Controller (MX-R model).
