Product features -Analog/Temperature Control-

    Multiple Input (Voltage/Current/Temperature) Module

    Channel isolated multiple input

    Channel isolated multiple input

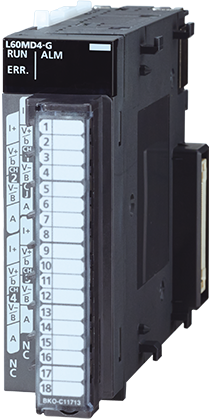

    L60MD4-G

    Number of inputs:  4 channels

    Input voltage:  -10 to 10 V DC

    Input current:  0 to 20 mA DC

    Input micro voltage:  -100 to 100 mV

    Input thermocouple:  K, J, T, E, N, R, S, B, U, L, PLⅡ, W5Re/W26Re

    Input RTD:  Pt1000, Pt100, JPt100, Pt50

    Conversion speed:  50 ms/channel

    Resolution

    Voltage/Current/micro voltage:  1/20000

    Thermocouple:  B, R, S, N, PLⅡ, W5Re/W26Re: 0.3°C,
    K, E, J, T, U, L: 0.1°C

    RTD:  Pt100, JPt100: 0.03°C/0.1°C, Pt1000, Pt50: 0.1°C

    Analog Input Modules

    Analog Input

    Analog Input

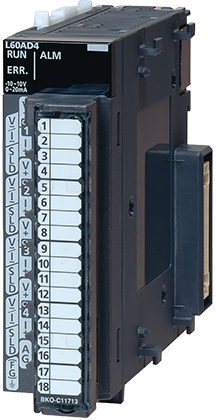

    L60AD4

    Number of inputs: 4 channels
    Input voltage: -10 to 10 V DC
    Input current: 0 to 20 mA DC
    Conversion speed: 20 µs/channel
    Resolution: 1/20000

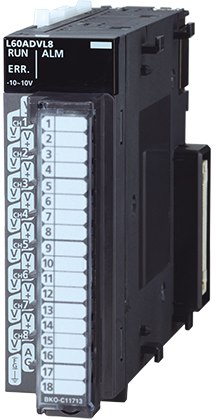

    L60ADVL8

    Number of inputs: 8 channels
    Input voltage: -10 to 10 V DC
    Conversion speed: 1 ms/channel
    Resolution: 1/16000

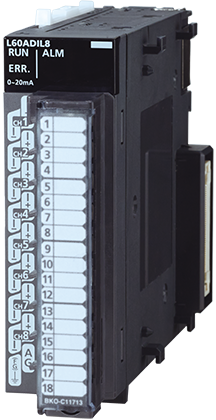

    L60ADIL8

    Number of inputs: 8 channels
    Input current: 0 to 20 mA DC
    Conversion speed: 1 ms/channel
    Resolution: 1/8000

    Analog Output Modules

    Analog Output

    Analog Output

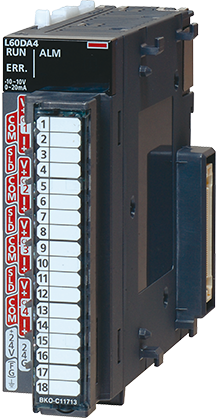

    L60DA4

    Number of outputs: 4 channels
    Output voltage: -10 to 10 V DC
    Output current: 0 to 20 mA DC
    Conversion speed: 20 µs/channel
    Resolution: 1/20000

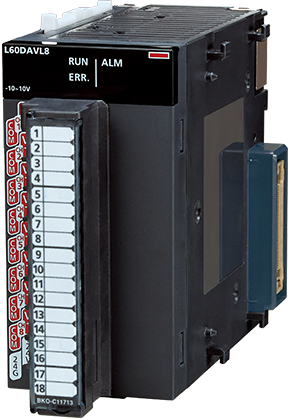

    L60DAVL8

    Number of outputs: 8 channels
    Output voltage: -10 to 10 V DC
    Conversion speed: 200 µs/channel
    Resolution: 1/16000

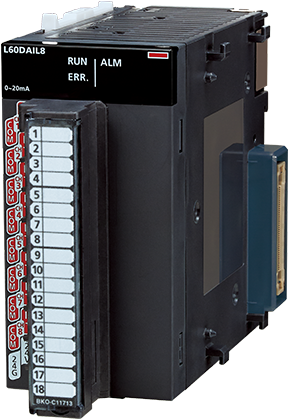

    L60DAIL8

    Number of outputs: 8 channels
    Output current: 0 to 20 mA DC
    Conversion speed: 200 µs/channel
    Resolution: 1/8000

    Analog I/O Module

    Analog I/O

    Analog I/O

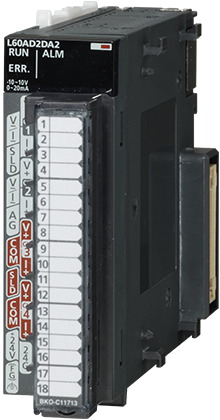

    L60AD2DA2

    Analog input specifications
    Number of inputs: 2 channels
    Input voltage: -10 to 10 V DC
    Input current: 0 to 20 mA DC
    Conversion speed: 80 µs/channel
    Resolution: 1/12000
    Analog output specifications
    Number of outputs: 2 channels
    Output voltage: -10 to 10 V DC
    Output current: 0 to 20 mA DC
    Conversion speed: 80 µs/channel
    Resolution: 1/12000

    Temperature Input Module

    RTD input

    RTD input

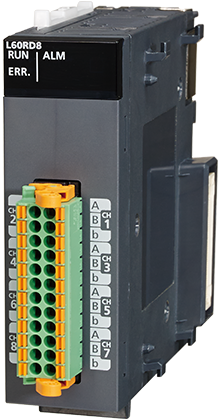

    L60RD8

    Number of inputs: 8 channels
    Input RTD: Pt1000, Pt100 (JIS C 1604-2013), JPt100 (JIS C 1604-1981), Pt50 (JIS C 1604-1981),
    Ni500 (DIN 43760 1987), Ni120 (DIN 43760 1987), Ni100 (DIN 43760 1987),
    Cu100 (GOST 6651-2009, α=0.00428), Cu50 (GOST 6651-2009, α=0.00428)
    Conversion speed: 40 ms/ch
    Resolution: 0.1°C

    ■ Multiple/analog/temperature input features

    Function Multiple input (voltage/current/
    temperature) module     		Analog input module Analog I/O module Temperature input module
    L60MD4-G L60AD4 L60ADVL8 L60ADIL8 L60AD2DA2 L60RD8
    Channel isolation ● — — — — —
    AD conversion method Sampling processing ● ● ● ● ● ●
    Averaging processing Time average ● ● ● ● ● ●
    Count average ● ● ● ● ● ●
    Moving average ● ● ● ● ● ●
    Time lag filter function — — — — — —
    Digital filtering function — — — — — —
    Conversion speed switch function — ● — — — —
    Input range extended mode function ● ● *1 ● ● ● —
    Maximum value/minimum value hold function ● ● ● ● ● ●
    Disconnection detection function ● — — — — ●
    Input signal error detection function ● ● ● ● ● —
    Input signal error detection extension function — ● *1 ● ● — —
    Warning output function Process alarm ● ● ● ● — ●
    Rate alarm ● — — — — ●
    Scaling function ● ● ● ● ● ●
    2-point sensor compensation function — — — — — ●
    Shift function — *2 ● *1 — *2 — *2 — *2 ●
    Digital clipping function — *2 ● *1 — *2 — *2 — *2 —
    Difference conversion function — *2 ● *1 — *2 — *2 — *2 —
    Logging function — *3 ● *1 — *3 — *3 ● — *3
    Flow amount integration function — ● *1 — — — —
    Trigger conversion function — — — — — —
    Variable arithmetic function — — — — ● *4 —
    Variable conversion characteristics function — — — — ● *4 —
    Variable conversion characteristics function +
    variable arithmetic function     		— — — — ● *4 —
    • *1.Supported by models whose first five serial number digits are “13041” or later.
    • *2.Please use function blocks (FB) for the shift function, digital clipping function, and difference conversion function. The function blocks (FB) can be downloaded for free from the MELSOFT Library on the Mitsubishi Electric FA site.
    • *3.For logging, please use the data logging function of the CPU module.
    • *4.Supported by models whose first five serial number digits are “17042” or later.

    ■ Analog output features

    Function Analog output module Analog I/O module
    L60DA4 L60DAVL8 L60DAIL8 L60AD2DA2
    Analog output HOLD/CLEAR function ● ● ● ●
    Scaling function ● ● ● ●
    Warning output function Process alarm ● ● ● ●
    Wave output function ● *5 ● ● ●
    Wave output step action function ● *5 ● ● ●
    Variable arithmetic function — — — ● *6
    Variable conversion characteristics function — — — ● *6
    Variable conversion characteristics function +
    variable arithmetic function     		— — — ● *6
    • *5.Supported by models whose first five serial number digits are “14041” or later.
    • *6.Supported by models whose first five serial number digits are “17042” or later.

    Temperature Control Modules

    Thermocouple input

    Thermocouple input

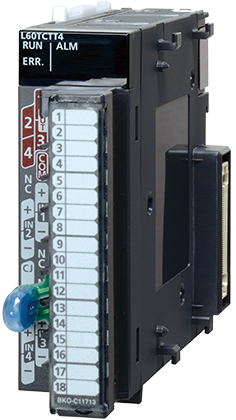

    L60TCTT4

    Temperature inputs: 4 channels

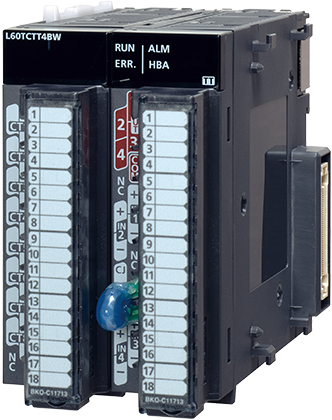

    L60TCTT4BW

    Temperature inputs: 4 channels
    Heater disconnection detection function

    RTD input

    RTD input

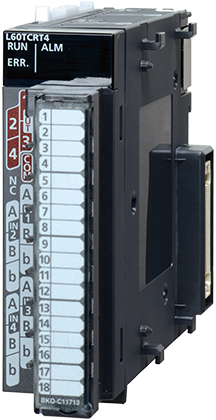

    L60TCRT4

    Temperature inputs: 4 channels

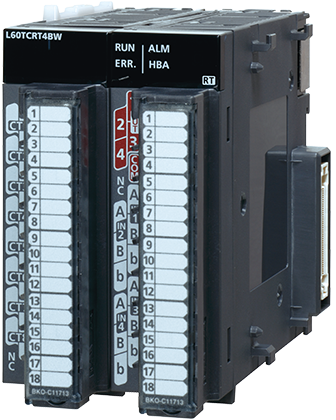

    L60TCRT4BW

    Temperature inputs: 4 channels
    Heater disconnection detection function

    Function L60TCTT4 L60TCTT4BW L60TCRT4 L60TCRT4BW
    Thermocouple input RTD input
    Standard control ● ● ● ●
    Heating-cooling control ● ● ● ●
    Self-tuning function ● ● ● ●
    Peak current suppression function ● ● ● ●
    Simultaneous temperature rise function ● ● ● ●
    Selectable sampling cycle ● ● ● ●
    Temperature input mode ● ● ● ●
    Temperature control mode ● ● ● ●
    Heater disconnection detection function — ● — ●
