Product features -I/O-

    Input Modules

    AC input

    AC input

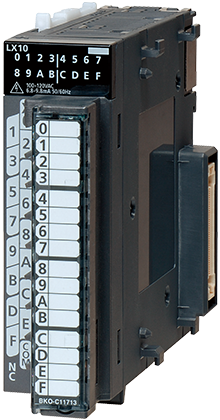

    LX10

    Number of inputs: 16 points
    100 to 120 V AC
    18-point terminal block

    LX28

    Number of inputs: 8 points
    100 to 240 V AC
    18-point terminal block

    DC input

    DC input

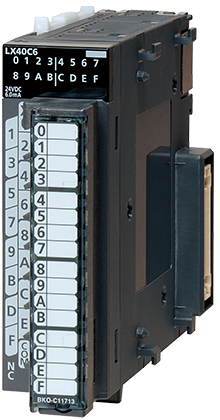

    LX40C6

    Number of inputs: 16 points
    24 V DC
    18-point terminal block

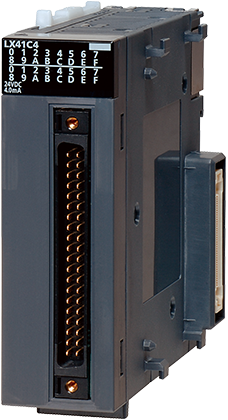

    LX41C4

    Number of inputs: 32 points
    24 V DC
    40-pin connector

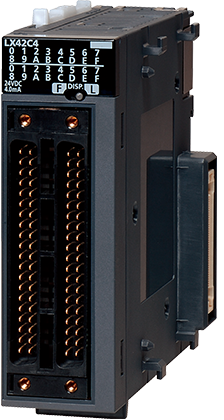

    LX42C4

    Number of inputs: 64 points
    24 V DC
    40-pin connector ×2

    Output Modules

    Contact output

    Contact output

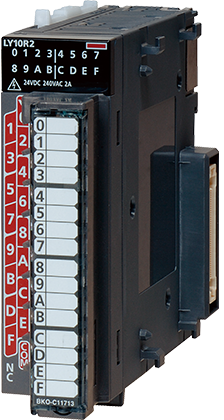

    LY10R2

    Number of outputs: 16 points
    24 V DC/240 V AC
    Rated switching current: 2 A/point
    18-point terminal block

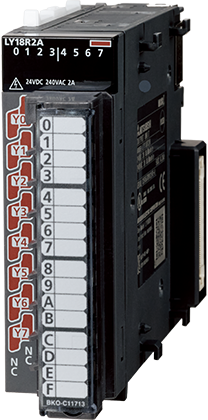

    LY18R2A

    Number of outputs: 8 points
    (all points independent)
    24 V DC/240 V AC
    Rated switching current: 2 A/point
    18-point terminal block

    Triac output

    Triac output

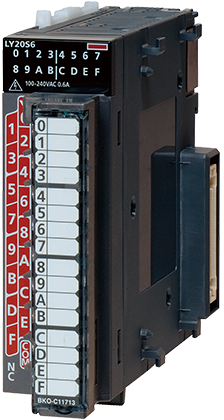

    LY20S6

    Number of outputs: 16 points
    100 to 240 V AC
    Max. load current: 0.6 A/point
    18-point terminal block

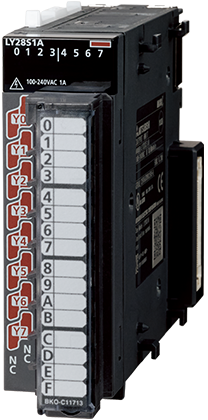

    LY28S1A

    Number of outputs: 8 points
    (all points independent)
    100 to 240 V AC
    Max. load current: 1 A/point
    18-point terminal block

    Transistor output (Sink type)

    Transistor output (Sink type)

    LY40NT5P

    Number of outputs: 16 points
    12 to 24 V DC
    Max. load current: 0.5 A/point
    Protection function
    18-point terminal block

    LY41NT1P

    Number of outputs: 32 points
    12 to 24 V DC
    Max. load current: 0.1 A/point
    Protection function
    40-pin connector

    LY42NT1P

    Number of outputs: 64 points
    12 to 24 V DC
    Max. load current: 0.1 A/point
    Protection function
    40-pin connector ×2

    Transistor output
    (Source type)

    Transistor output (Source type)

    LY40PT5P

    Number of outputs: 16 points
    12 to 24 V DC
    Max. load current: 0.5 A/point
    Protection function
    18-point terminal block

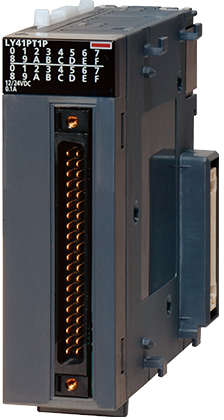

    LY41PT1P

    Number of outputs: 32 points
    12 to 24 V DC
    Max. load current: 0.1 A/point
    Protection function
    40-pin connector

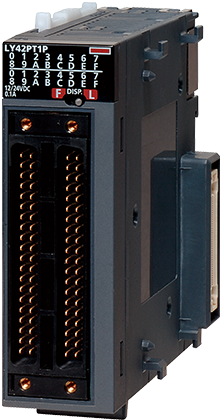

    LY42PT1P

    Number of outputs: 64 points
    12 to 24 V DC
    Max. load current: 0.1 A/point
    Protection function
    40-pin connector ×2

    I/O Combined Modules

    DC input / Transistor output (Sink type)

    DC input / Transistor output (Sink type)

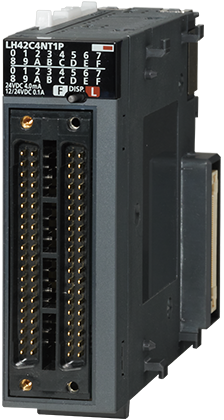

    LH42C4NT1P

    Input specifications
    Number of inputs: 32 points
    24 V DC
    40-pin connector
    Output specifications
    Number of outputs: 32 points
    12 to 24 V DC
    Max. load current: 0.1 A/point
    Protection function
    40-pin connector

    DC input / Transistor output (Source type)

    DC input / Transistor output (Source type)

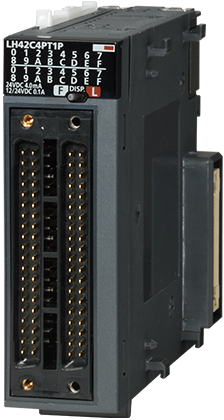

    LH42C4PT1P

    Input specifications
    Number of inputs: 32 points
    24 V DC
    40-pin connector
    Output specifications
    Number of outputs: 32 points
    12 to 24 V DC
    Max. load current: 0.1 A/point
    Protection function
    40-pin connector

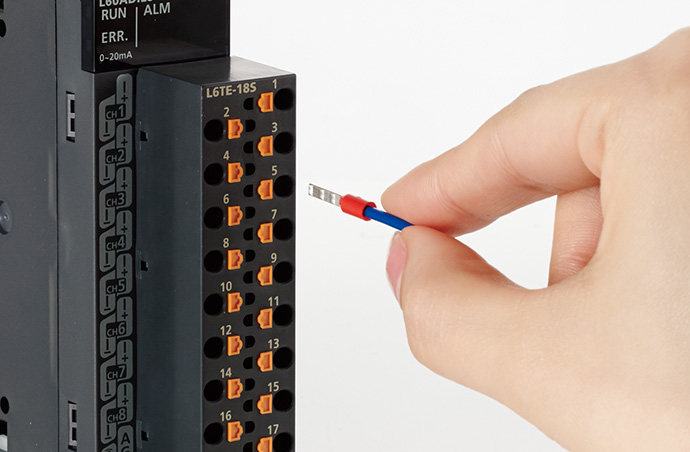

    Spring clamp terminal block (push-in type): L6TE-18S

    The screw terminal block of installed modules can be replaced with a push-in type spring clamp terminal block.
    This terminal block type helps to reduce the amount of wiring and maintenance time.

    ■ Push-in type for reduced wiring

    Easier to wire just by inserting into the terminal block.

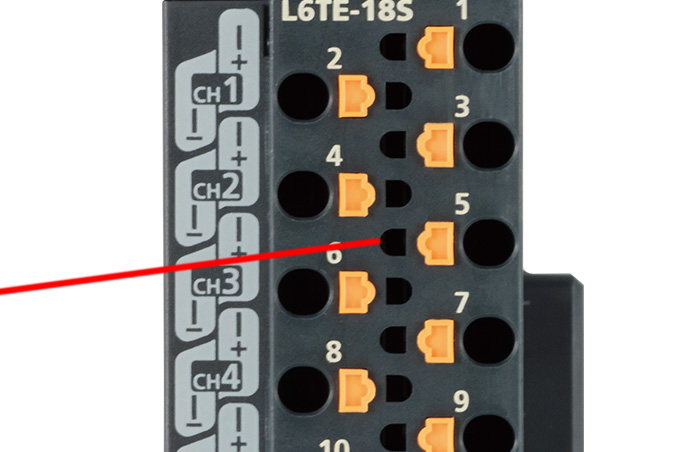

    ■ Simple to confirm signal integrity

    Includes dedicated terminals for insertion of a test probe, for example.
