Product features -Flexible I/O/High-Speed Counter-

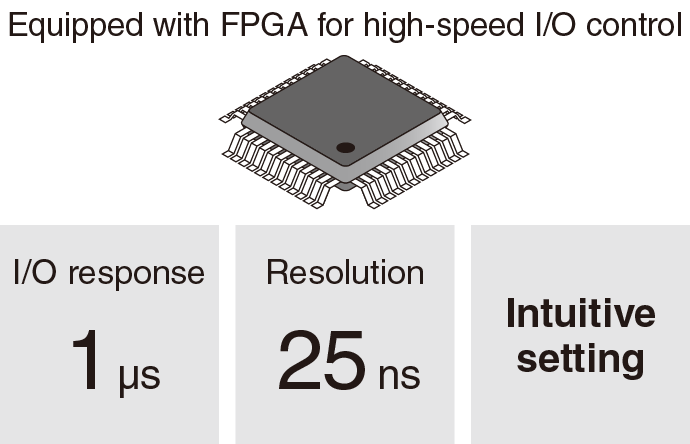

    Flexible High-Speed I/O Control Module

    I/O
    (DC/differential)

    I/O (DC/differential)

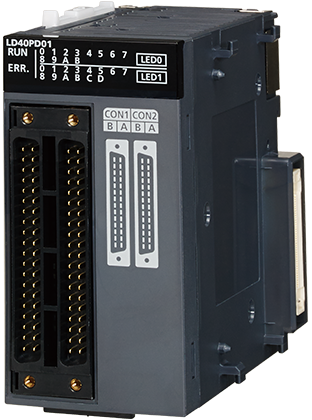

    LD40PD01

    Input specifications
    Number of inputs: 12 points (all for 5 V DC/24 V DC/differential)
    Pulse input speed: Max. 8M pulse/s (2MHz)
    Output specifications
    Number of outputs: 8 points for 5 V DC to 24 V DC, 6 points for differential
    Pulse output speed: Max. 8M pulse/s (2MHz)

    High-Speed Counter Modules

    DC input

    DC input

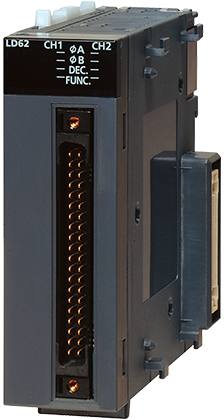

    LD62

    Number of channels: 2 channels
    5/12/24V DC input
    Max. counting speed: 200K pulses/s

    Differential input

    Differential input

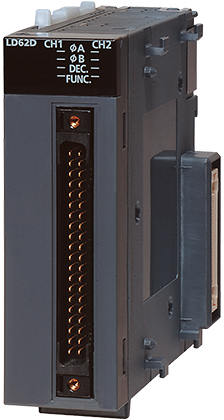

    LD62D

    Number of channels: 2 channels
    Differential driver input
    Max. counting speed: 500K pulses/s

    Function LD62 LD62D
    DC input Differential input
    Linear counter function ● ●
    Ring counter function ● ●
    Coincidence output function ● ●
    Preset function ● ●
    Disable count function ● ●
    Latch counter function ● ●
    Sampling counter function ● ●
    Periodic pulse counter function ● ●
