Product features -CPU-

    CPU Modules

    Communication interface:
    RS-232

    Communication interface: RS-232

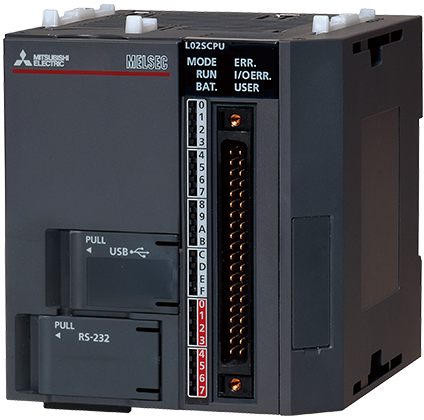

    L02SCPU

    General-purpose output: Sink type
    Program capacity: 20K steps
    Basic operation processing speed: 60 ns

    L02SCPU-P

    General-purpose output: Source type
    Program capacity: 20K steps
    Basic operation processing speed: 60 ns

    End cover is enclosed.
    Cannot be mounted on display unit (L6DSPU), RS-232 adapter, RS-422/485 adapter.

    Communication interface:
    Ethernet

    Communication interface: Ethernet

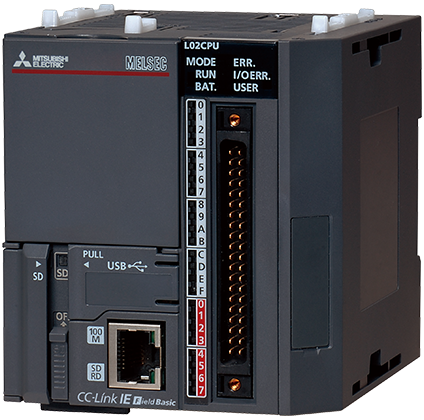

    L02CPU

    General-purpose output: Sink type
    Program capacity: 20K steps
    Basic operation processing speed: 40 ns

    L02CPU-P

    General-purpose output: Source type
    Program capacity: 20K steps
    Basic operation processing speed: 40 ns

    END cover is included.

    L06CPU

    General-purpose output: Sink type
    Program capacity: 60K steps
    Basic operation processing speed: 9.5 ns

    L06CPU-P

    General-purpose output: Source type
    Program capacity: 60K steps
    Basic operation processing speed: 9.5 ns

    END cover is included.

    L26CPU

    General-purpose output: Sink type
    Program capacity: 260K steps
    Basic operation processing speed: 9.5 ns

    L26CPU-P

    General-purpose output: Source type
    Program capacity: 260K steps
    Basic operation processing speed: 9.5 ns

    END cover is included.

    Communication interface:
    Ethernet port and a built-in
    CC-Link interface

    Communication interface: Ethernet port and a built-in CC-Link interface

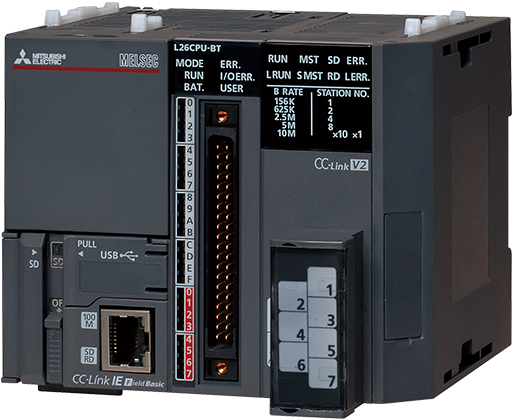

    L26CPU-BT

    General-purpose output: Sink type
    Program capacity: 260K steps
    Basic operation processing speed: 9.5 ns

    L26CPU-PBT

    General-purpose output: Source type
    Program capacity: 260K steps
    Basic operation processing speed: 9.5 ns

    END cover is included.

    Model General-purpose output Number of I/O points Program capacity Basic operation processing speed (LD instruction) Peripheral connection ports Built-in network
    L02SCPU Sink type 1024 points 20K steps 60 ns USB/RS-232 —
    L02CPU 40 ns USB/Ethernet —
    L06CPU 4096 points 60K steps 9.5 ns —
    L26CPU 260K steps —
    L26CPU-BT
    L02SCPU-P Source type 1024 points 20K steps 60 ns USB/RS-232 —
    L02CPU-P 40 ns USB/Ethernet —
    L06CPU-P 4096 points 60K steps 9.5 ns —
    L26CPU-P 260K steps —
    L26CPU-PBT

    CPU packages

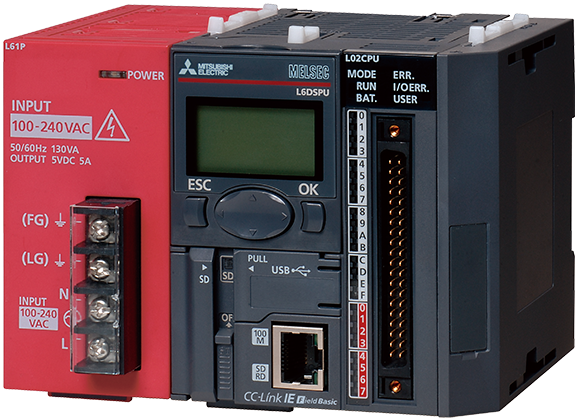

    • L02CPU-SET

      Includes CPU (L02CPU), power supply module (L61P), and display unit (L6DSPU).

    • L02CPU-P-SET

      Includes CPU (L02CPU-P), power supply module (L61P), and display unit (L6DSPU).

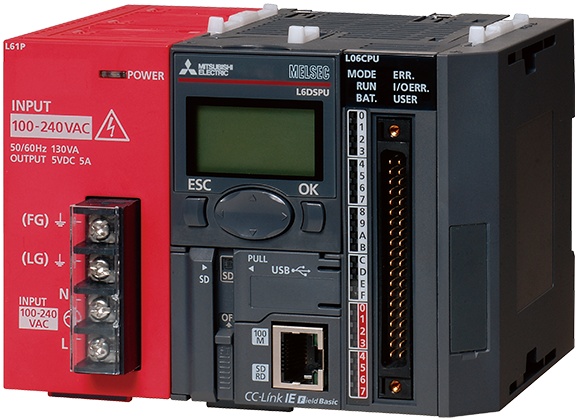

    • L06CPU-SET

      Includes CPU (L06CPU), power supply module (L61P), and display unit (L6DSPU).

    • L06CPU-P-SET

      Includes CPU (L06CPU-P), power supply module (L61P), and display unit (L6DSPU).

    • L26CPU-SET

      Includes CPU (L26CPU), power supply module (L61P), and display unit (L6DSPU).

    • L26CPU-P-SET

      Includes CPU (L26CPU-P), power supply module (L61P), and display unit (L6DSPU).

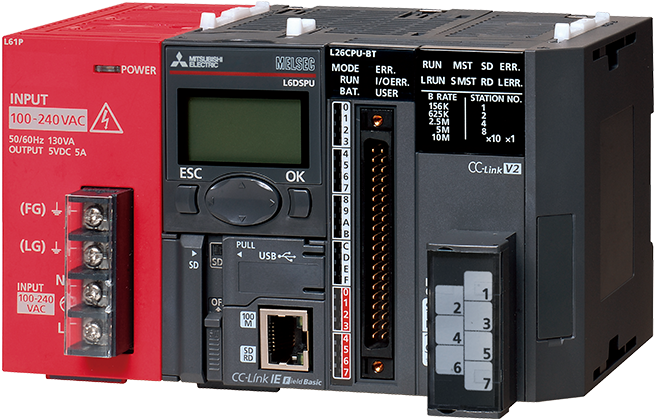

    • L26CPU-BT-SET

      Includes CPU (L26CPU-BT), power supply module (L61P), and display unit (L6DSPU).

    • L26CPU-PBT-SET

      Includes CPU (L26CPU-PBT), power supply module (L61P), and display unit (L6DSPU).

    Branch/Extension Modules

    For extension system

    For extension system

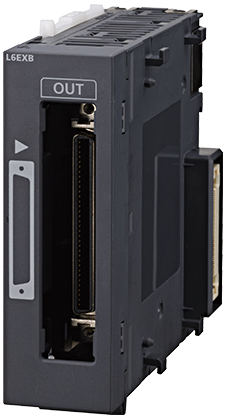

    L6EXB

    branch

    L6EXE

    extension

    Power Supply Modules

    AC input

    AC input

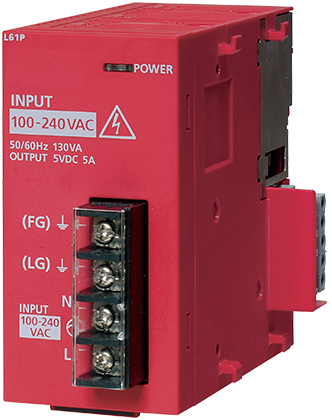

    L61P

    Input: 100 to 240 V AC
    Output: 5 V DC, 5 A

    DC input

    DC input

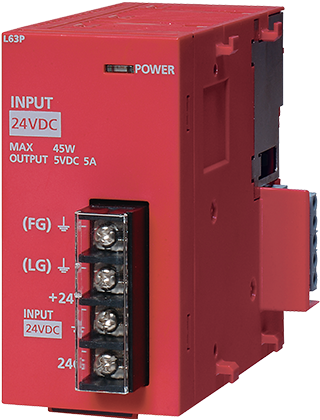

    L63P

    Input: 24 V DC
    Output: 5 V DC, 5 A

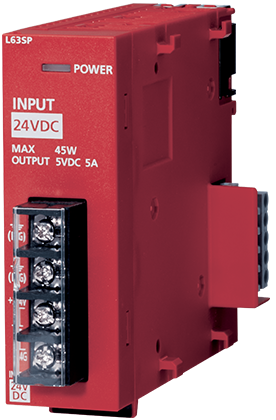

    L63SP

    Input: 24 V DC
    Output: 5 V DC, 5 A
    Slim type
    No isolation

    RS-232 Adapter

    RS-232 adapter

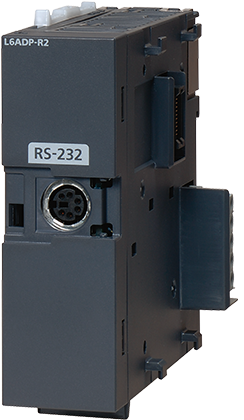

    L6ADP-R2

    Transmission speed: 115.2 kbps
    GOT(HMI) connection
    MELSOFT *1 connection
    Predefined protocol support function
    Serial communication function

    • *1.Please refer to each MELSOFT product manual for details on the supported software.

    RS-422/485 Adapter

    RS-422/485 adapter

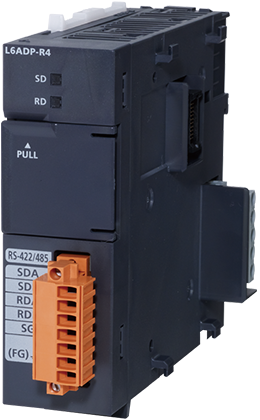

    L6ADP-R4

    Transmission speed: 115.2 kbps
    GOT(HMI) connection
    Predefined protocol support function
    Serial Communication function

    END Cover with Error Terminal

    END cover with error terminal

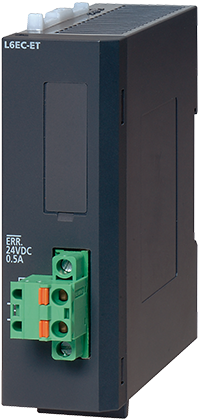

    L6EC-ET

    Error output relay

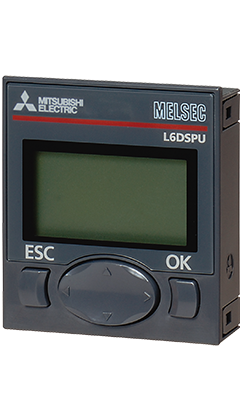

    Display Unit

    Display unit

    L6DSPU
