Controllers MELSEC-L Series
คุณสมบัติผลิตภัณฑ์ -Simple Motion/Positioning-
Simple Motion Modules
SSCNETⅢ/H-compatible
SSCNETⅢ/H-compatible

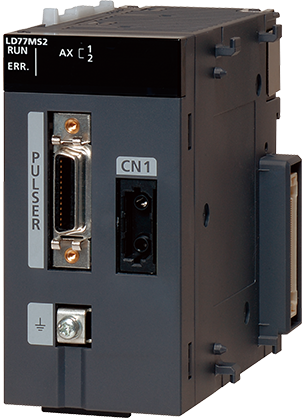

จำนวนแกนควบคุม: 2 axes
รอบการสื่อสาร: 150 Mbps
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 100 m
จำนวนแกนควบคุม: 4 axes
รอบการสื่อสาร: 150 Mbps
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 100 m

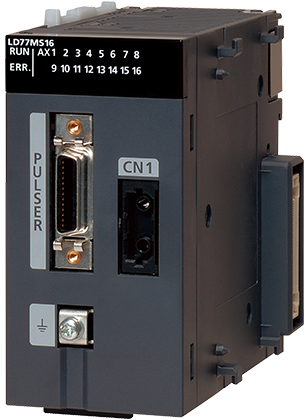

จำนวนแกนควบคุม: 16 axes
รอบการสื่อสาร: 150 Mbps
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 100 m
* SSCNET(Servo System Controller NETwork)
| ฟังก์ชัน | LD77MS2 | LD77MS4 | LD77MS16 | |
|---|---|---|---|---|
| ฟังก์ชันควบคุม Positioning | ● | ● | ● | |
| ฟังก์ชันควบคุมความเร็ว/แรงบิด | ● | ● | ● | |
| Linear interpolation | 2 axes | 2/3/4 axes | 2/3/4 axes | |
| Circular interpolation | 2 axes | 2 axes | 2 axes | |
| ฟังก์ชันควบคุมแบบ Synchronous | External encoder | ● | ● | ● |
| Cam | ● | ● | ● | |
| การชดเชยเฟส | ● | ● | ● | |
| ฟังก์ชันใช้งาน Manual pulse generator | ● | ● | ● | |
| OPR Control | ● | ● | ● | |
Positioning Modules
Open collector output
Open collector output

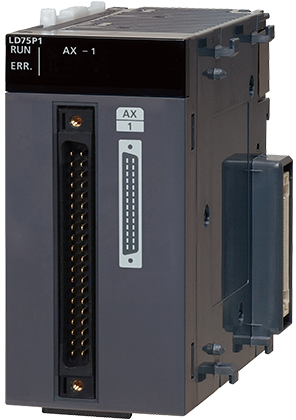

จำนวนแกนควบคุม: 1 axis
จำนวน output pulse สูงสุด: 200K pulses/s
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 2 m

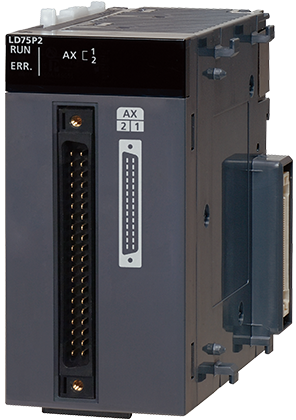

จำนวนแกนควบคุม: 2 axis
จำนวน output pulse สูงสุด: 200K pulses/s
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 2 m

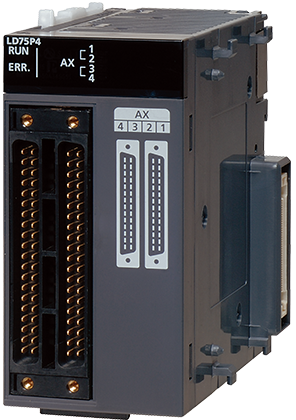

จำนวนแกนควบคุม: 4 axis
จำนวน output pulse สูงสุด: 200K pulses/s
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 2 m
Differential output
Differential output
จำนวนแกนควบคุม: 1 axis
จำนวน output pulse สูงสุด: 4M pulse/s
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 10 m

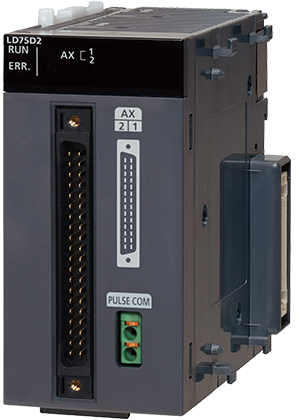

จำนวนแกนควบคุม: 2 axis
จำนวน output pulse สูงสุด: 4M pulse/s
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 10 m

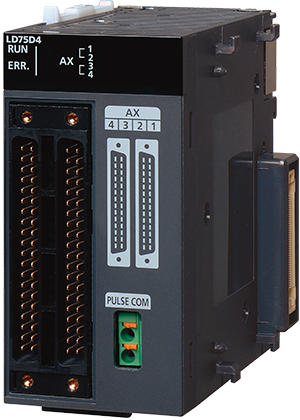

จำนวนแกนควบคุม: 4 axis
จำนวน output pulse สูงสุด: 4M pulse/s
ข้อมูล Positioning: 600 data/axis
ระยะเชื่อมต่อสูงสุด: 10 m
| ฟังก์ชัน | LD75P1 | LD75P2 | LD75P4 | LD75D1 | LD75D2 | LD75D4 |
|---|---|---|---|---|---|---|
| Open collector output | Differential output | |||||
| ฟังก์ชันควบคุม Positioning | ● | ● | ● | ● | ● | ● |
| ฟังก์ชันควบคุมความเร็ว | ● | ● | ● | ● | ● | ● |
| Linear interpolation | — | 2 axes | 2/3/4 axes | — | 2 axes | 2/3/4 axes |
| Circular interpolation | — | 2 axes | 2 axes | — | 2 axes | 2 axes |
| Helical interpolation | — | — | 3 axes | — | — | 3 axes |
| OPR Control | ● | ● | ● | ● | ● | ● |
