Controllers MELSEC-Q Series
คุณสมบัติของผลิตภัณฑ์ -อะนาล็อก-
อะนาล็อก I/O
Application specific intelligent โมดูล
A ช่วง of analog โมดูล ideal for process การควบคุม applications
Isolated analog โมดูล suitable for process การควบคุม
Channel isolated
- สูง resolution analog-digital converter โมดูล
- สูง resolution analog-digital converter โมดูล
(with signal conditioning ฟังก์ชัน) - สูง resolution digital-analog converter โมดูล
- อะนาล็อก-digital converter โมดูล
- อะนาล็อก-digital converter โมดูล
(with signal conditioning ฟังก์ชัน) - Digital-analog converter โมดูล

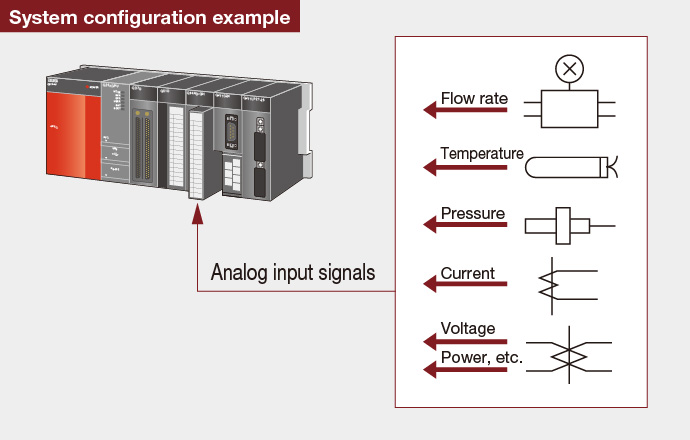

The channel isolated analog โมดูล are specifically designed for process การควบคุม applications by offering high accuracy conversion combined with high isolation voltage. Flow meters, pressure gauges, etc. can be directly connected to the analog input, and การควบคุม valves to the analog output. Hardware and installation costs can be substantially reduced because external isolation amplifiers are not required. When used with a general purpose การควบคุมler, a low cost process การควบคุม solution can be created.
สูง dielectric withstand voltage
■ Electric disturbances such as current and noise can be isolated.

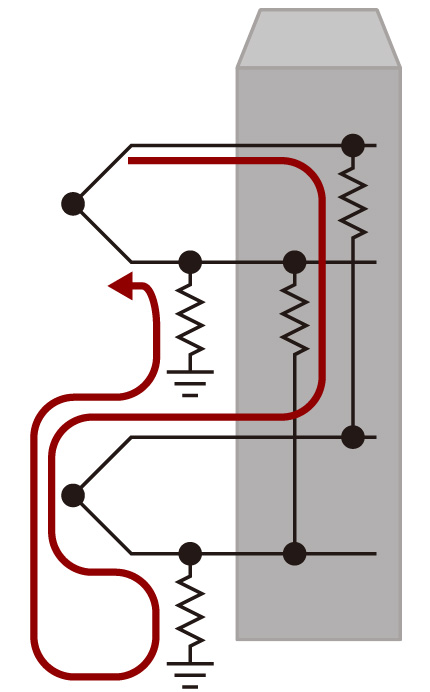

●มาตรฐาน analog input module

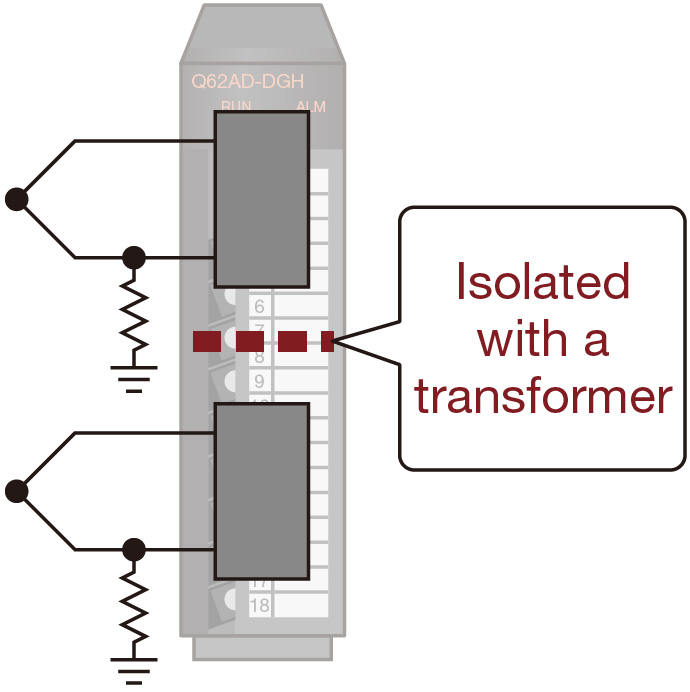

●Isolated analog input module
■ External signal converters are not required.

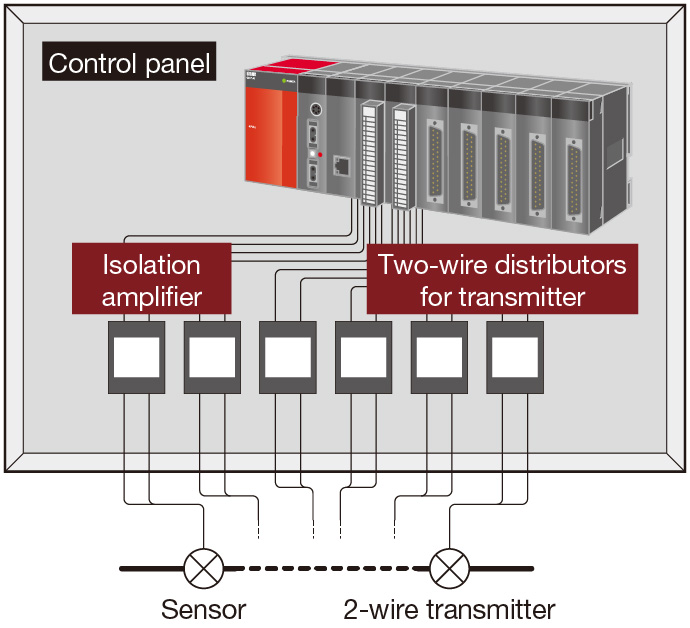

●Without channel isolated analog module

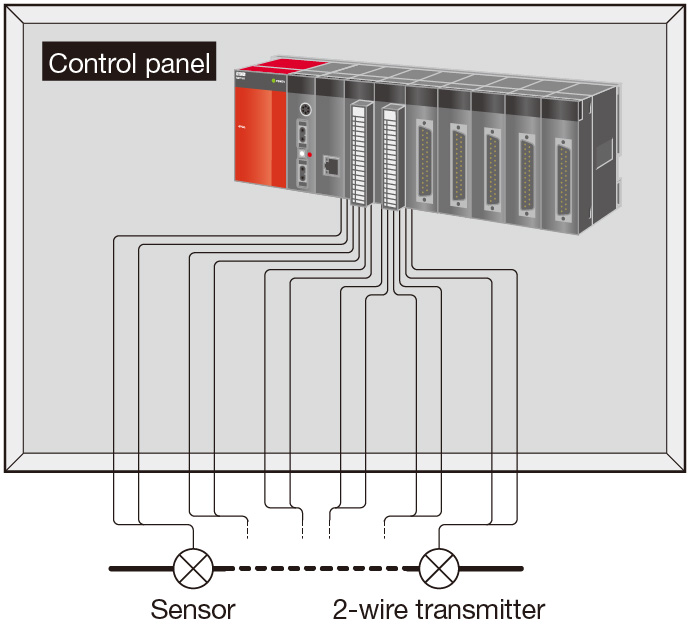

●With channel isolated analog module
สูง conversion ความเร็ว analog โมดูล
- สูง ความเร็ว analog-digital converter โมดูล
- อะนาล็อก-digital converter โมดูล
- สูง ความเร็ว digital-analog converter โมดูล
- Digital-analog converter โมดูล
- อะนาล็อก-digital/Digital-analog converter โมดูล

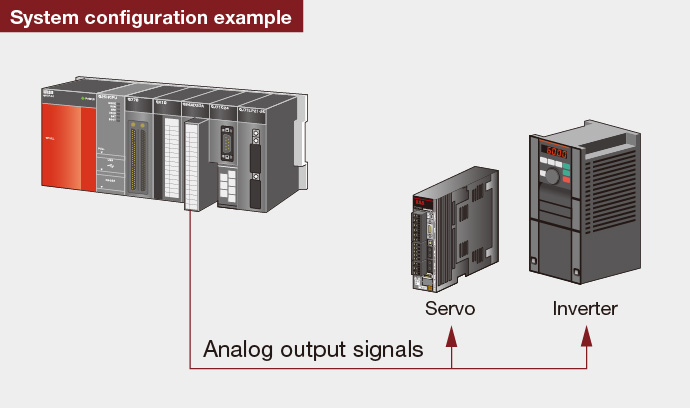

Many high-ความเร็ว A/D and D/A conversion (analog) โมดูล are available. These โมดูล are feature packed to allow maximum flexibility when connecting to อุปกรณ์s. Both ความเร็ว and accuracy are great enough to การควบคุม sensitive motion applications using servos or inverters.
ไลน์อัป
| จำนวนช่อง | Channel isolated | อะนาล็อก input | อะนาล็อก output | |||
|---|---|---|---|---|---|---|
| Voltage input | กระแสไฟฟ้า input | Signal conditioning | Voltage output | กระแสไฟฟ้า output | ||
| 2 | ● | — | — | Q62AD-DGH | Q62DA-FG | |
| — | — | — | — |
Q62DAN Q64AD2DA *1 |
||
| 4 | ● | Q64AD-GH | — | — | — | |
| — |
Q64AD Q64ADH Q64AD2DA *1 |
— |
Q64DAN Q64DAH |
|||
| 6 | ● | — | — | Q66AD-DG | Q66DA-G | |
| 8 | ● | Q68AD-G | — | — | — | |
| — | Q68ADV | Q68ADI | — | Q68DAVN | Q68DAIN | |
- *1.โมดูลรวม I/O
