เคาน์เตอร์ความเร็วสูง, อินพุตพัลส์
A selection of high-ความเร็ว จำนวนer โมดูล and pulse จำนวนer โมดูล for accuracy intensive, high resolution การควบคุม applications is available
อินพุตพัลส์ โมดูล capable of high-ความเร็ว จำนวนing
- โมดูลเคาน์เตอร์ความเร็วสูง มาตรฐาน ชนิด
- Multi-channel high-ความเร็ว จำนวนer โมดูล
- 4 Mpps compatible high-ความเร็ว จำนวนer โมดูล
- Multi-ฟังก์ชัน จำนวนer/timer โมดูล

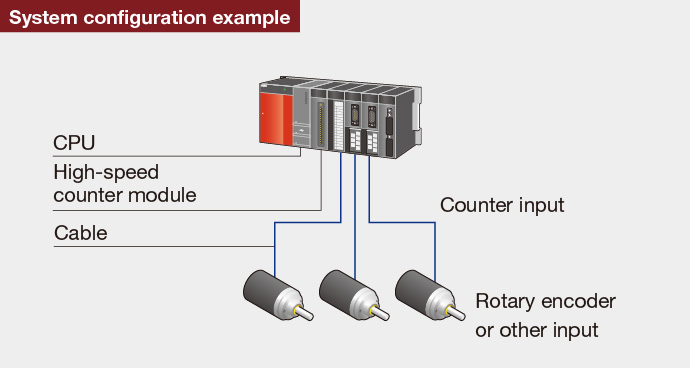

Inputs may be connected to a variety of อุปกรณ์s for positioning การควบคุม, precision measurement, etc. The maximum จำนวนing ความเร็ว may be adjusted via parameter (excluding QD64D2) for more reliable จำนวนing at lower frequencies.
- External coincidence output (QD64D2 includes 2 per channel): Select coincidence output, continuous comparison (QD64D2 only), or the coincidence detection interrupt ฟังก์ชัน for flexible high-ความเร็ว external อุปกรณ์ การควบคุม.
- Many ฟังก์ชัน are available to satisfy application requirements including the coincidence output test ฟังก์ชัน (QD64D2 only), latch จำนวนer ฟังก์ชัน (excluding QD63P6), and preset ฟังก์ชัน.
- Calculate pulses at ความเร็วs up to 8 Mpps (4 multiples of 2 phases). Perform precise position tracking using a high-resolution encoder for demanding applications such as semiconductor and LCD manufacturing. (QD65PD2)
| QD62 (อินพุต DC sinking output ชนิด) |
QD62E (อินพุต DC sourcing output ชนิด) |
QD62D (differential input sinking output ชนิด) |
||
|---|---|---|---|---|
| จำนวนช่อง | 2 channels | |||
| Count input signal | เฟส | 1-phase input, 2-phase input, CW/CCW | ||
| Signal level | 5/12/24 V DC 2…5 mA | EIA มาตรฐาน RS-422-A Differential line driver level (AM26LS31 [manufactured by Texas Instruments] or equivalent) |
||
| อินพุตพัลส์ | 1-phase pulse input (x1, x2), CW/CCW, 2-phase (x1, x2, x4) | |||
| Counting ความเร็ว (max.) | 200 kpps | 500 kpps | ||
| ฟังก์ชัน |
|
|||
| QD63P6 (อินพุต DC) |
QD64D2 (differential input, sink output ชนิด) |
QD65PD2 (DC/Differential input, external output terminals) |
||
|---|---|---|---|---|
| จำนวนช่อง | 6 channels | 2 channels | 2 channels | |
| Count input signal | เฟส | 1-phase input, 2-phase input, CW/CCW | ||
| Signal level | 5 V DC 6.4…11.5 mA | EIA มาตรฐาน RS-422-A, differential line driver level (AM26LS31 (manufactured by Texas Instruments Incorporated) or equivalent) |
[Differential input] EIA มาตรฐาน RS-422-A, differential line driver level (AM26LS31 [manufactured by Texas Instruments] or equivalent) [อินพุต DC] 5/12/24 V DC, 7…10 mA |
|
| อินพุตพัลส์ | 1-phase pulse input (x1, x2), CW/CCW, 2-phase (x1, x2, x4) | |||
| Counting ความเร็ว (max.) | 200 kpps | 4 Mpps | [Differential input]…8 Mpps [DC input]…200 kpps |
|
| ฟังก์ชัน |
|
|
|
|
Multi-ฟังก์ชัน จำนวนer/timer โมดูล (QD65PD2)
-

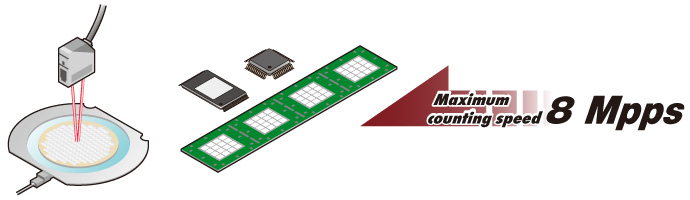

Perform extremely accurate position tracking
Counting ความเร็ว up to 8 Mpps (4 multiples of 2 phases)
-
Multiple ฟังก์ชัน designed for ease of use
- Pulse measurement ฟังก์ชัน
- With a resolution of 100 ns, it is possible to perform highly accurate pulse measurement.
- PWM output ฟังก์ชัน
- Precisely control PWM output up to 200 kHz. With a resolution of 0.1 µs, superfine control of the duty cycle is possible.
- Cam switch ฟังก์ชัน
- Configure up to 16 cam settings and use up to 8 dedicated outputs. The cam switch ฟังก์ชัน enables highly accurate timing การควบคุม.
-
Perform sophisticated การควบคุม using coincidence detection
The coincidence output ฟังก์ชัน allows complex applications to be supported. Depending on the situation, either the cam switch ฟังก์ชัน or the coincidence output ฟังก์ชัน can be used.
อินพุตพัลส์แบบแยกช่อง โมดูล
- อินพุตพัลส์แบบแยกช่อง โมดูล
This โมดูล is appropriate for the measurement of input pulse จำนวนs (related to ความเร็ว, revolution, instantaneous flow rate, etc.) and the measurement of quantities (length, cumulative flow, and so forth). The QD60P8-G operates on a 10 ms การควบคุม cycle, thus the minimum value refresh time is 10 ms. The จำนวน cycle setting can be changed to the desired time for cumulative จำนวน values and moving average pulse จำนวนs (sampling pulse จำนวนs).
| QD60P8-G | ||
|---|---|---|
| จำนวนช่อง | 8 channels | |
| Count input signal | เฟส | 1-phase input |
| Signal level | 5 V DC/12…24 V DC, ≥ 4 mA | |
| อินพุตพัลส์ | 1-phase pulse input | |
| Counting ความเร็ว (max.) | 30 k/10 k/1 k/100/50/10/1/0.1 pps | |
ไลน์อัป
| จำนวนช่อง | Maximum จำนวนing ความเร็ว | Channel isolated | อินพุต specifications | ||||
|---|---|---|---|---|---|---|---|
| 5 V DC | 12 V DC | 24 V DC | Differential drive output | ||||
| 2 | 2-phase input | 200 kpps | — | QD62 QD62E QD65PD2 |
— | ||
| 500 kpps | — | — | — | QD62D | |||
| 4 Mpps | — | — | — | QD64D2 | |||
| 8 Mpps | — | — | — | QD65PD2 | |||
| 6 | 2-phase input | 200 kpps | — | QD63P6 | — | — | — |
| 8 | 1-phase input | 30 kpps | ● | QD60P8-G | — | ||
