คุณสมบัติของผลิตภัณฑ์ -CPU-

User-friendly

Easy logging without a program

Save collected data in CSV format on an SD memory card just by completing easy settings with the dedicated setting tool wizard. Various reference materials including daily reports, form creation and general reports can be created easily within the saved CSV file. This data can be used for a wide variety of applications requiring traceability, production data, etc.

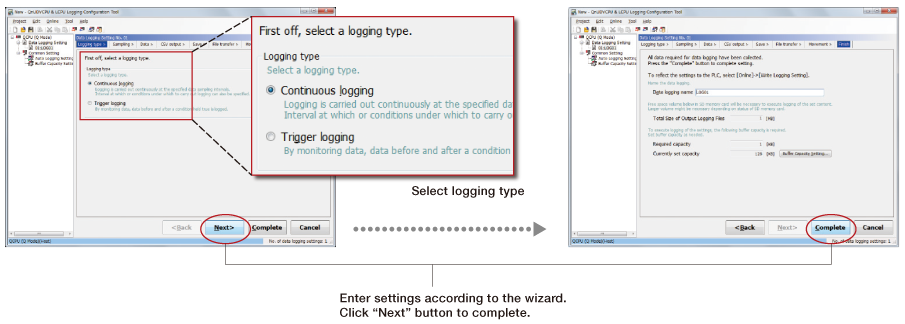

■ Setting with Wizard screen

Logging of การควบคุม data variances

Data is collected during each scan or within millisecond intervals allowing detection of การควบคุม deviation even at very high ความเร็วs. Therefore, identification of errors can be conducted faster and in more detail.

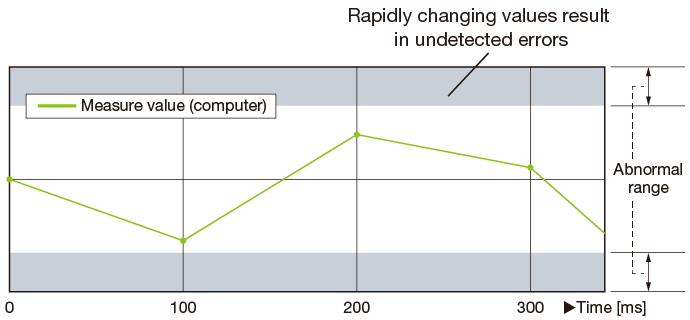

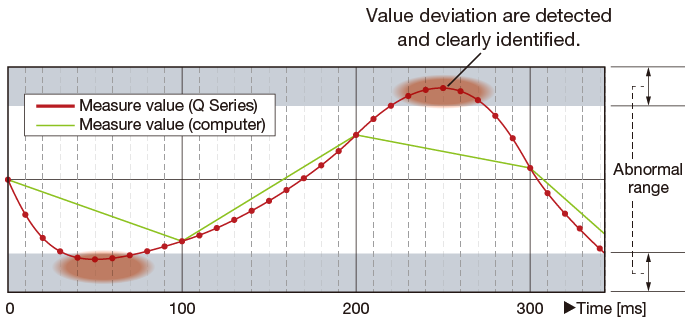

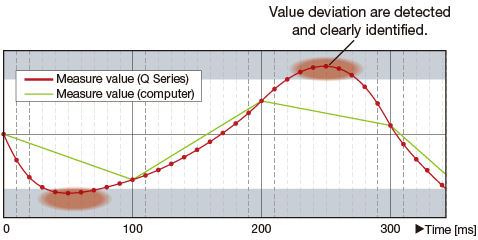

■ Generic sample data from a computer or external device at 100 ms intervals

■ Q Series CPU data logging function is capable of sampling data at much higher intervals as to detect fast changing values.

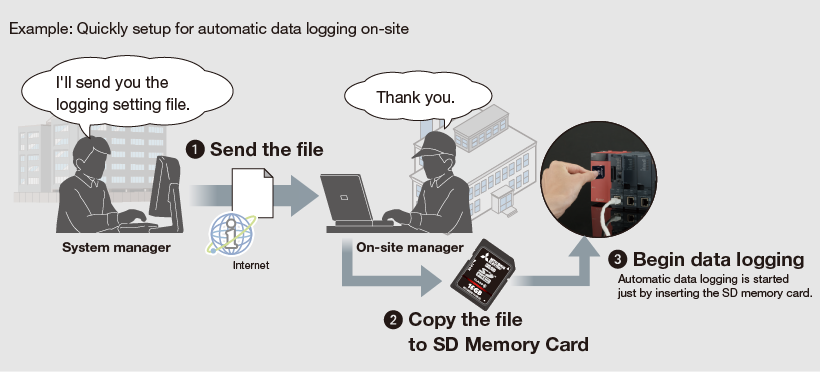

Automatic logging just by using an SD memory card

Automatic data logging realized just by inserting the SD memory card into the CPU, which is achieved as the memory card includes the logging configuration file. Instructing data logging remotely is also realized just by sending the configuration file by e-mail and copying onto the SD memory card.

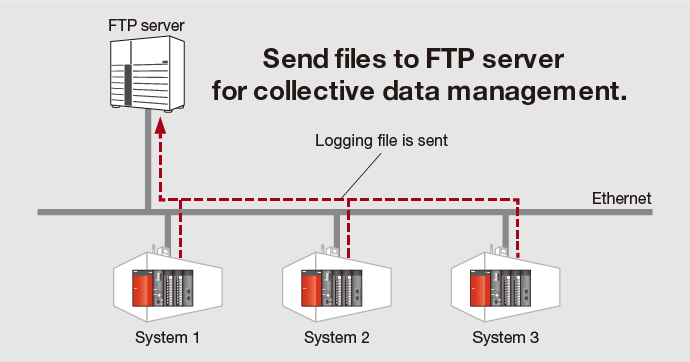

Automatically send logging files to FTP server

Data logging files stored on the SD memory card can be sent to FTP server just by making a simple setting with the Logging configuration tool.
As the logging server can handle multiple files, management and maintenance tasks can be reduced.

File transfer feature

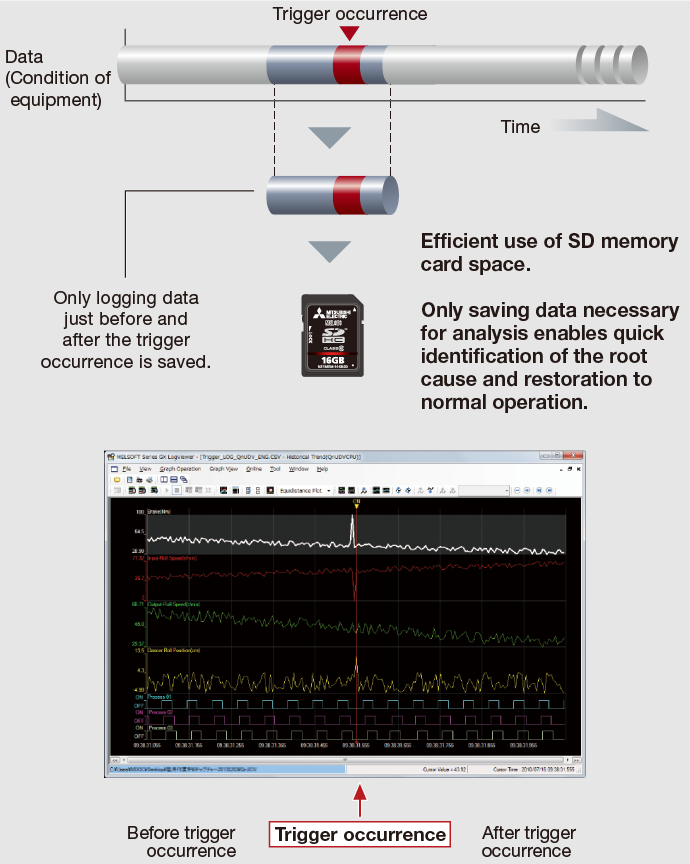

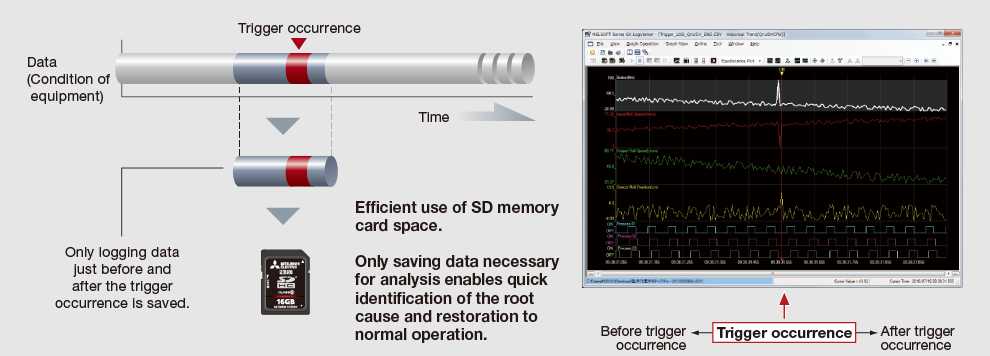

Quick troubleshooting response

Error causes and solutions can be quickly done as only the required data related to the problem is extracted, without having to spend time on filtering large volumes of diagnostic data.

• *1.For details of GX LogViewer, please click here.
• *2.The logging configuration tool is enclosed with GX Works2.

User-friendly

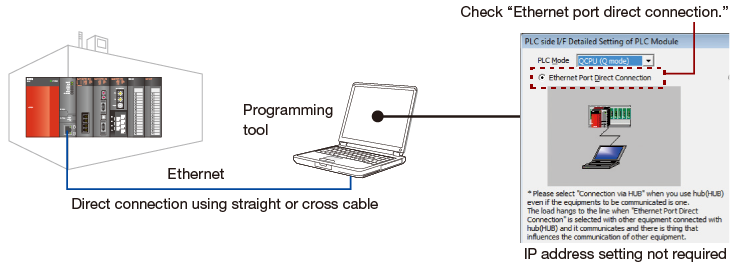

Easily connect to CPUs via Ethernet

IP address settings are not required to connect to CPU modules directly (one-to-one connection) using GX Works2 or GX Developer. Both straight and cross cables can be used, and are automatically identified by the CPU module. Therefore this connection method is as easy as using USB. Even operators who are not familiar with network settings can easily establish a connection.

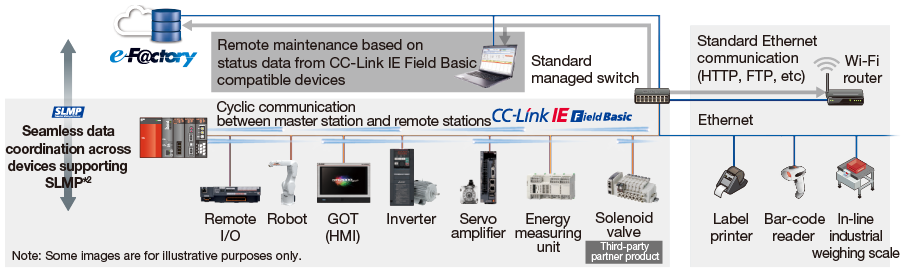

CC-Link IE Field Network Basic does not require network โมดูล

Programmable การควบคุมler CPUs with an embedded Ethernet port can be used as a master station ^*1, eliminating the need for an additional network โมดูล. The network can be configured with a minimum number of โมดูล reducing space and hardware cost.

• *1.Only supported by ความเร็วสูง Universal model QCPU and Universal model process CPU.
• *2.SLMP:Seamless Message Protocol

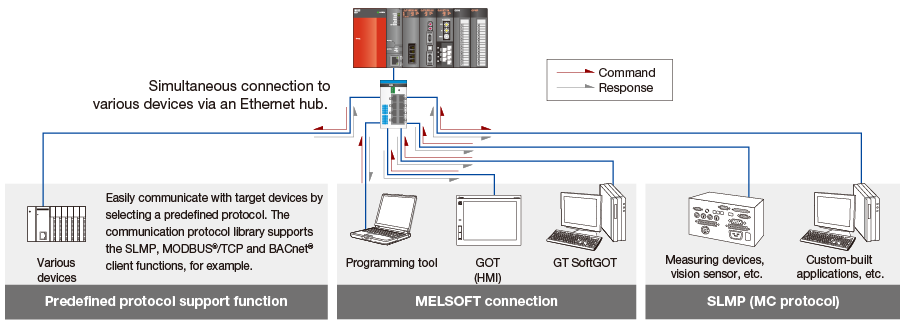

<span>Easily connect to BACnet <sup class="vis">® </sup> and MODBUS <sup class="vis">® </sup> /TCP </span>

Ethernet realizes a high-ความเร็ว connection, such as communication with external อุปกรณ์s.
By using predefined protocol support ฟังก์ชัน ^*3, various อุปกรณ์s that require open network protocol support, such as BACnet ® and MODBUS ®/TCP are supported.

• *3.Only supported by ความเร็วสูง Universal model QCPU and Universal model process CPU.

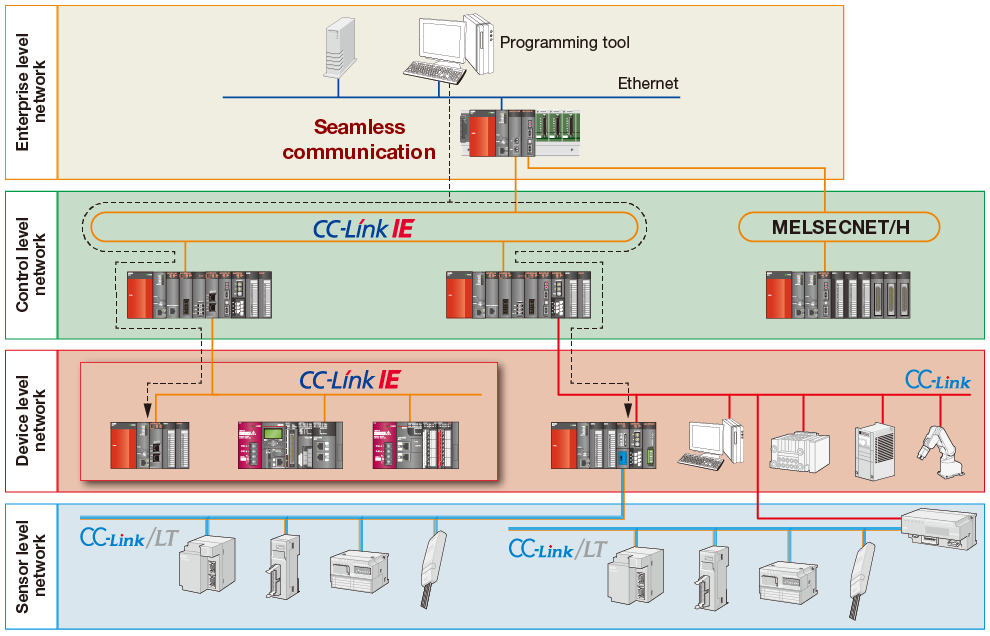

Seamless communication across all layers

The Universal model QCPUs support a multitude of networking technologies including the high-ความเร็ว, high-capacity CC-Link IE Controller เครือข่าย and CC-Link IE Field Network. Along with MELSECNET/H, Ethernet, and CC-Link, these networks may be accessed seamlessly beyond network ชนิด or hierarchy. Each programmable การควบคุมler on the network can be accessed for programming and maintenance duties by using a personal computer with the appropriate engineering tools connected via Ethernet.

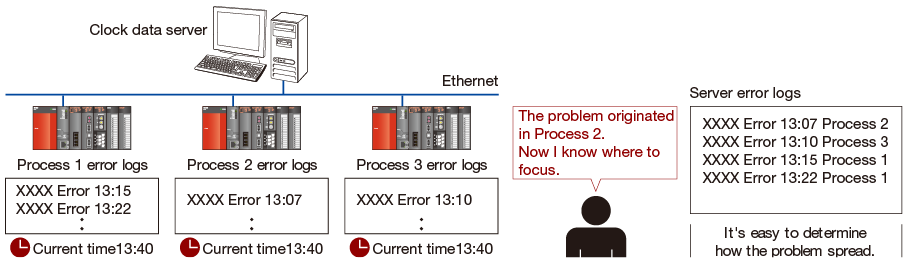

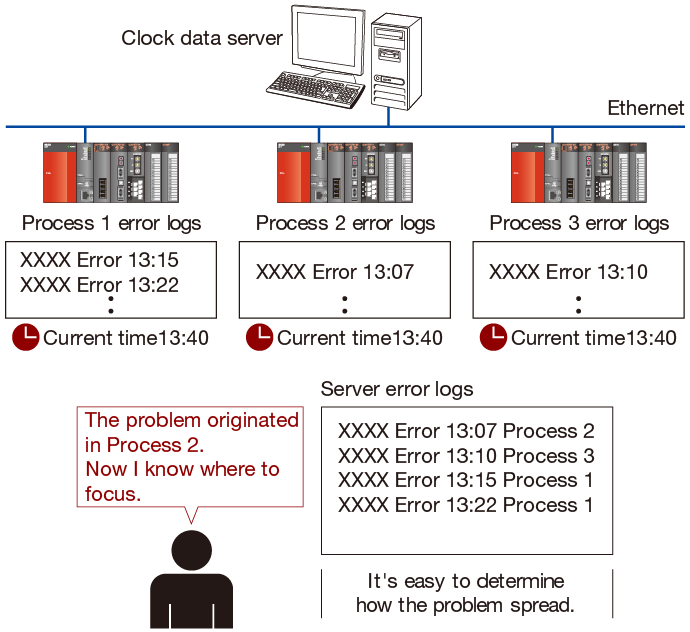

Accurate clock data

The CPU โมดูล's clock is automatically corrected with the SNTP ^*4 clock synchronization ฟังก์ชัน. When CPU clock data is reliably synchronized between systems, any time-stamped events or errors that involve more than one CPU can be easily understood in terms of their order of occurrence and relationship.

• *4.SNTP Simple เครือข่าย Time Protocol

Program-less อุปกรณ์ data transfer

Simple PLC ฟังก์ชันการสื่อสาร ^*5
Using the programming tool, a simple parameter setting is all that is needed to transfer อุปกรณ์ data such as production information with no programming required.
This ฟังก์ชัน makes it possible to easily establish communications not only with Q Series, but also MELSEC iQ-R Series, iQ-F Series, L Series and QnA/A Series การควบคุมlers.

• *5.QnUDVCPU or QnUDPVCPU module whose first five serial number digits is “20042” or later is required.

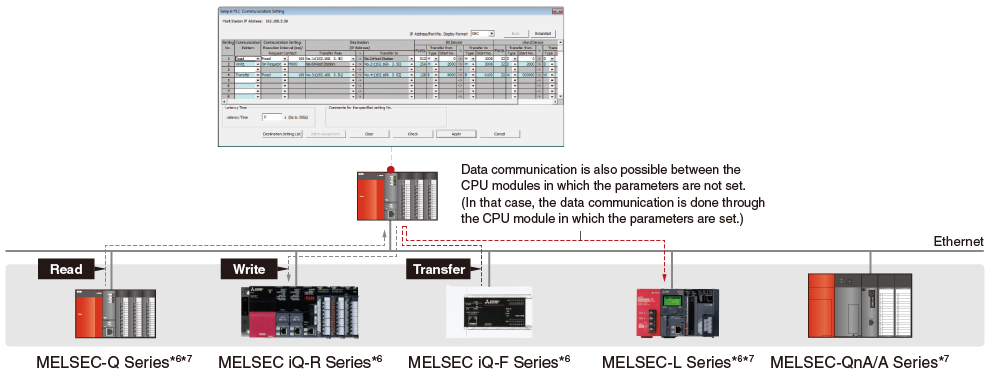

■ Simple PLC Communication Setting

• *6.ในตัว Ethernet port CPU is supported.
• *7.CPU โมดูล and Ethernet interface โมดูล are supported.

Sampling trace ฟังก์ชัน ^{^*8}

The sampling trace ฟังก์ชัน is a useful diagnostic tool for analyzing error data, and sequence of events for program debug, etc. It can help reduce the overall time required for startup and commissioning of equipment.
In the multiple CPU configuration it can help to determine the timing and transfer of data between CPU โมดูล. Collected data can be easily analyzed within the programming software tool with differences in word อุปกรณ์ and bit อุปกรณ์ values conveniently shown in chart and graph form.
In addition, the results from sampling trace can be exported to GX LogViewer CSV file format for analysis within the software.

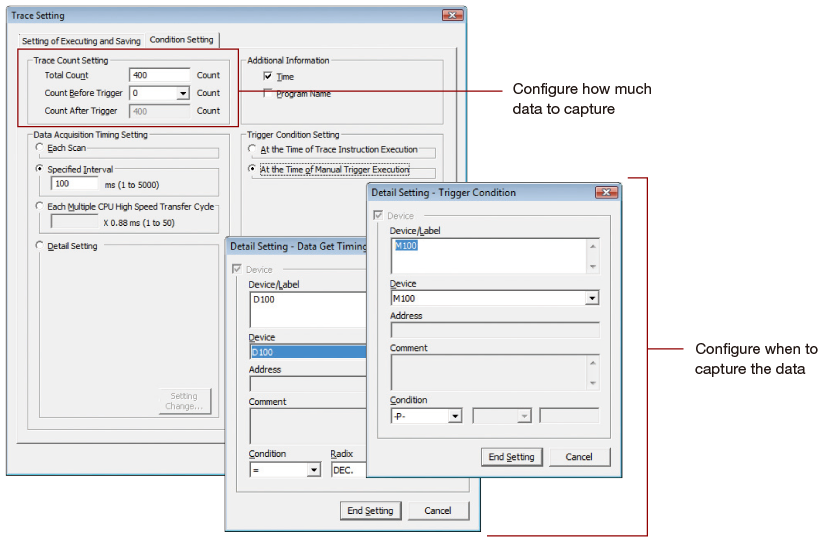

Sampling trace execution condition settings

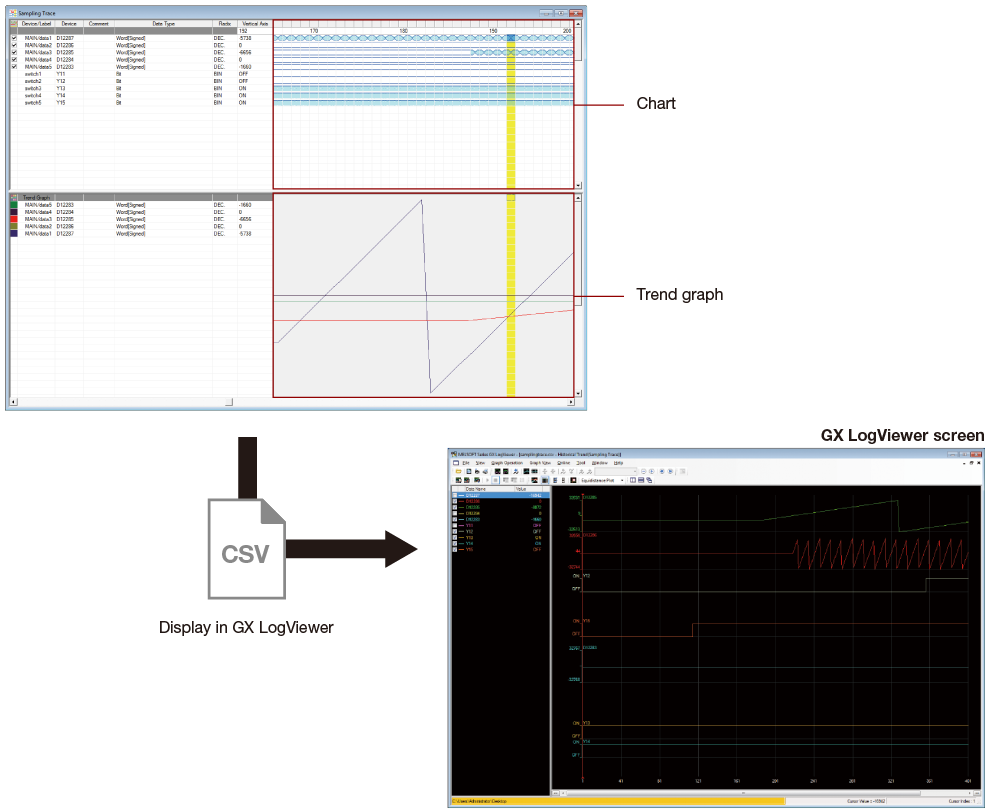

Sampling Trace window: example results

• *8.Not supported by Q00UJ.

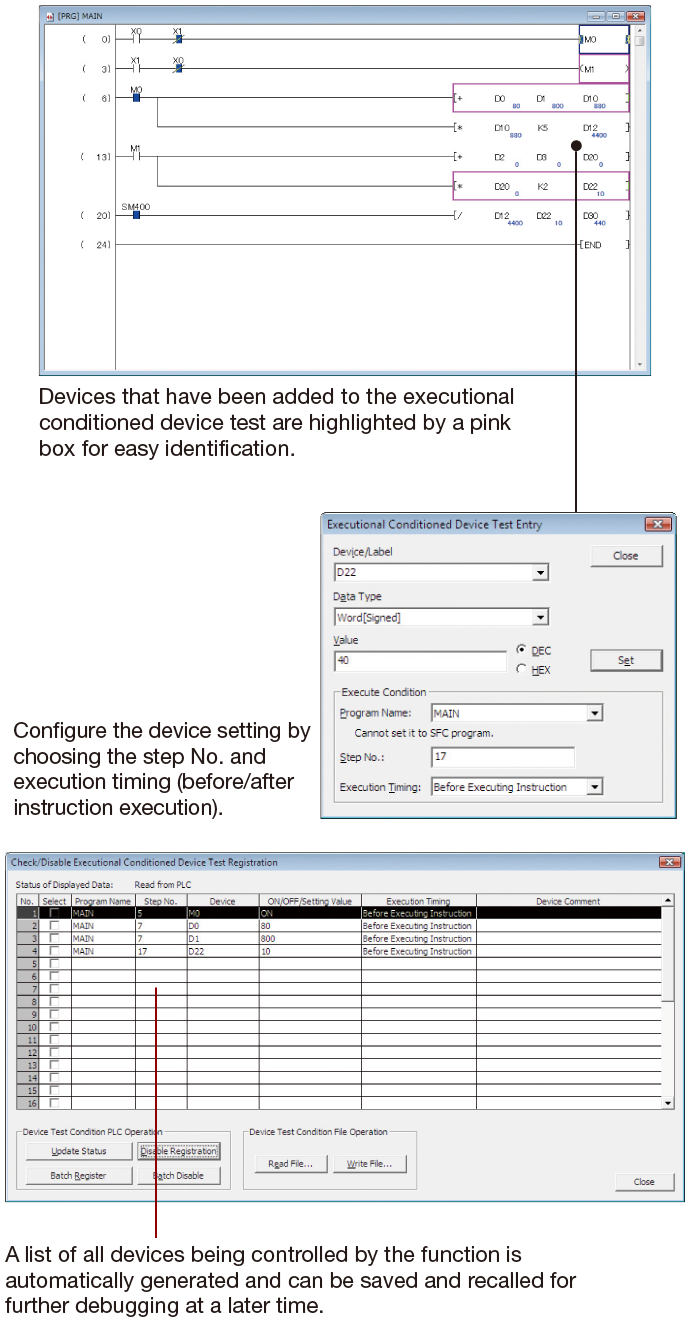

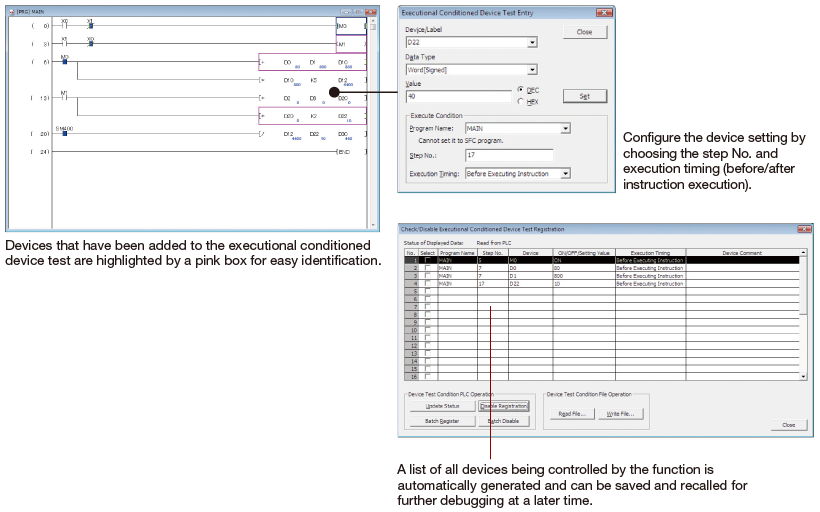

Debugging process

Universal model CPUs have the ability to use the “Executional conditioned device test” function, which automatically sets device values to user specified values at any step during program simulation. Traditionally, to simulate real I/O or other device value change, a separate program would need to be written to perform debugging. By using the “Executional conditioned device test” function, it is possible to debug even small portions of simple ladder programs without the need to modify the program or add rungs of ladder. Therefore, debugging can be completed faster and easier.

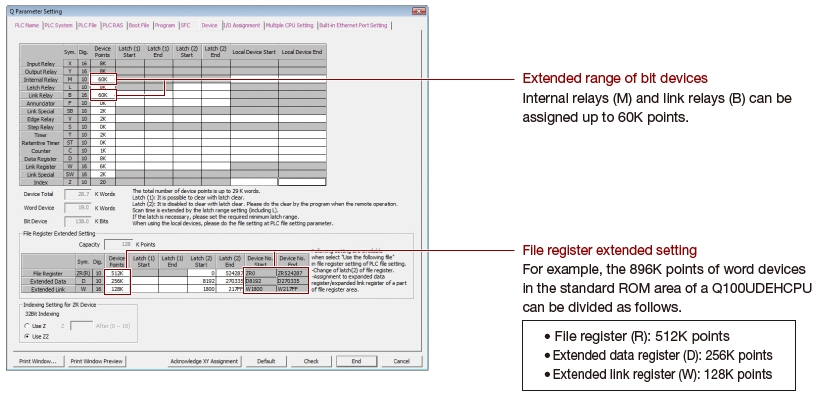

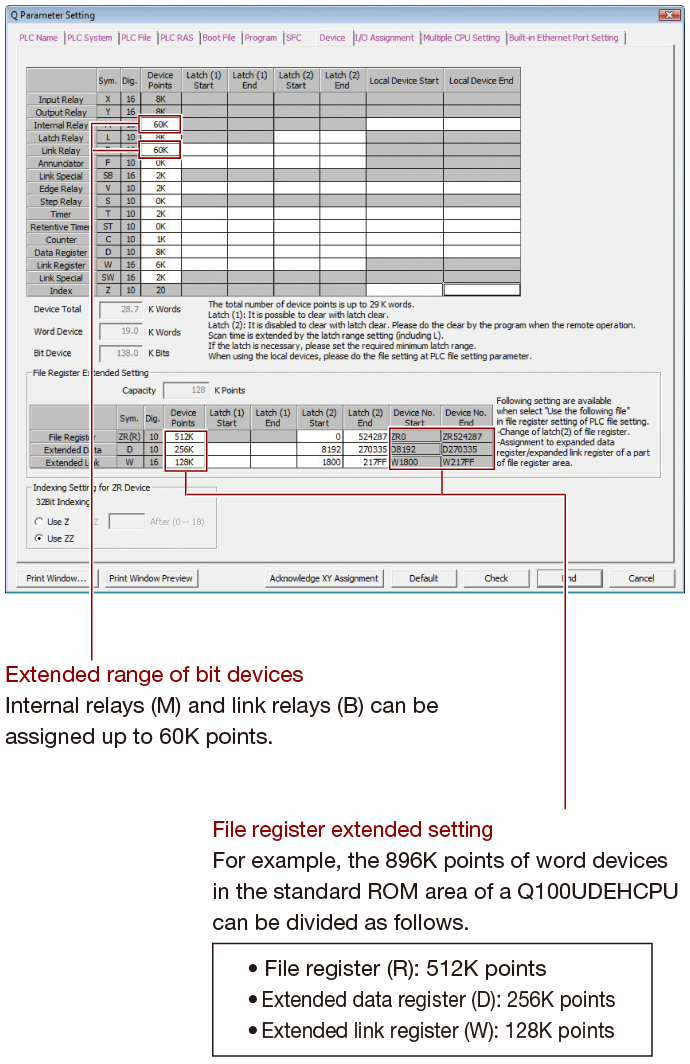

Device point assignment

Extended ช่วง of bit อุปกรณ์s
Bit อุปกรณ์s, internal relay (M) and link relay (B), can now be assigned up to 60K จุด each. Previous models are limited to 32K จุด.
The total number of อุปกรณ์ จุด remains the same, however greater flexibility of อุปกรณ์ utilization and programming is achieved.

File register extended setting: data registers and link registers ^*9
The number of Data Register (D) and Link Register (W) อุปกรณ์ จุด can be extended using standard ROM or a memory card. Previous models only allow the extension of File Register (R/ZR) อุปกรณ์ จุด. Using this setting, it is easy to create more data or link registers to accommodate program changes, etc.

• *9.Not supported by Q00UJ.
